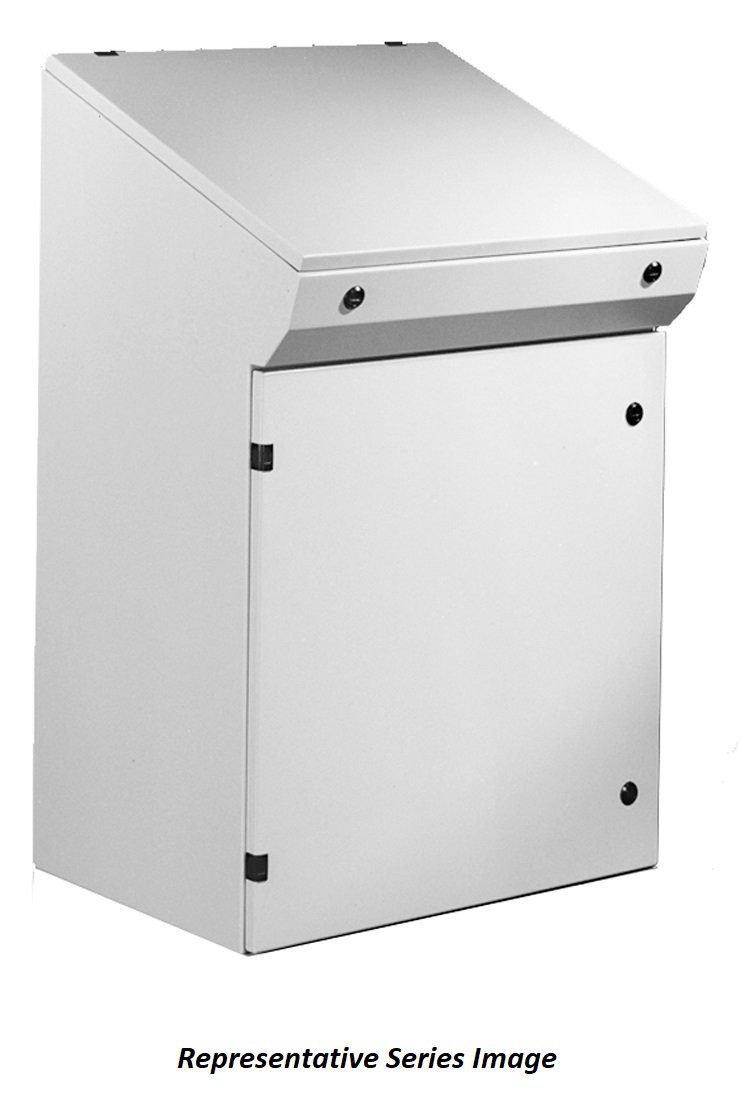

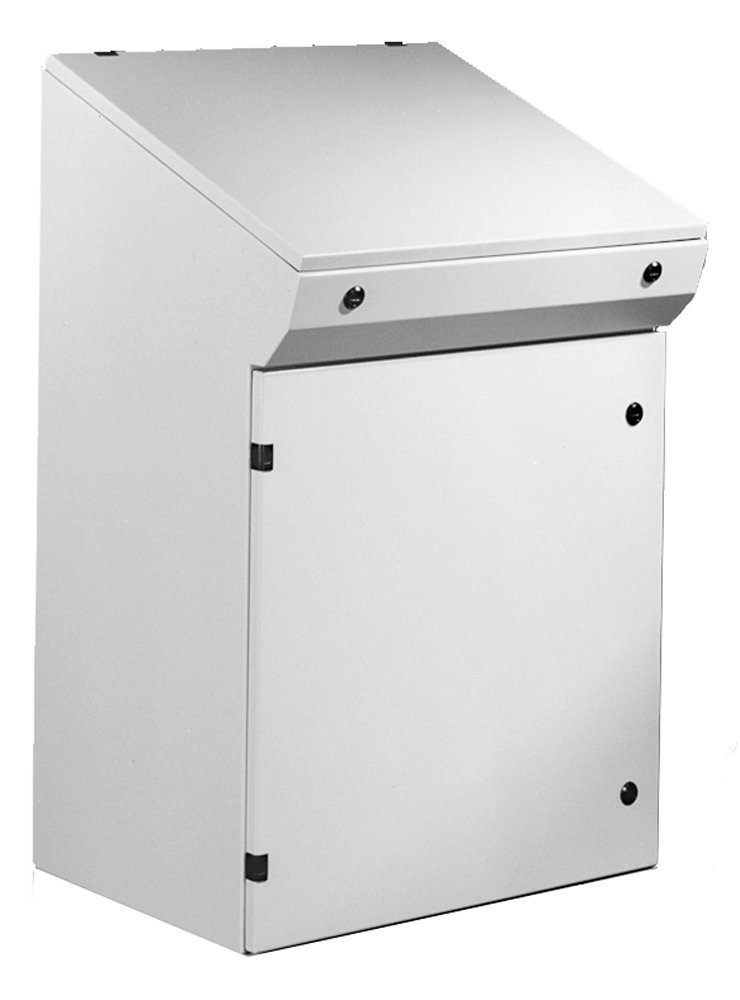

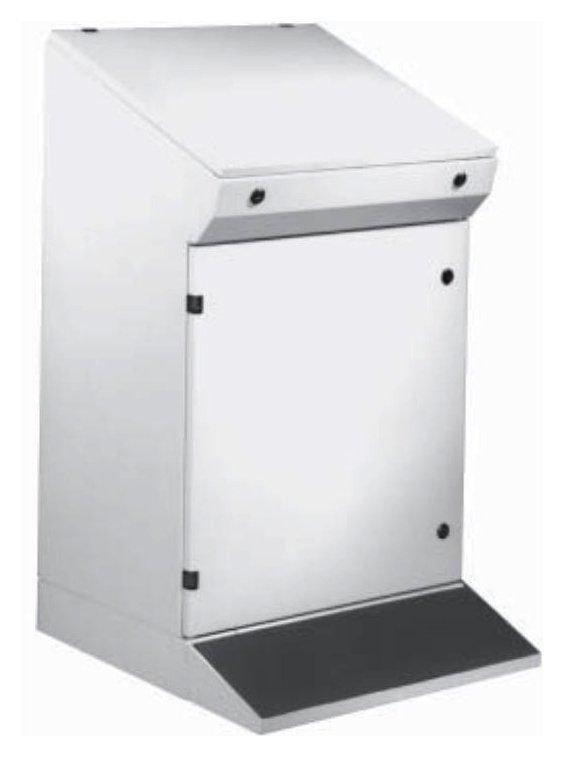

Hammond S2CC – Type 4, 4X Mild Steel and Stainless Steel Consolet; Modular Console System

Standards

• UL 508A Type 3R, 4,12 (Stainless Steel, add 4X)
• CSA Type 3R, 4, 12, 13 (Stainless Steel, add 4X)
• EIA RS-310-E
• Complies with
• NEMA Type 3R, 4, 12 (Stainless Steel, add 4X)
• IEC 60529, IP66

Application

• Serves as an economical housing for operator interface applications.
• Provides an ideal sloped surface for mounting keyboards, switches, indicator lights, and/or dials.
• Provides panel mounting capabilities for a variety of applications. Generally used as a stand-alone enclosure. Possible to put side by side with base on a single plinth (ie. 36″ wide consolet with 24″ base with terminal all together on a 60″ plinth.
• Optional casters (require plinth) allow for a completely mobile, NEMA rated workstation.
• Smooth lines and clean edges provide an attractive, contemporary appearance.

Construction

• Formed 14-gauge steel bodies with 14-gauge steel door and lid.
• Also offered with formed 14-gauge 304 stainless steel bodies with 14-gauge 304 stainless steel door and lid.
• Smooth, continuously welded seams without knockouts or holes.
• Body stiffeners are provided where required for increased strength and rigidity.
• Offered in 4 widths 24″, 36″, 48″ and 60″.

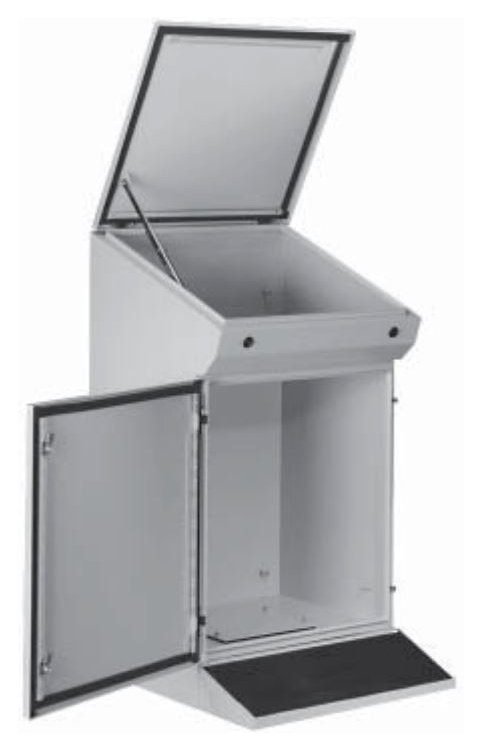

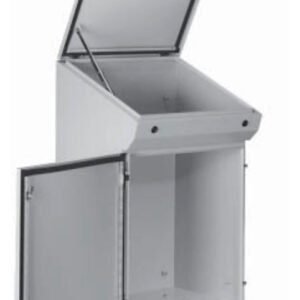

• Has solid sides and back, solid door on front, 3-point adjustable lid on sloped (20°) top, and closed bottom with removable access panel.
• 24″ and 36″ widths have single door on the front whereas 48″ and 60″ widths have two outside hinged doors on the front.
• Doors can be hinged from either side on 24″ and 36″ units.
• Door profiles provide increased strength and are pre-punched to provide mounting options.
• Formed lip on enclosure excludes flowing liquids and contaminants.
• Slotted quarter turn oil-tight latches secure the door and lid, with optional tamper resistant and locking latches available.
• Stainless steel models utilize stainless steel hardware.
• Oil resistant gaskets are permanently secured.
• Features internal stud locations for mounting optional inner panel.
• A bonding screw is provided on the door and a grounding stud is provided in the enclosure.

Finish

• Available in RAL 7035 light gray textured powder coating and natural stainless steel with a smooth, brushed finish.

Units shown: inch.
