Description

Hammond XFFFB
Standards
- UR/CUR/CE approved fan motors.
- CSA listed on fan only.
105-550 CFM Filtered Fan Boxes
Description
- In a typical cooling arrangement, the filtered fan box pulls air into the enclosures and the filter grill is used as an air outlet.

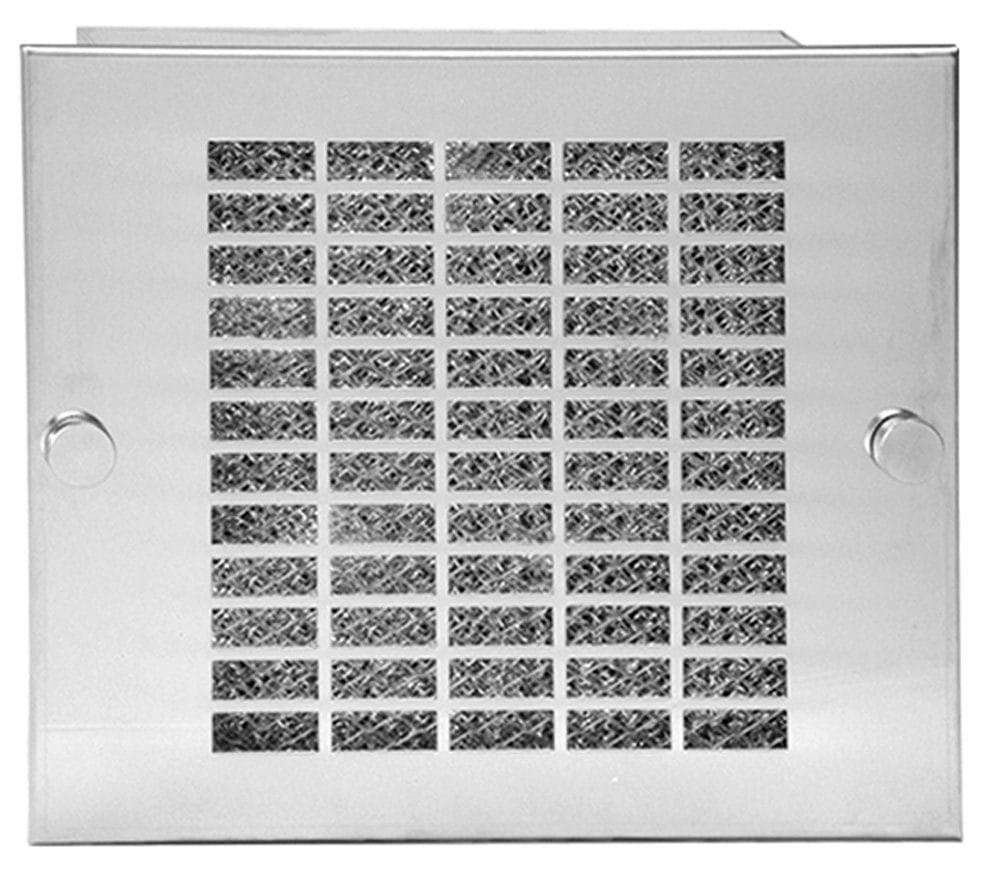

- The washable aluminum filter grill and the air filter are easily accessible and can be removed for cleaning.
- The filtered fan boxes are available in either 115 VAC or 230 VAC, 50/60 Hz.
- Filtered passive ventilation can be provided by an exhaust filter for either convection cooling or in combination with a fan in forced air cooling.
Features
- 115 VAC or 230 VAC, 50/60 Hz.
- 12″ lead wires.
- Exceptionally quiet operation.
- Versatile mounting and adaptability.
- Heavy-gauge steel construction.
- Attractive stainless-steel grills.
- Shipped with air flow to pressurize. Can be user modified to exhaust.
- Aluminum filter is coated with adhesive baffle surfaces for dust and dirt collection. Can be recoated after cleaning for optimum performance.
- Drilling template included.
- Note: One grill and filter are included with each fan package. Normally, an additional exhaust grill and filter are required for each installation and must be ordered separately.
| Free Flow Air Delivery | RPM | Running | |||
| Part No. | (CFM) | Volts | Nominal | Amps | Watts |
| XF4115 | 105 | 115 | 3000 | 0.18 | 15 |
| XF4230 | 105 | 230 | 3000 | 0.09 | 15 |
| XF6115 | 220 | 115 | 3000 | 0.29 | 33 |
| XF6230 | 220 | 230 | 3000 | 0.15 | 33 |
| XF10115 | 560 | 115 | 3000 | 0.87 | 60 |
| XF10230 | 560 | 230 | 3000 | 0.45 | 60 |
