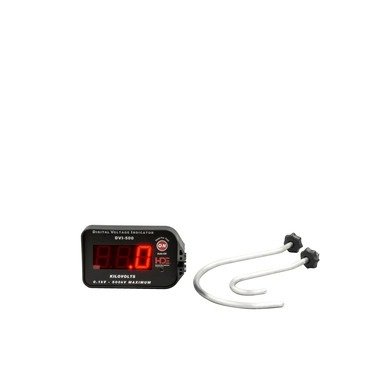

HDE DVI-500 – Digital Voltage Indicator 500kV

• Measures voltage up to 500kv line-to-ground
• Voltage readout distinguishes between nominal and induced voltages
• Audible indication when voltage is detected
• Test Point mode available (DVI-500T model)
• Auto-shutoff and low battery indication features

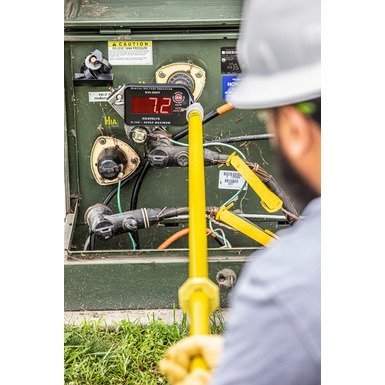

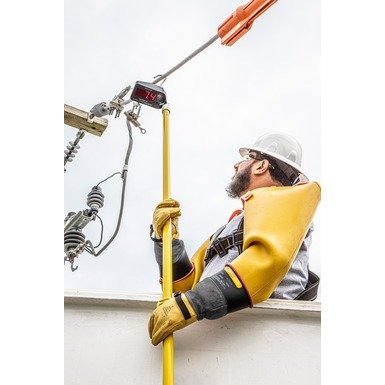

• Versatile for overhead and underground applications

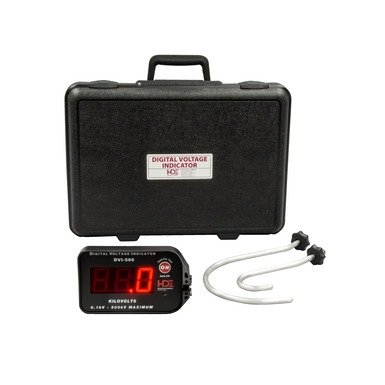

Indicates Voltage up to 500kV For use on system voltages up to 800kV (reads up to 500kV line-to-ground). No range selector switch or settings are required. The large LED display indicates the line-to-ground voltage level Display is easy to read in bright or dark conditions. Voltage readout allows the user to distinguish between nominal and induced voltages Audible indication when voltage is detected Measure elbow test points with the DVI-500T Built-in universal spline for standard hot stick attachment Built-in self-test to verify proper operation Auto shutoff with low battery function Powered by a field-replaceable 9V lithium or alkaline battery Compact, rugged and lightweight polycarbonate housing Kits are available, contact factory for details.
