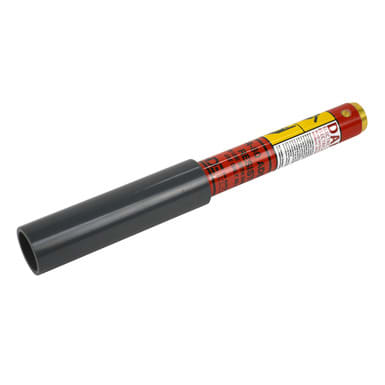

HDE DVM-80/K02 Dual Stick Phasing Voltmeter Kit

HDE DVM-80/K02 Dual Stick Phasing Voltmeter Kit

The DigiVolt-80 products are compact, high accuracy digital voltmeter and phasing instruments designed to measure voltages up to 40kV and up to 80kV when used with a pair of add-on resistors. The two-stick design can be used in both overhead and underground applications. The digital meter displays the true RMS voltage on the conductor.

The DVM-80 units in corporate Phase Accurate Technology which makes all voltage readings, whether made from line-to-line or line-to-ground, accurate and repeatable to within 1%. The DVM-80 products are the only digital high voltage meters to include this technology for high accuracy voltage measurements.

The DigiVolt-80T includes an elbow test point mode, which is displayed by a blinking decimal point. Simply press the ON button to activate and de-activate this feature.

Applications

• Measure voltage and phase conductors on both overhead and underground systems
• Verify a conductor is de-energized prior to grounding
• Determine if multiple conductors are in-phase or out-of-phase
• Test underground cable for faults (optional Cable Fault Tester and bushing probes required)
• Discharge underground cables and other equipment that hold capacitive charges
• Test point mode on DVM-80T allows measurements and phasing on elbow test points
