HDE DVM-80UVM – Dual Stick Phasing Voltmeter with Peak Hold and Capacitive Test Point Mode

• Measures voltage and performs phasing operations from 50V to 40kV and up to 80kV with add-on resistors
• Provides consistent high accuracy voltage measurements – within 1% of reading
• Auto-ranging – no settings required
• Capacitive Test Point and Peak Hold modes
• Auto-shutoff and low battery indicator features

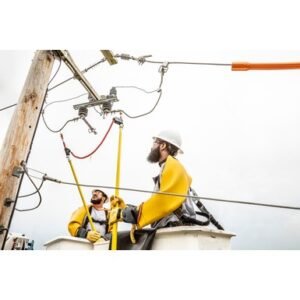

• Versatile for overhead and underground applications

Dual Stick Phasing Voltmeter with Peak Hold and Capacitive Test Point Modes Peak Hold mode Triple auto ranging 3.5 digit display – reads in kilovolts from 5 Volts to 80kV Highly accurate, within 1% of the reading Backlit display for easy reading in bright or dark conditions Measures AC and DC voltages Use on secondary voltages, starting at 5 Volts Measure voltage on elbow test points, meter will display the system voltage Test underground cables for faults Auto shut-off Powered by a 9V lithium or alkaline battery in an easy to change battery case – no tools required Voltmeter weights 2.25 lbs.
