HDE HVA-2000 – High Voltage Ammeter 2000A

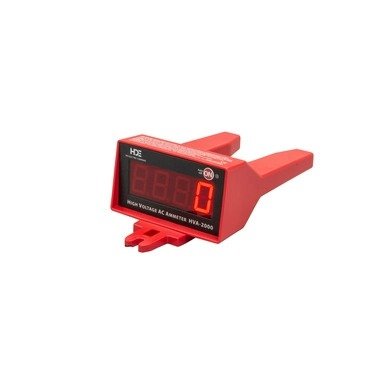

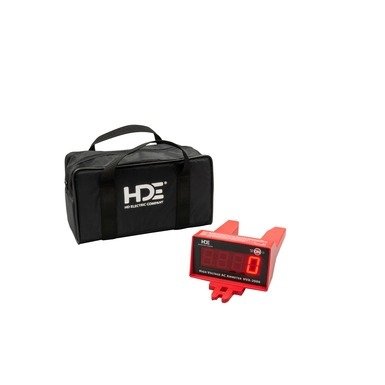

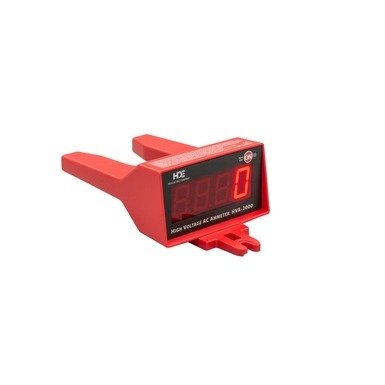

HDE HVA-2000 Series High Voltage Digital Ammeter

The HVA-2000 is a high voltage digital ammeter designed for taking True RMS AC current measurements up to 2000 amps, 25-500Hz. The HVA can be used on system voltages up to 500kV.

Equipped with the capability of taking spot-load studies at transformers or any mid-span location, as well as phase balance studies on primary or secondary lines, all within an accuracy of 1%.

High Voltage Digital Ammeter

The High Voltage Digital Ammeter, HVA-2000, measures line current on overhead and the underground secondary voltage, distribution voltage, and transmission voltage distribution systems up to 500kV.

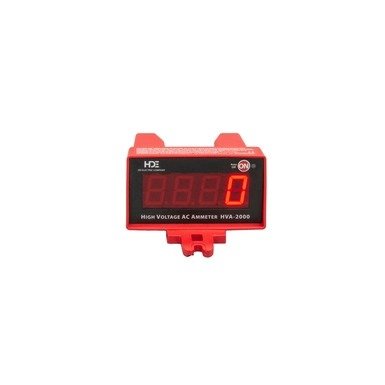

The HVA-2000 measures current from 1 Amp up to 2000 Amps and the current is displayed in the large easy to read four-digit display.

The HVA stores the four most recent current readings, typically three individual phase currents and a neutral current for easy review after making measurements.

The initial factory default mode is Peak Hold, which displays the peak RMS current measured while the Ammeter is placed on a conductor. Peak Hold mode allows a user to capture and store the peak current over the period of time the Ammeter is applied to a conductor.

The second available mode is Real-Time which displays the current as it normally rises or falls. Real-Time mode allows the user to see changes in load current as they occur.
