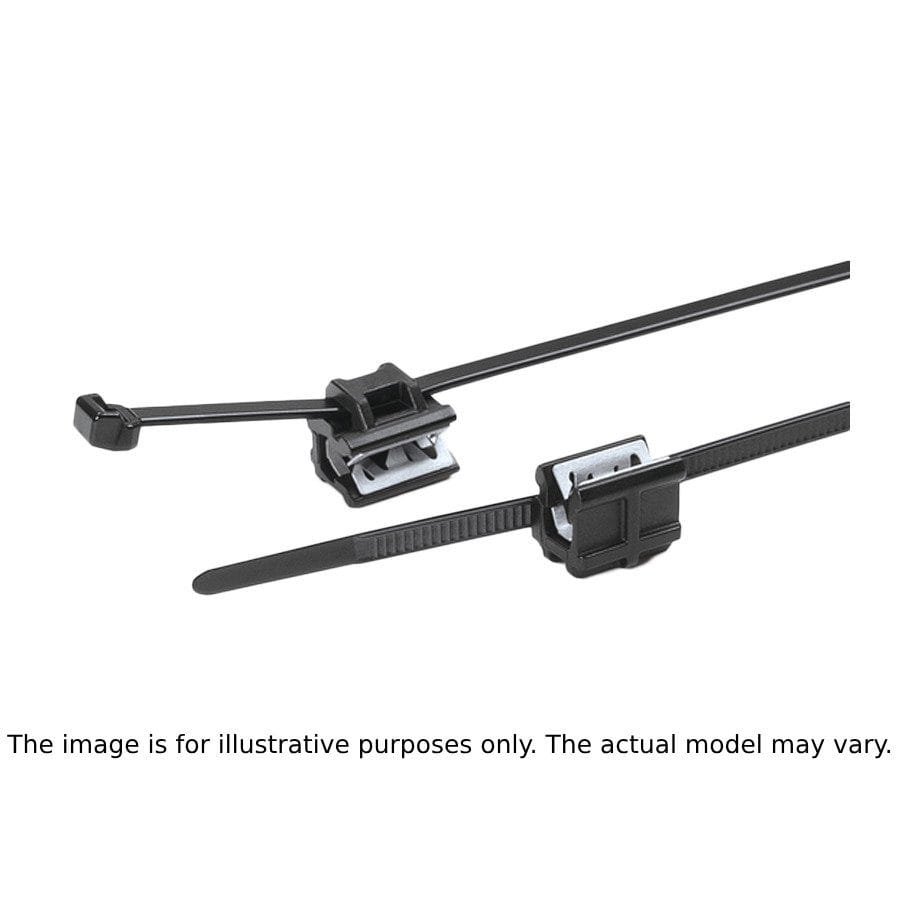

HellermannTyton 156-01797 – Cable Tie/Edge Clip, 5.7″L, Parallel, 30lb, PA66HS/PA66HIRHS, Black
44 people are viewing this product right now
$434.50
Shipping calculated at checkout.
Estimated delivery:3 days
Cable Tie/Edge Clip, 5.7″L, Parallel, 30lb, PA66HS/PA66HIRHS, Black-Note:Price is for 500 Units
- Color: Black
- Height: 0.05″
- Length: 5.7″
- Bundle Diameter: 0.06 ” Min | 1.38 ” Max
- Material: Polyamide 6.6 heat stabilized (PA66HS);Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)
- Low-profile clip attaches easily to plastic and metal edges as thin as 0.5 mm and up to 2.5 mm without the need for a mounting hole
- Two designs allow bundles to be secured parallel or vertical to surface edges
- Provides low insertion force and high extraction force – ideal for assembly environments
- Two-piece assembly allows the mount to slide along the strap, ensuring proper orientation
- Cable tie is outside serrated to reduce bundle chafing
Guarantee Safe and Secure Payment Checkout
Description
HellermannTyton 156-01797
- Color: Black
- Clip Type: Parallel
- Length: 5.7″
- Bundle Diameter: 0.06 ” Min | 1.38 ” Max
- Material: Polyamide 6.6 heat stabilized (PA66HS); Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)
Cable Tie/Edge Clip, 5.7″L, Parallel, 30lb, PA66HS/PA66HIRHS, Black
HellermannTyton’s Two Piece Edge Clip with Cable Tie Assemblies are designed specifically to route bundles by securing them to the edge of a plastic or metal sheet without the need for a mounting hole. The clip is easy to secure and the extraction force is high due to the integrated metal clamp that holds the edge clip in place.
Application
These cable ties and EdgeClip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail. These assemblies are widely used for fixing and bundling cables, pipes, and hoses within the automotive industry, harness-making, panel building, and electrical industry. These EdgeClips are specially designed for applications where space is limited such as in mirrors and headlights.
Product General Attributes | |
|---|---|
| Safety Approval | RoHS, UL |
| Product Height | 0.05 IN |
| Product Length | 5.7 IN |
You must be logged in to post a review.
Manuals/Guides
Spec SheetsOther
| Dimensions | 5.7 × 0.05 in |
|---|
