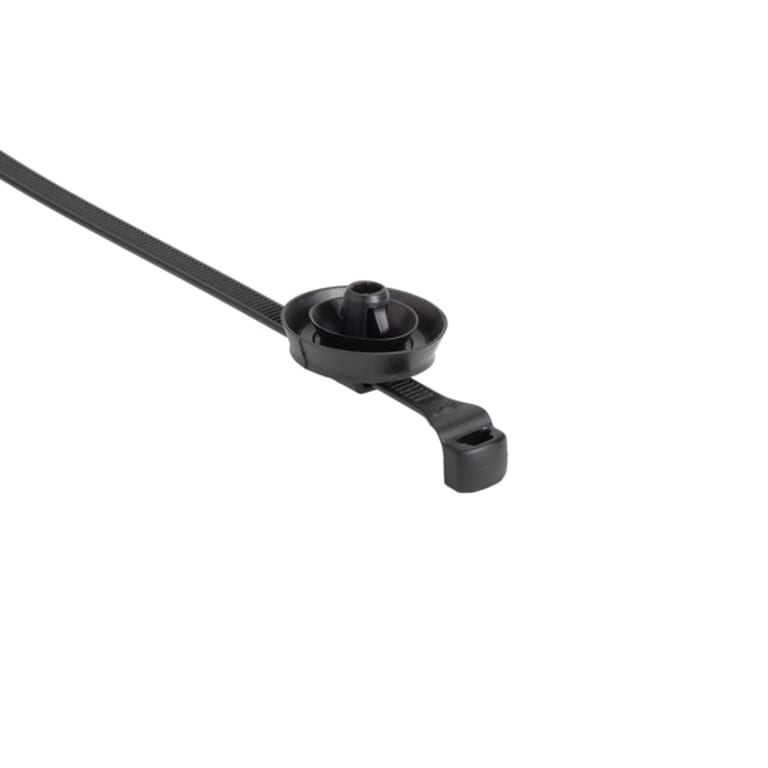

HellermannTyton 156-03941 – 2-Pc Low Profile Cable Tie/Arrowhead w Seal, 0.02 – 0.04″ Panel, Black

• Color: Black
• Height (H): 0.52″
• Length (L): 7.7″
• Min.Tensile Strength: 225.0N
• Panel Thickness max.: 0.6 – 1.1mm
• Material: Polyamide 6.6 heat stabilized (PA66HS) Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)

HellermannTyton sealed arrowhead mount and tie are constructed of engineered nylon with a dual TPE (thermoplastic elastomer) seal. The combination of dual seal and engineered arrowhead provides superior sealing performance for applications where protection from moisture and debris is essential. Low-profile cable tie features a compact, contoured head designed to use less space in confined areas and reduce protrusions that might otherwise interfere with or damage adjacent wire insulation and hoses. The outside serration provides a smooth inside surface to further minimize indentation or damage to soft bundles while offering high tensile strength and low insertion force. This mount is sold as an assembly with the cable tie.

Application:

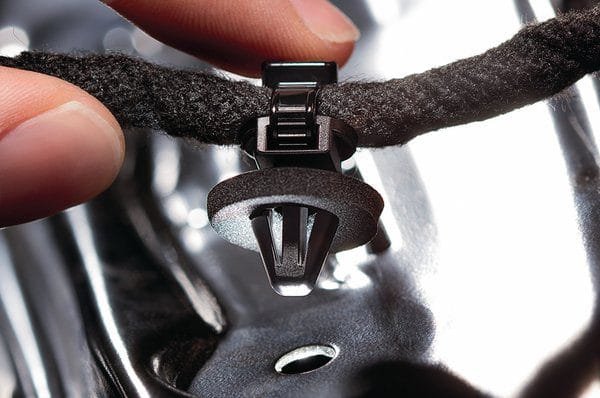

The parts are mainly used in the automotive industry. This fastening solution is used to secure cable harnesses e.g. in car doors. We offer a variety of panel thicknesses and hole sizes to suit all kinds of applications. The seal protects the interior and surrounding cables among other things from splash water.
