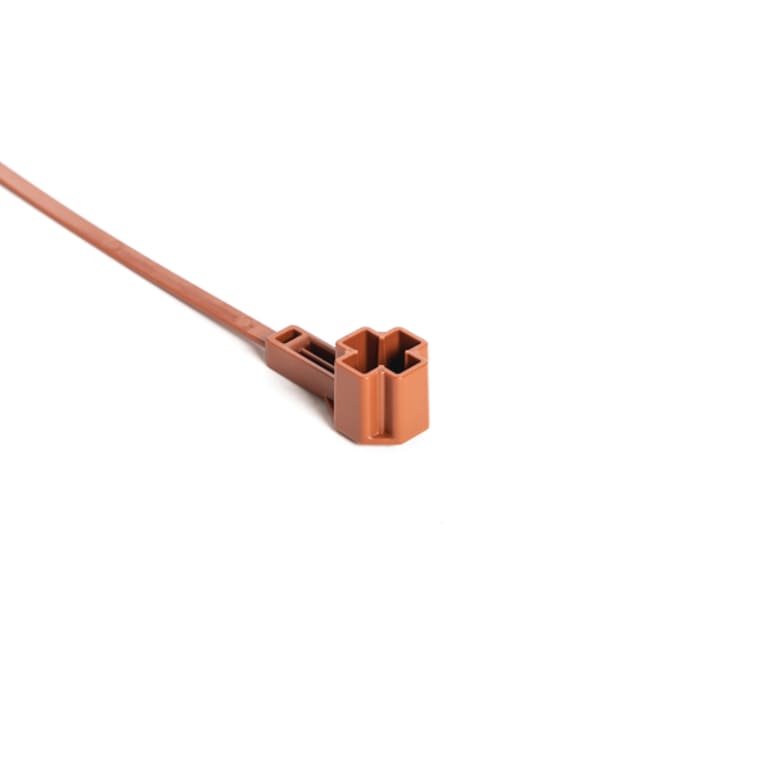

HellermannTyton 157-00328 – Offset M8 Stud Mount Tie, PA46, Brown

• Color: Brown
• Size (LxWxH): 8.9″ x 0.7″ x 0.59″
• Material: Polyamide 4.6 (PA46)
• Tensile Strength: 50 lb./in.
• Bundle Diameter: 0.08 ” Min | 1.97 ” Max
• Flammability Rating: UL 94 HB
• Mounting Hole Diameter: 0.31″ x 0.05″

This mount features an offset design, which positions bundles away from obstructions, heat or sources of abrasion. With their low insertion force and high extraction performance, HellermannTyton mounting ties offer the ideal combination of high-grade materials and superior design to suit the mounting and bundling needs of complex applications. Available in standard and high-heat material options.

Application

Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.
