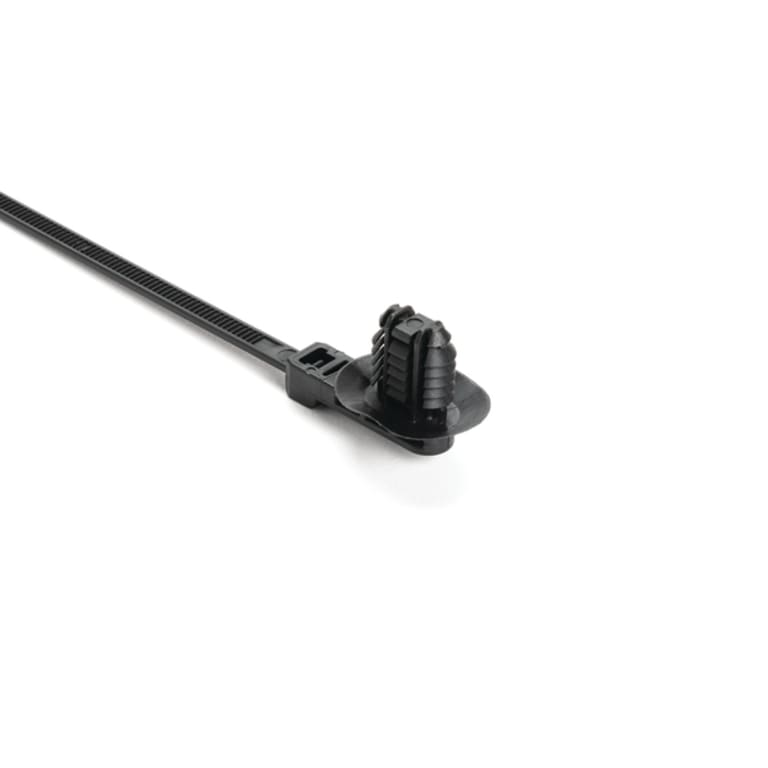

HellermannTyton 157-00437 – Cable Tie, Oval Fir Tree/Disc, 1Pc, A Series, 15mm Offset, 50mm Max, Black

• Color: Black

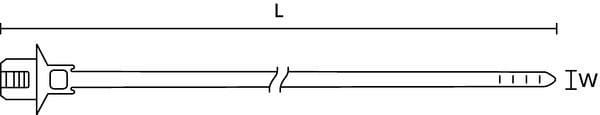

• Length: 8.75″
• Offset Length: 0.59″
• Material: Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)

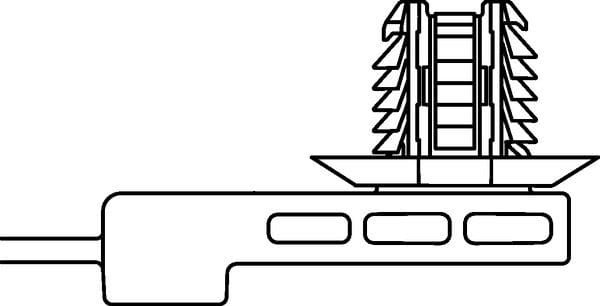

The one-piece cable tie and fixing offers a simple and easy-to-use method of bundling and fixing cables. The innovative design of the fir tree creates an interface with four different-sized holes that are common in the automotive industry. The fir tree branch design on all four sides makes a 360-degree interface with the panel, creating a more secure fit into the hole. The ‘disc’ on the top of the fir tree covers the hole and minimizes the ingress of water and dirt. These cable ties feature a fir tree mount that has an innovative four-sided 360° branch design that offers full interference for a wide range of oval hole applications. This industry-first design allows for one part to be used across multiple hole diameters and delivers cost savings through part consolidation. The clamp rails along the inside of the cable tie strap increase the grip around bundles, lowering the potential for lateral cable bundle movement.

Application:

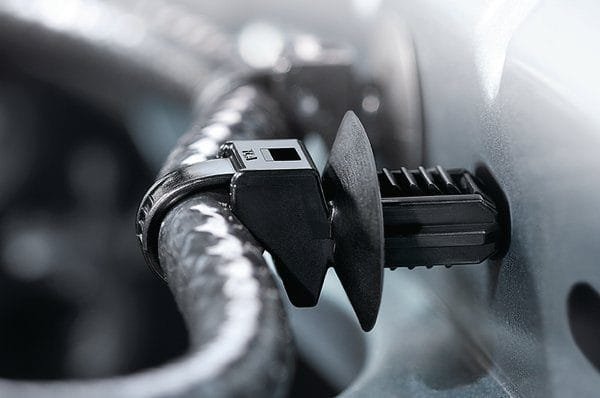

Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, have seen these parts used in everything from aircraft to switch-gear, to washing machines.
