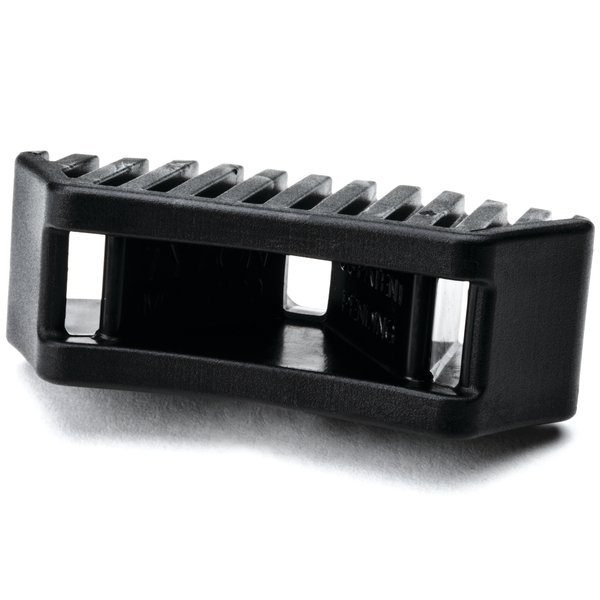

HellermannTyton MSBT1200HIRHSX2 – Saddle Mount, For Button Head Tie, .44-0.82″ Mtg Hole, BK

• Saddle Mount for Button Head Tie
• Colour: Black
• Size (in): 1.9″ L x 0.65″ W x 0.8” H
• 0.44 – 0.82″ Mounting Hole
• Material: Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)

The HellermannTyton MSBT1200HIRHSX2 saddle mounts are designed to be used with button head ties, the saddle mount stands off bundles from frame rails, providing clearance from bolts and other protrusions for protection against abrasion. This mount also allows the flow-through of salt, dirt, and other impurities from the road which prevents unwanted build-up on hoses and harnesses. The tie is snapped into the mount which allows the strap and tie assembly to be pre-installed on the frame rail or panel. The mount can secure three separate bundles, providing parallel spacing between the frame rail and adjacent bundles. The saddle mount is manufactured with pilot busing which prevents the cable tie from chafing against the burr edge of the mounting hole.
