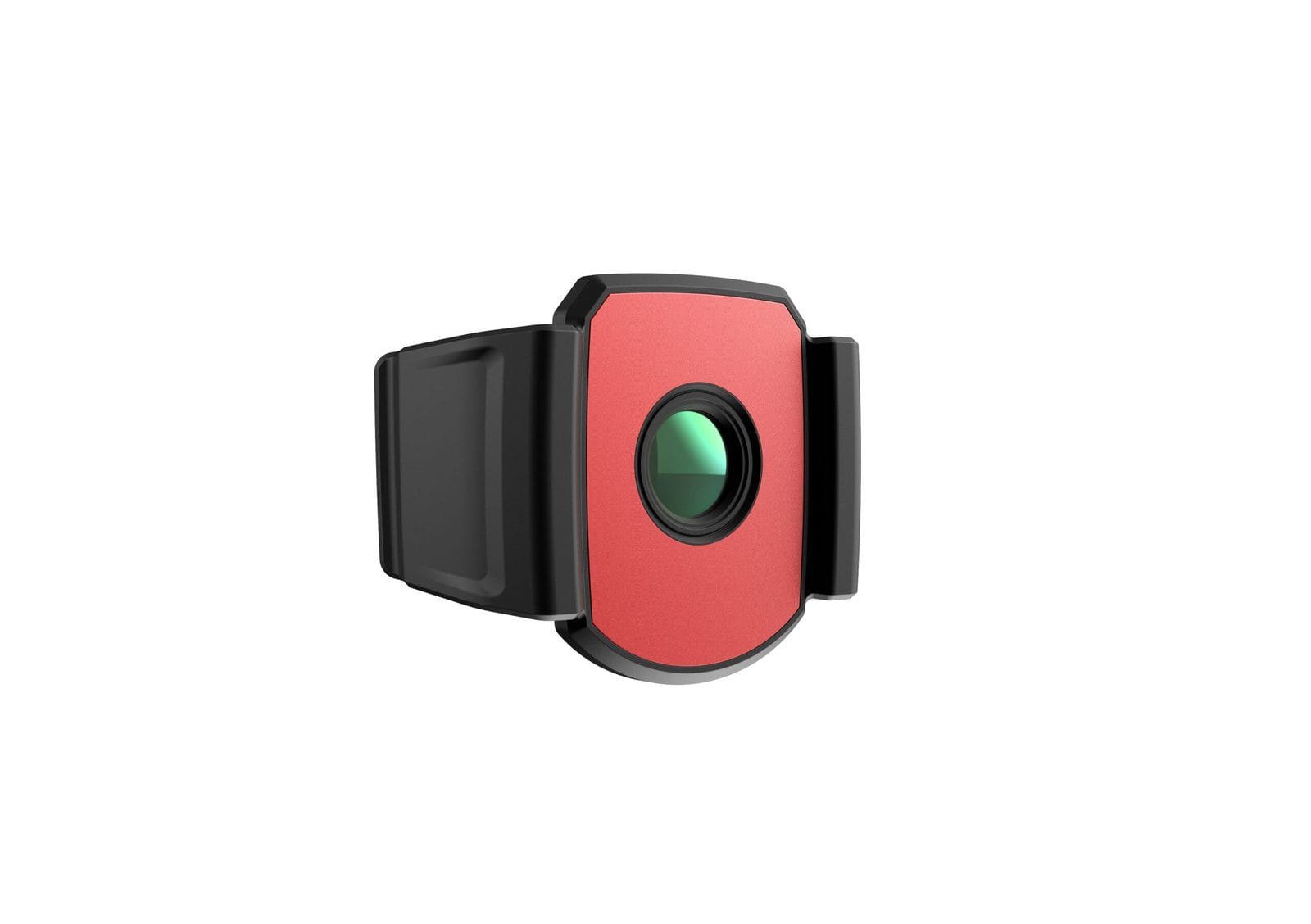

HikMicro B201-MACRO – B Series Macro Lens
20 people are viewing this product right now
$99.00
Shipping calculated at checkout.
Estimated delivery:5 days
Macro lens, B Series Cameras, .12x, 100u spot size, 30mm working distance
- Magnification: 0.12x
- Focal length: 4.6 mm
- FOV (Field of View): 36 degrees (H) x 28 degrees (V)
- IFOV (spatial resolution): 2.55 mrad
- Object temperature range: -20°C to 150°C (-4°F to 302°F)
- Accuracy: MAX. (± 3°C/5.4°F, ± 3%), FOR OBJECT TEMPERATURE BETWEEN 0°C (32°F) TO 150°C (302°F)
- Focusing distance: 30 mm ± 1 mm (1.18” ± 0.04”)
- Minimum imaging object size: 100 μm × 100 μm
- Min temperature object size: 500 μm × 500 μm
Guarantee Safe and Secure Payment Checkout
Description
HikMicro B201-MACRO
- Magnification: 0.12x
- Focal length: 4.6 mm
- FOV (Field of View): 36 degrees (H) x 28 degrees (V)
- IFOV (spatial resolution): 2.55 mrad
- Object temperature range: -20°C to 150°C (-4°F to 302°F)
B Series Macro Lens
HIKMICRO HM-B201-MACRO macro lens allows you to focus extremely close up 30 mm on a very small subject so that it appears much larger in the view (and in the final image), compared to the standard lens.
It allows you to capture accurate temperature measurements of small targets as small as 500 µm × 500 µm without changing the lens.
Get an incredibly detailed image of very small objects, so you can gain insight into thermal buildup and dissipation on printed circuit boards, identify a faulty or undersized component, or potentially even pinpoint precise faulty locations on electrical equipment.
HIKMICRO HM-B201-MACRO macro lens is compatible with the B series (B10, B20, B1L, B2L) thermography cameras.
Product General Attributes | |
|---|---|
| Product Weight | 0.02 LBS |
| Product Height | 1.74 IN |
| Product Length | 3.43 IN |
| Product Width | 0.99 IN |
You must be logged in to post a review.
Manuals/Guides
ManualsSpec Sheets
| Dimensions | 3.43 × 0.99 × 1.74 in |
|---|
