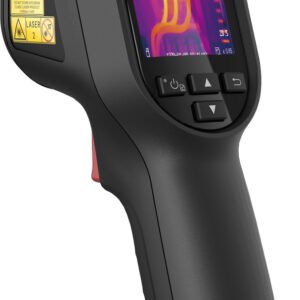

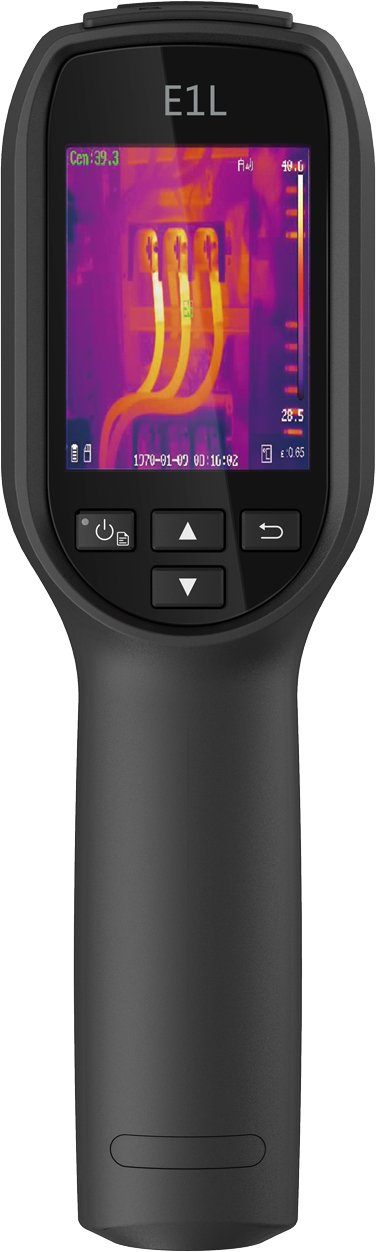

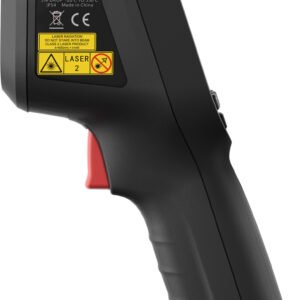

HikMicro E1L – Compact Thermal Imaging Camera
12 people are viewing this product right now
$329.98
Shipping calculated at checkout.
Estimated delivery:4 days
HIKMICRO E1L Compact Thermal Imaging Camera with 160×120 (19,200 pixels) Thermal Resolution, 8 GB SD Card Storage, 2.4 inch LCD
- Thermal Resolution: 160 × 120 (19,200 pixels)
- Measurement Presets: Center spot, Hot spot, Cold spot, Off
- 25 Hz Image Frequency
- Temperature Measurement Range: -20°C – 550°C (-4°F – 1022°F
- 8 Hour Battery Life
- NETD: < 40mK (@ 25°C, F#=1.0)
- IP54 Water Resistant Protection
- Lightweight at 0.77 lbs.
Guarantee Safe and Secure Payment Checkout
Description
HikMicro E1L – Compact Thermal Imaging Camera
- Thermal Resolution: 160 × 120 (19,200 pixels)
- Measurement Presets: Center spot, Hot spot, Cold spot, Off
- 25 Hz Image Frequency
- Temperature Measurement Range: -20°C – 550°C (-4°F – 1022°F)
- 8 Hour Battery Life
The Handheld Thermography Camera is a camera with thermal images. It can do thermometry, and snapshot capturing. The built-in high-sensitivity IR detector and high-performance sensor detects the temperature change and measure the real-time temperature. The temperature measurement range is -20°C to 550°C (-4°F to 1022°F) with thermometry accuracy ±2 °C. It helps the users to find the risky part and lower their property loss. The device supports live viewing, and capturing, etc. The handheld Thermography camera, adopting ergonomic design, is easy to use. The device is mainly applied to various industries, such as Building, HVAC, and auto industry, etc.
High Image Quality
A high sensitivity detector (less than 40 mk NETD) gives a clear picture of the target.
Temperature Analysis Software
Full screen temperature measurement, support offline analysis through stored image, then export report.
Highly Efficient Temperature Measurement
3 Points of temperature. Locate sources immediately with highest, lowest, and center temperature.
Rapid Booting
Stable temperature imaging in 7 seconds from start-up.
Thermal Imagers/Building and Industrial Thermal Imagers Template | |
|---|---|
| Detector Size | 160 x 120 Sensor |
| Thermal Sensitivity | 40 mK (NETD) |
| Temperature Range Max | 1022 F |
| Temperature Range Min | -4 F |
| Image Frequency | 25 Hz |
| Field of View | 50×37.5 Degrees |
| Screen Size | 2.4 IN |
| Video Output | No |
| Focus | Fixed |
| Laser Spot | Yes |
| Picture in Picture | No |
| Video Recording | No |
| Moveable Spots | No |
| Touch Screen Display | No |
| Minimum Focus Distance | 0.1 M |
| Accuracy | +/-2% or +/-2C |
| Battery operating time Continuous | 8 HR |
| Camera Light | No |
| IR Digital Zoom | No |
| Voice Annotation | No |
| Intrinsically Safe | No |
Product General Attributes | |
| Warranty | 3 YEARS |
| Safety Approval | CE, RoHS |
| Interfaces I/O | USB |
| Storage | Micro SD |
| IP Rating | IP54 |
| Product Weight | 0.77 LBS |
| Product Height | 7.7 IN |
| Product Length | 4.6 IN |
| Product Width | 2.3 IN |
| Data Logging | Yes |
| HTS/Schedule B Number | 9027.50.4020 |
| ECCN Number | 6A003.b.4.b |
| Calibration Included | Factory Calibration |
| Battery Type | Li-ion |
| Power Supply Voltage | 120V/220V Universal |
| Country of Origin | China |
| UPC | 842571136685 |
You must be logged in to post a review.
Manuals/Guides
ManualsSpec Sheets
| Weight | 0.77 lbs |
|---|---|
| Dimensions | 4.6 × 2.3 × 7.7 in |
