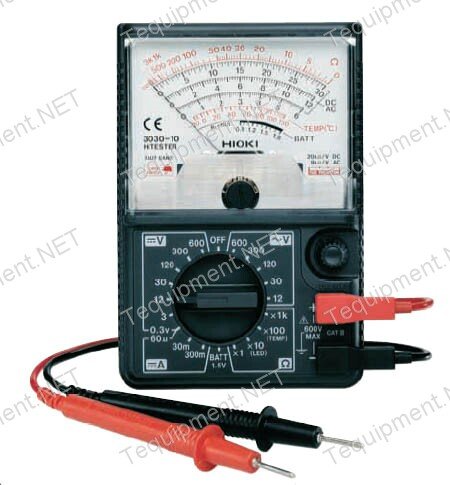

Hioki 3030-10 Analog Multi Meter
45 people are viewing this product right now
$135.30
Shipping calculated at checkout.
Estimated delivery:5 days
Analog Multi Meter. Analog Multimeter Drop Proof from 1 Meter.
- Protected against transient voltages up to 250 V AC, preventing electric shock accidents before they can happen
- Drop proof design withstands dropping onto a concrete floor from a height of 1 meter
- LED check function
- Battery check function
- Temperature measurement support (with optional probes)
- CE marking
Guarantee Safe and Secure Payment Checkout
Description
Analog Multi Meter

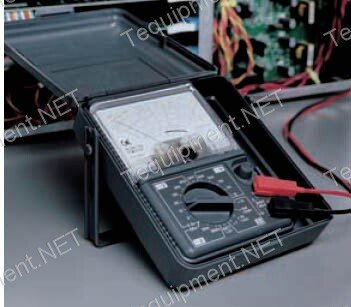

Rugged and easy to use, this meter can withstand a 1 meter drop onto a concrete floor. The 3030-10 has enhanced safety features and complies with a wide range of safety standards. HIOKI has long experience in the analog tester market, and now brings to it enhanced safety and usability.
Protected against transient voltages up to 250 V AC, preventing electric shock accidents before they can happen. The internal circuit protects the resistance and milli-amp ranges against transient voltages up to 250 V AC, preventing electric shock accidents before they can happen. Even in the event of an internal short-circuit, a current-limiting resistor is provided, to restrict shortcircuit currents.

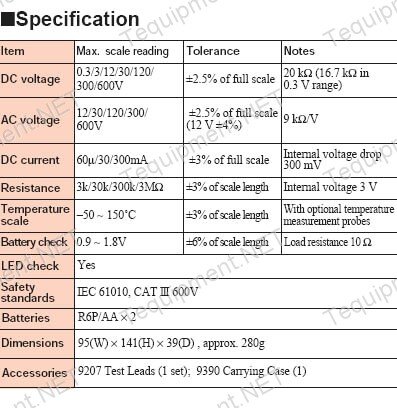

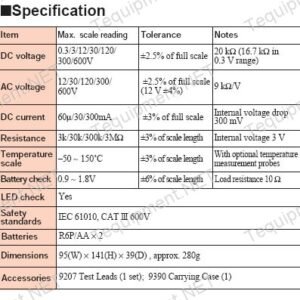

Multimeters Template | |
|---|---|
| Style | Hand-Held |
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | No |
| Measures DC A | Yes |
| True RMS | Yes |
| Maximum Voltage AC | 600 V |
| Maximum Voltage DC | 600 V |
| Maximum Current DC | 300 mA (0.3 A) |
| Decibels | No |
| Resistance | Yes |
| Frequency | No |
| Capacitance | No |
| Temperature | Yes |
| Diode Testing | No |
| CAT Rating | III |
| CAT Voltage | 600 V |
| Intrinsically Safe | No |
| Peak Hold | No |
| Overload Protector | No |
| Kelvin 4-Wire Measurement Capability | No |
| Wireless Display | No |
| Data Hold | No |
| Low-Pass Filter | No |
Product General Attributes | |
| Unique Features | Can withstand a 1M drop Protected against transient voltages up to 250 V AC Battery check function Temperature measurement support (with optional 9021-01 probes) |
| Warranty | 2 YEARS |
| Safety Approval | CE |
| Product Height | 2.25 IN |
| Product Length | 6.00 IN |
| Product Width | 5.75 IN |
| HTS/Schedule B Number | 9030.32.0000 |
| ECCN Number | 3A992 |
| Calibration Included | |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Japan |
| Shipping Height | 2.25 IN |
| Shipping Length | 6.00 IN |
| Shipping Width | 5.75 IN |
You must be logged in to post a review.
Manuals/Guides
| Dimensions | 6 × 5.75 × 2.25 in |
|---|
