Hioki 3490 – Analog Meg-ohm Meter 3-range

• Resistance measurement – 3Ω, 30Ω
• AC voltage measurement: 600V AC
• Approx. 20 hours continuous operating time
• Drop Proof: on concrete: 1m/1 time
• Dielectric strength: 5312 VAC, 50/60Hz

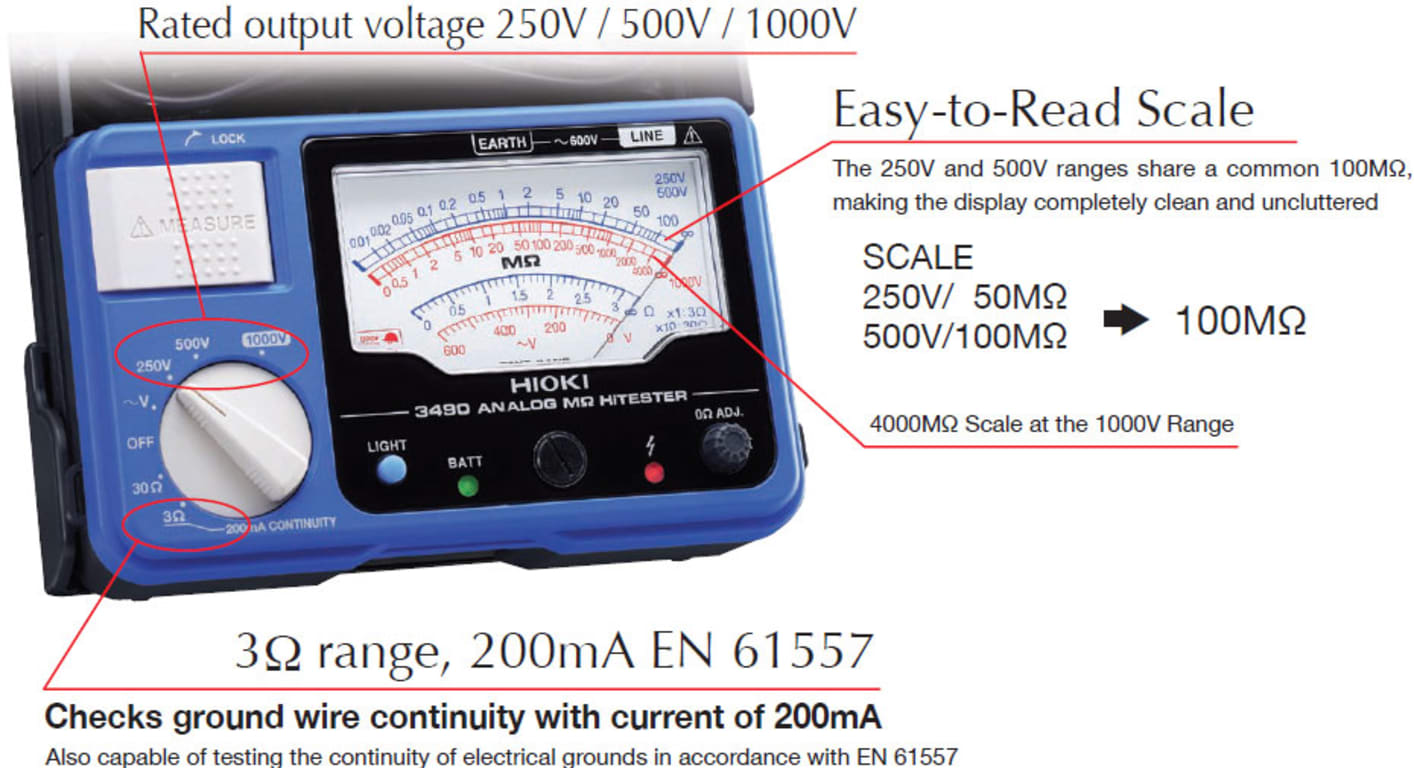

The Hioki 3490 Analog MΩ HiTester’s 3 Ω range can be used for both the ContinuityTest on protective conductors used in electrical installations of buildings, and the protective conductor resistance measurement test ap-proved by IEC60364. The 30 Ω range is also optimal for the Polarity and Circuit ConnectionTesting for Indoor Wiring approved by AS/NZS3017, guidelines for tests and inspections on electrical installations in the Oceania region. This instrument is not designed for the production line and is not suitable for that purpose. Please use the 3154 Digital MΩ HiTester for the production line.

See better in the dark.

Work safely knowing that when the RED is lit, live wires, high voltage or electrical discharge is present. The super bright light at the tip of the optional 9788 Test Leads adds to efficiency.

The LIVE CIRCUIT LED will light up in red whenever the voltage exceeds 20V AC between the LINE and EARTH terminals, and when at least 20V DC is still remaining during the auto discharge.

• Start and stop the test at the touch of a button
• Test for insulation resistance single-handedly

• Illuminate the test location with a bright white LED

Testers are built tough to withstand a 1-meter drop onto a concrete floor.

Ergonomic design lets you start and stop tests with a single press.

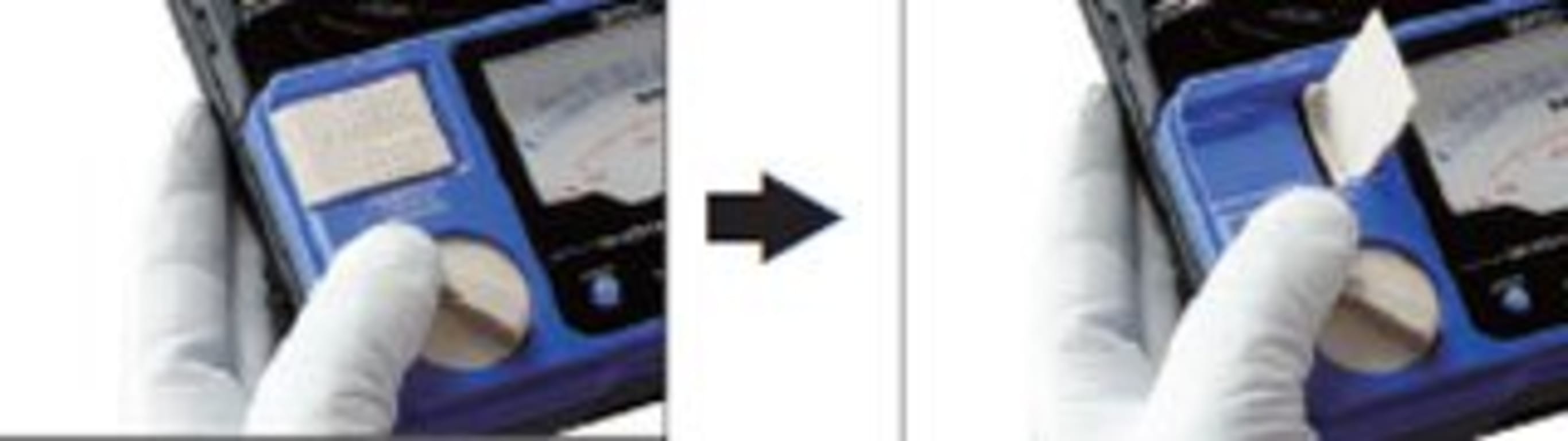

Simply flip the switch to measure continuously
