Description

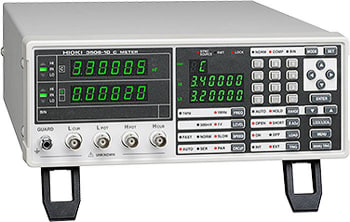

Hioki 3506-10 C Hi-Tester (1kHz and 1MHz) – Low Noise
- High-speed analog test time of 0.6 ms (at 1 MHz)
- Improved noise resistance and enhanced repeatability in measurement precision even for production lines
- 1 kHz and 1 MHz measurement frequency supports stable low capacitance testing with taping machines
- BIN function, for easy component screening
Hioki LCR Meters and Impedance Analyzers range from 1mHz to 3GHz devices to suit a wide range of applications in the testing of electronic components. 3506-10 is a dual-band capacitance meter designed to be integrated with automatic taping machines and sorters for the production of MLCC (multi-layer ceramic capacitors).
Faster Measurement and Improved Repeatability
Compared to the previous model (3506), 3506-10 delivers higher measurement speeds in FAST mode and improvement by a factor of approximately 7 in repeatability for measurement of minuscule capacitance values in high-noise environments. These characteristics make the instrument ideal for embedded measurement in taping machines, sorters, and other automatic systems.
LCR Meters / Impedance Measurement Products /Capacitance Testers Template | |
|---|---|
| Type | Benchtop |
Product General Attributes | |
| Unique Features | 1kHz, 100kHz |
| Interfaces I/O | GPIB, Other, RS-232 |
| Product Weight | 4.8 KILOS (10.58 LBS) |
| Product Height | 100 MM (3.94 IN) |
| Product Length | 260 MM (10.24 IN) |
| Product Width | 298 MM (11.73 IN) |
| ECCN Number | 3A992 |
| Power Supply Voltage | 120V 50/60 Hz |
| Country of Origin | Japan |
