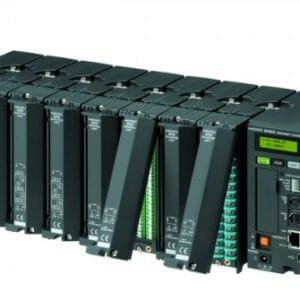

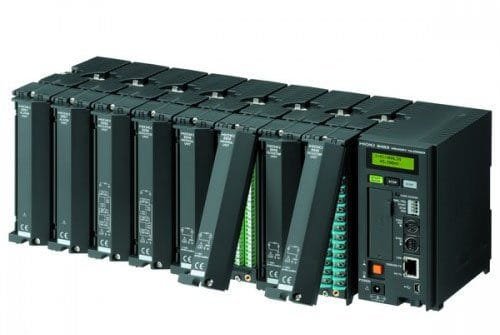

Hioki 8423 – HiLogger Memory

• Capture data with 15 to a maximum of 600 channels
• Send data to the PC in real time
• Isolated to sustain up to 600 V between modules and earth
• USB 2.0, LAN 100BASE-TX, Store to 1GB PC Card
• Simultaneous fast- and low-speed sampling allows for media storage space efficiency

The Hioki 8423 is a data acquisition system capable of measuring and recording multiple channels at high speed. Acquired data can be easily analyzed on a personal computer. This model is ideal for acquiring data for evaluation and testing at development sites. If your evaluation needs require faster data sampling than was available with former HIOKI MEMORY HiLOGGERs, or if you just need more measurement channels, this model has the capabilities you want.

Hioki Memory HiLoggers are high-speed data loggers for recording multiple channels of voltage, temperature, resistance, humidity, rotation, and pulse signals, providing complete isolation within channel sets. The 8423 with optional input modules log data at 10ms speeds across up to 600 simultaneously and is configurable and controllable using a PC.

To acquire data when converting automobile electronics for electric or hybrid vehicles

• Fastest measurement interval (sampling interval) is 10 ms
• Acquires up to 600 channels of data with 10 ms sampling interval
• Insulation withstand voltage between the measurement channels in each module is 200 V (Model 8948)

In the development of electric and hybrid automobiles, the need to capture sudden swings in various loads requires a measurement instrument with multi-channel high- speed sampling capability. For this purpose, HIOKI has developed a very economical logger that can measure with.

10-ms sampling interval on all channels. Also included is a dual-sampling function that can measure at two different sampling rates simultaneously. This new model can follow waveforms that former 100-ms-sampling instruments could not.

Logger configuration settings are made from a computer running the supplied application program. Settings can be easily made using familiar PC operations. To keep the process simple, the user is guided sequentially through the setting items.
