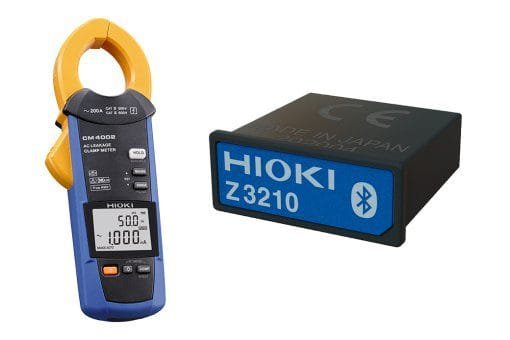

Hioki CM4002-90 – TRMS AC Leakage Clamp Meter (200A) with Z3210 Wireless Adapter

• Package includes Hioki CM4002 Clamp Meter and Z3210 wireless adapter
• True RMS AC measurements
• Frequency range: 15 Hz – 2000 Hz
• 6 mA – 200 A AC current range
• Easily transfer measurement data to your smartphone or tablet by using our free app GENNECT Cross or to an Excel file.

Prevent unexpected downtime!

Identify potential problems and avoid large problems

Wirelessly connect Hioki-compliant instruments with a simple connection.

Transmit measured values to your tablet or smartphone.

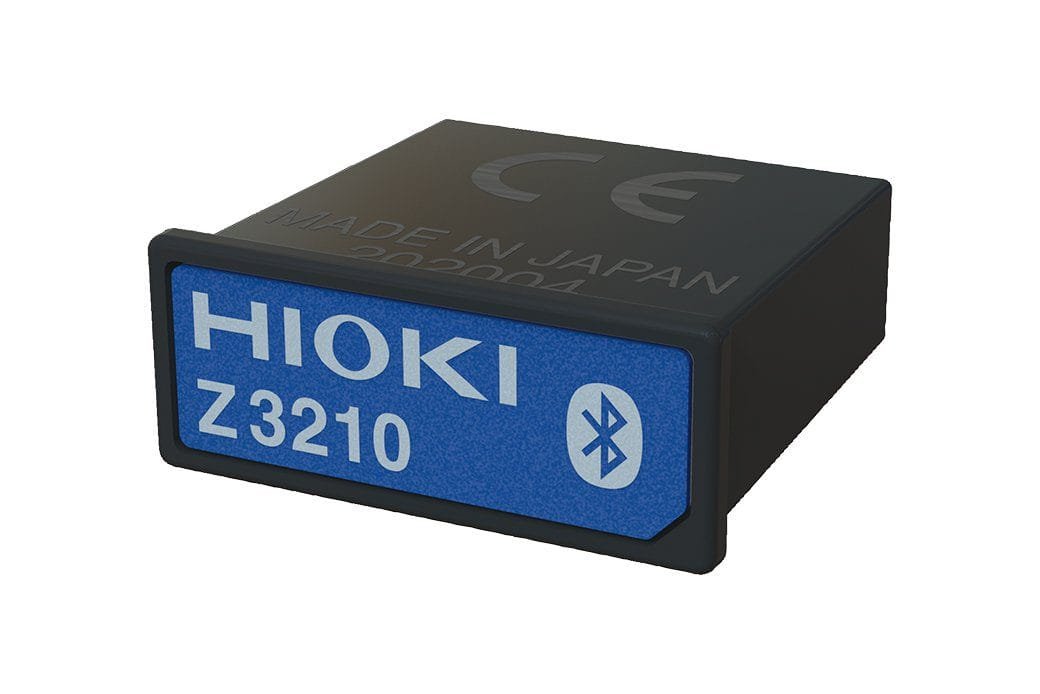

Connect the Wireless Adapter Z3210 (optional) for wireless communications.

You can transfer the readings to your phone or tablet and check the location and time of leakage easily and efficiently.

GENNECT Cross, a free app designed specifically for use with Hioki measuring instruments, lets you check and manage measurement results and create reports.

The software provides a range of functionality that helps manage data in the field, including photographing measurement sites, placing measurement results on photographs, and saving hand-written memos.

(Optional Wireless Adapter Z3210 is necessary.)

Excel Direct Input function allows you to input measurement values directly and automatically into an Excel file once the instrument’s auto-hold function is activated. (Wireless Adapter Z3210 is necessary).

Record measurement locations and measured values together.

Identify trip locations quickly and reliably!

The meter records event information (times and current values) in its internal memory.

Collect data using a tablet and check for trips!

The core and shielding are constructed from high-permeability magnetic materials.

The CT sensor features a uniform coil.

The CM4002/CM4003 complies with the performance standard set forth in IEC/EN 61557-13, an international standard on leak clamp meters.

1. Uniform measurement sensitivity inside jaws: When affixed around a wire, sensitivity is uniform regardless of the position of the conductor inside the jaws.

2. Resistance to the effects of external magnetic fields: Shielding made of high-permeability magnetic material blocks magnetic fields from the surrounding environment.

3. Elimination of the effects of high-frequency currents: A low-pass filter eliminates high-frequency capacitive leakage currents from inverters and other equipment.

The jaws have a maximum diameter of 40 mm diameter and can be used to pinch thick cables or multiple cables at once.
