Hioki CM4141-90 – TRMS AC Clamp Meter (2000 A) with Z3210 Wireless Adapter

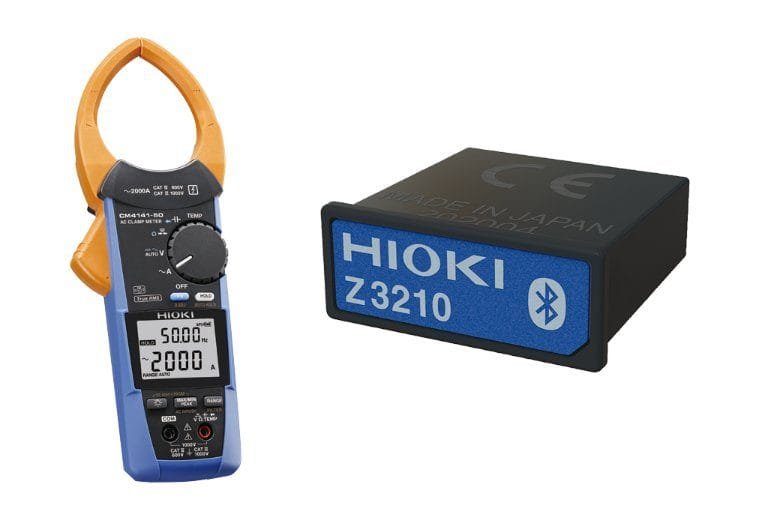

• The package includes a TRMS clamp meter and Z3210 wireless adapter
• AC current range: 60 A – 2000 A (3 ranges – 45 Hz to 1 kHz, TRMS)
• DC voltage range: 600 mV – 1000 V
• AC Voltage range: 6 V – 1000 V
• Resistance range: 600 ohms – 6 Mega Ohms

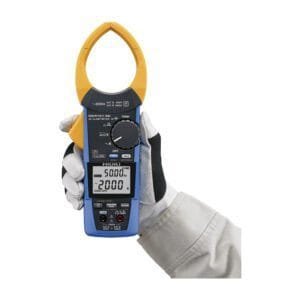

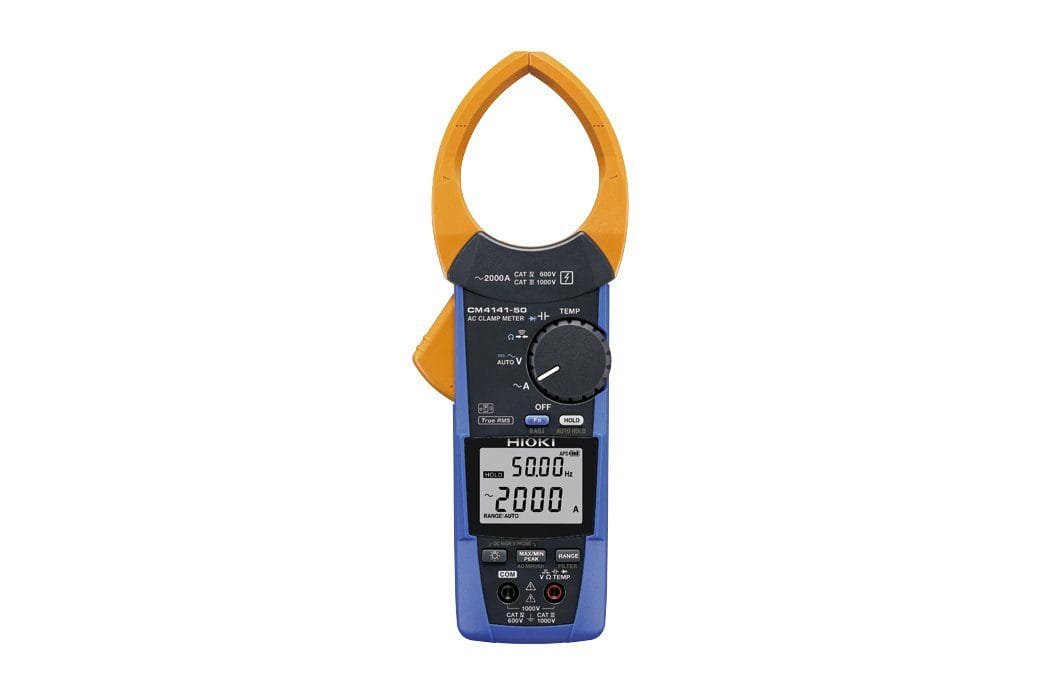

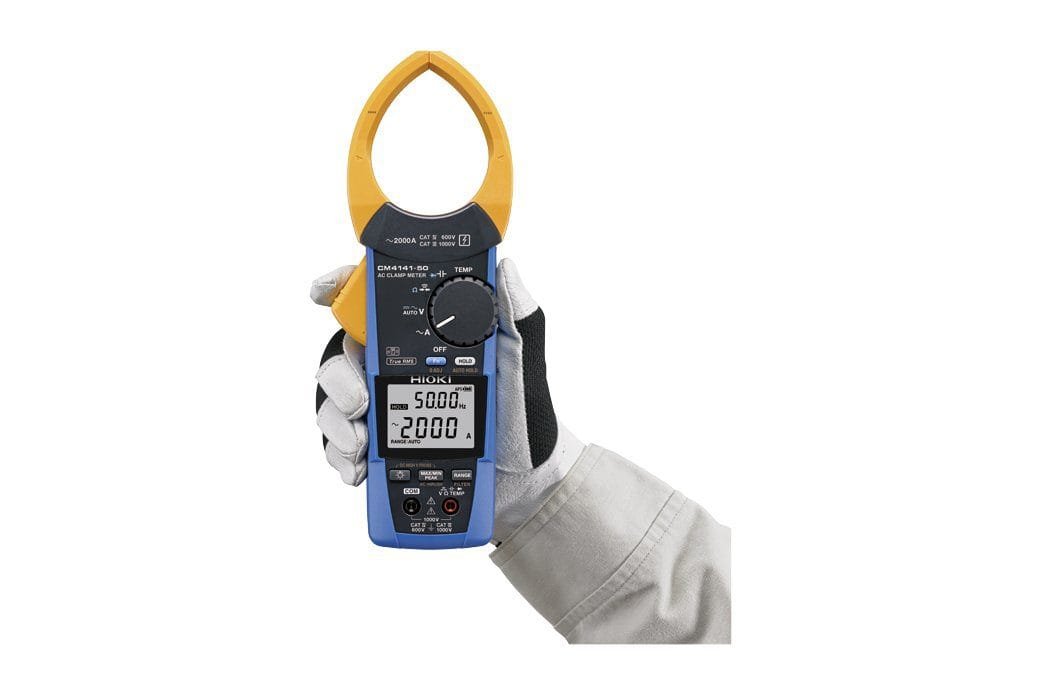

True RMS 2000 A AC Clamp Meter – Innovative Current Sensor Design – Easily Get Into Tight Spaces

Hioki clamp on meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The CM4141-50 is a 2000 A AC True RMS clamp meter that features a uniquely designed slim jaw that lets you easily get into the narrow gaps between cables in crowded electrical distribution boxes without fear of damaging the cables or the clamp meter. The high current measurement capability makes it especially useful for industrial applications.

Wirelessly connect Hioki-compliant instruments with a simple connection.

Transfer measurements to your smartphone or tablet and quickly create reports with field photos and drawings.

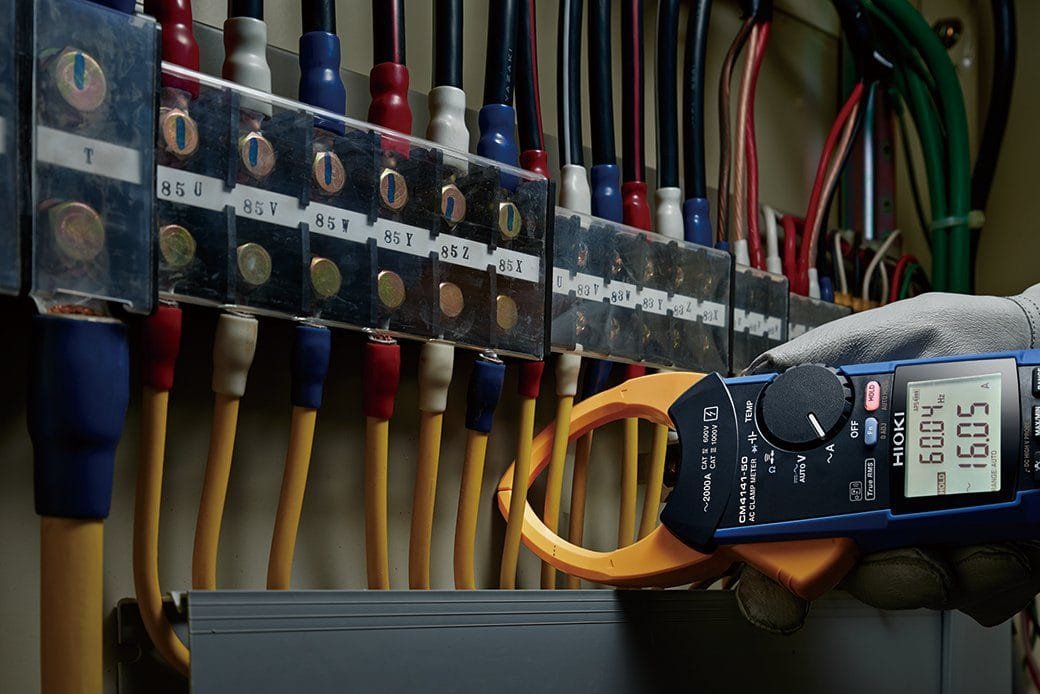

Clamp Sensor gets between wires even with Large Jaw Diameter

Despite the ability to measure up to 2000 A AC afforded by the large sensor with φ55mm core diameter, the clamp meter’s innovative jaw design lets you get between the narrow spaces between crowded cables with absolute ease. In addition, electrical panels are sometimes so crowded that you need to push and pull the clamp to get it around the cable. The CM4141-50 features robust construction that delivers strength while letting you weave through complex wiring to get to the right cable, vastly improving work efficiency and speed.

Compared with clamp meters of a similar class, the meter weighs only 300 g, at least 100 g lighter than competitors, letting you use the instrument over long work days with significantly less effort and physical strain.

– Enables high voltage measurement up to CAT III 2000 V

– Safely measure solar installations like the mega-solar without interrupting the grid by simply connecting the DC High Voltage Probe P2000 to compatible Hioki clamp meters and digital multimeters (DMMs)

When the Wireless Adapter Z3210 is installed, Bluetooth® wireless communication is enabled. It transfers measurements to your smartphone or tablet and allows you to quickly create reports with field photos and drawings.

Harmonic measurement

When combined with GENNECT Cross, you can perform a simple harmonic analysis. Applications include problem analysis of power supply systems.

Problems that can be caused by harmonics

• Equipment burn-out and destruction due to overheating
• Malfunctions of power control devices
• Increased loss along with reduced service life and efficiency for power devices

Boost work efficiency in the field by letting you directly transfer measurement data to (i.e., enter measured values directly into) templates created as Excel.
