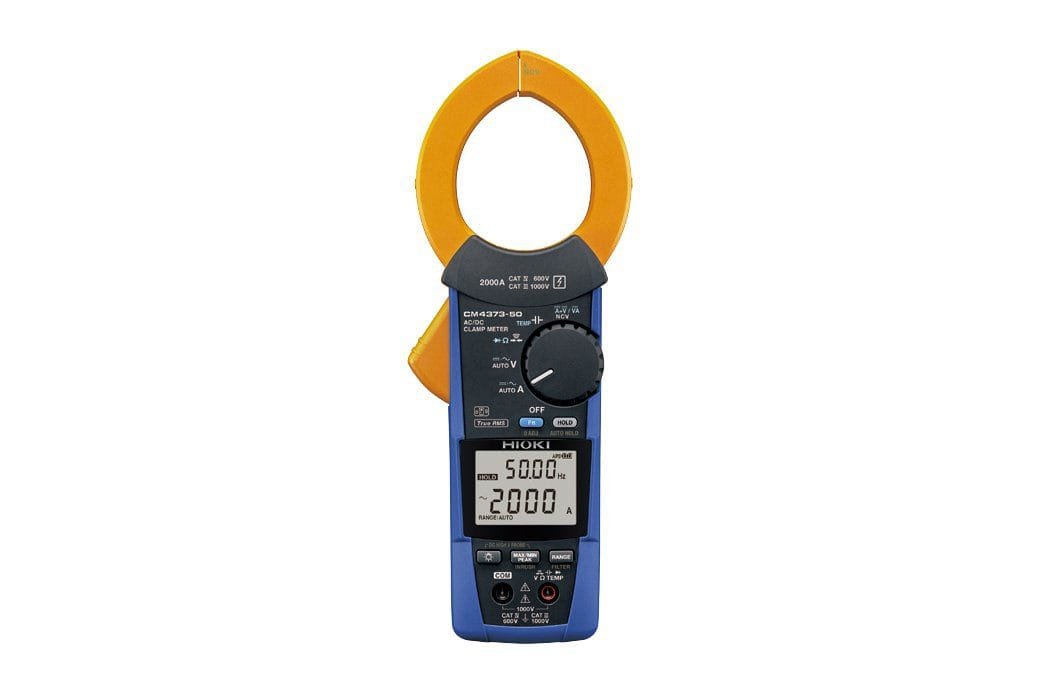

Hioki CM4373-90 – True RMS 2000A AC/DC Clamp Meter with Wireless Adapter Z3210

• Core jaw diameter: φ55 mm (2.17 in)
• AC current range: 600.0 A/2000 A (10 Hz to 1 kHz, True RMS)
• DC current range: 600.0 A/2000 A
• CAT IV 600 V, CAT III 1000 V
• Measure DC voltages of up to 2000V with P2000 probe

Hioki clamp meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The CM4373-90 is a 2000A True RMS clamp meter that features stronger jaws, IP54 dustproof and waterproof enclosure to enable professionals to work quickly in tough situations including the development, repair, and maintenance of equipment and devices such as electric vehicles. Additionally, the high-voltage DC measurement capability of up to 2000 V is ideal for the clamp maintenance inspections of electrical and solar power equipment. The clamp is bundled with the Z3210 wireless adapter.

Automatic hold function

In addition to being convenient when the display cannot be seen during measurement when the measurement value is stabilized, the display value is automatically held until the next measurement, which is very convenient for repeated measurement and recording tasks.

The clamp meters can simultaneously measure inrush current in RMS as well as maximum crest values at motor startup and for welding currents.

The clamp meters automatically detect the duration of the inrush current (which can range from several dozen milliseconds to several hundred milliseconds) and measure the current during that interval, enabling them to yield more accurate measurements than standard clamp-on meters whose measurement interval is fixed to 100 ms.

Excel Direct Input Function

Boost work efficiency in the field by letting you directly transfer measurement data to (i.e., enter measured values directly into) templates created as Excel.

Helping personnel analyze issues in the field

Harmonic measurement

When combined with GENNECT Cross, you can perform a simple harmonic analysis. Applications include problem analysis of power supply systems. (Requires GENNECT cross)

Problems that can be caused by harmonics

• Equipment burn-out and destruction due to overheating
• Malfunctions of power control devices
• Increased loss along with reduced service life and efficiency for power devices

DC High V Probe Mode

• Enables high voltage measurement up to CAT III 2000 V
• Safely measure solar installations like the mega-solar without interrupting the grid by simply connecting the DC High Voltage Probe P2000 to compatible Hioki clamp meters and digital multimeters (DMMs)
• *Requires DC High Voltage Probe P2000

Wireless support

When the Wireless Adapter Z3210 is installed, Bluetooth wireless communication is enabled. It transfers measurements to your smartphone or tablet and allows you to quickly create reports with field photos and drawings.

*Z3210 included in CM4373-90
