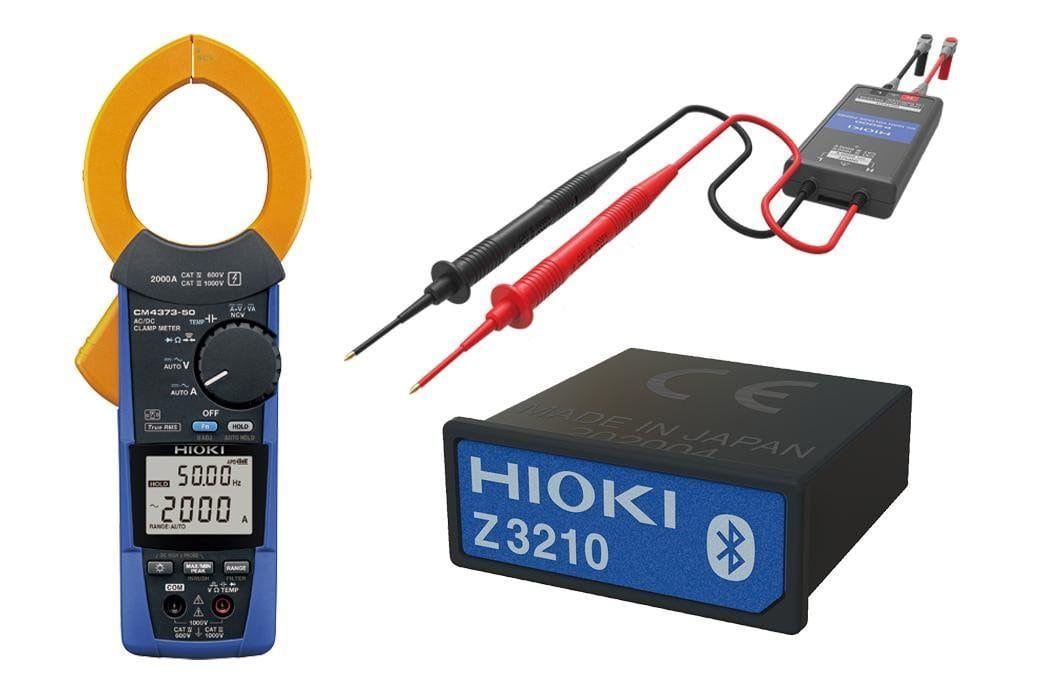

Hioki CM4373-92 – TRMS AC/DC Clamp Meter (2000 A) with P2000 Probe and Wireless Adapter Z3210

• Package includes AC/DC clamp meter, P2000 probe, Z3210 wireless adapter, L9300 test lead
• Current: 2000 A AC / DC
• AC Voltage: 1000 V AC
• DC Voltage: 2000 V DC
• Crest factor: 600 A range: 3 or less; 2000 A range: 2.84 or less

Hioki clamp meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The CM4373-90 is a 2000 A True RMS clamp meter that features stronger jaws IP54 dustproof and waterproof enclosure to enable professionals to work quickly in tough situations, including the development, repair, and maintenance of equipment and devices such as electric vehicles. Additionally, the high-voltage DC measurement capability of up to 2000 V is ideal for the clamp maintenance inspections of electrical and solar power equipment.

• Enables high voltage measurement up to CAT III 2000 V
• Safely measure solar installations like the mega-solar without interrupting the grid by simply connecting the DC High Voltage Probe P2000 to compatible Hioki clamp meters and digital multimeters (DMMs)

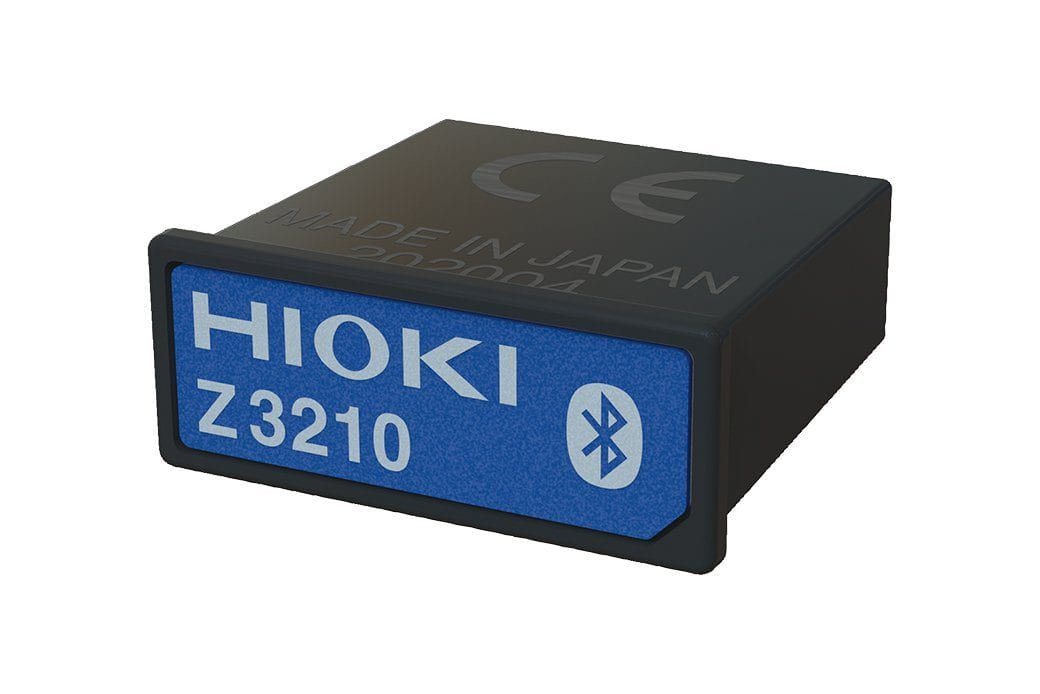

When the Wireless Adapter Z3210 is installed, Bluetooth® wireless communication is enabled. It transfers measurements to your smartphone or tablet and allows you to quickly create reports with field photos and drawings.

Boost work efficiency in the field by letting you directly transfer measurement data to (i.e., enter measured values directly into) templates created as Excel.

When combined with GENNECT Cross, you can perform a simple harmonic analysis. Applications include problem analysis of power supply systems.

Problems that can be caused by harmonics

• Equipment burn-out and destruction due to overheating
• Malfunctions of power control devices
• Increased loss along with reduced service life and efficiency for power devices

In addition to being convenient when the display cannot be seen during measurement when the measurement value is stabilized, the display value is automatically held until the next measurement, which is very convenient for repeated measurement and recording tasks.

The clamp meters can simultaneously measure inrush current in RMS as well as maximum crest values at motor startup and for welding currents. The clamp meters automatically detect the duration of the inrush current (which can range from several dozen milliseconds to several hundred milliseconds) and measure the current during that interval, enabling them to yield more accurate measurements than standard clamp-on meters, whose measurement interval is fixed to 100 ms.

Test Lead L9300 incorporates integrated caps for greater convenience and safety. The design lets you change the measurement category simply by sliding the test lead’s protective finger guard. You no longer have to worry about losing caps!
