Hioki CM4375-92 – TRMS AC/DC Clamp Meter (1000 A) with P2000 Probe and Z3210 Wireless Adapter

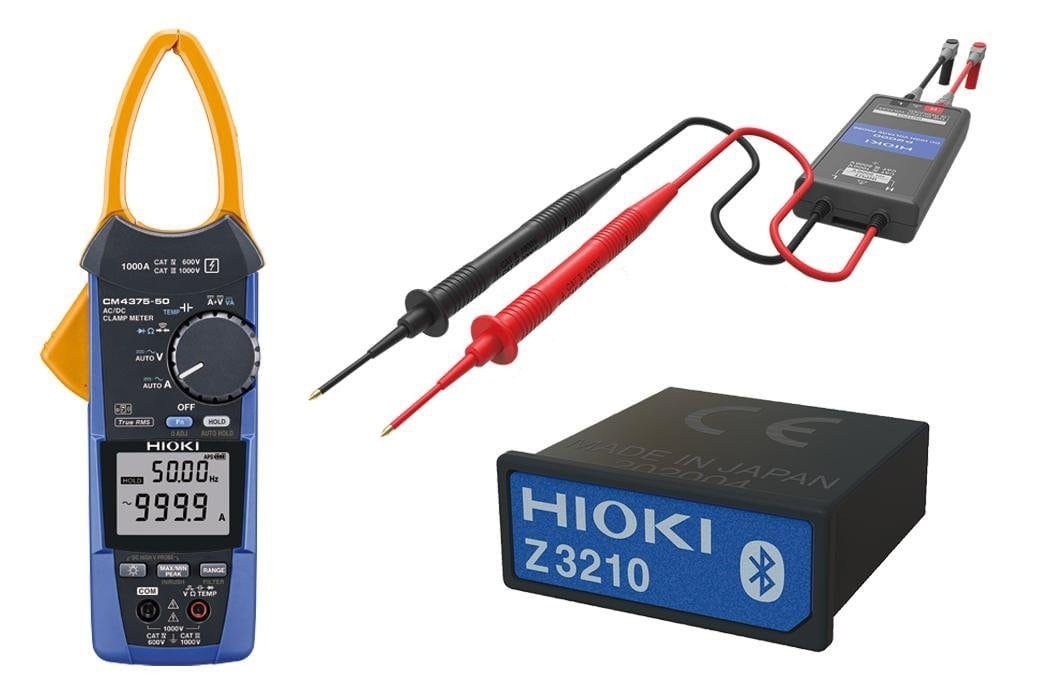

• Package includes AC/DC clamp meter, P2000 probe, Z3210 wireless adapter
• Current: 1000 A AC / DC
• AC Voltage: 6 V to 1000 V (5 ranges)
• DC Voltage: 600 mV to 1700 V
• Crest factor: 1.5

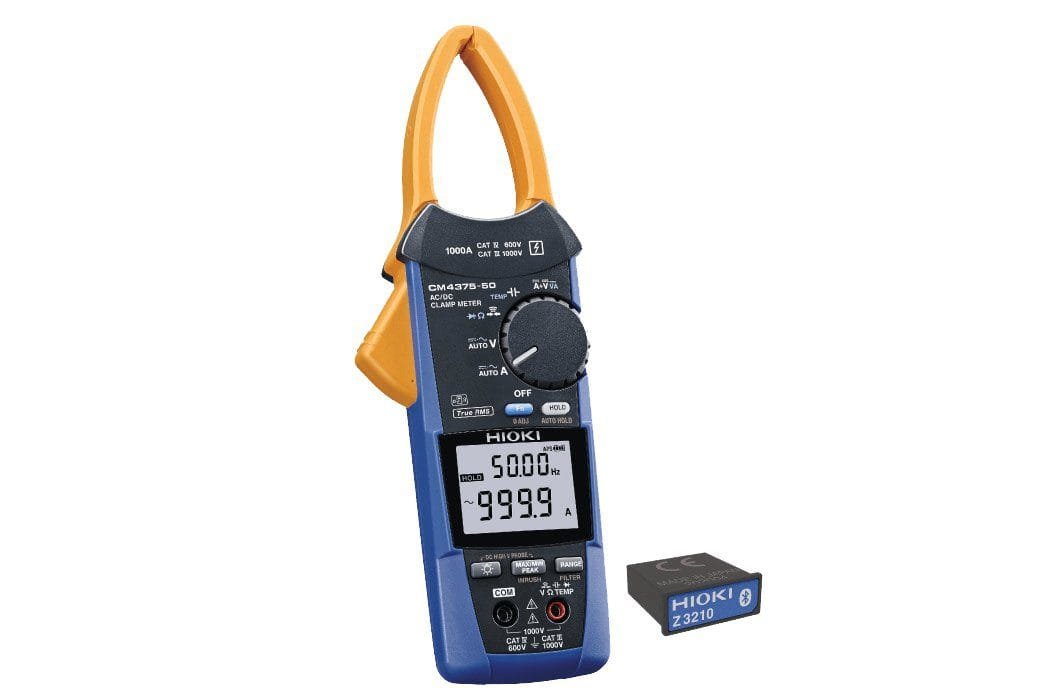

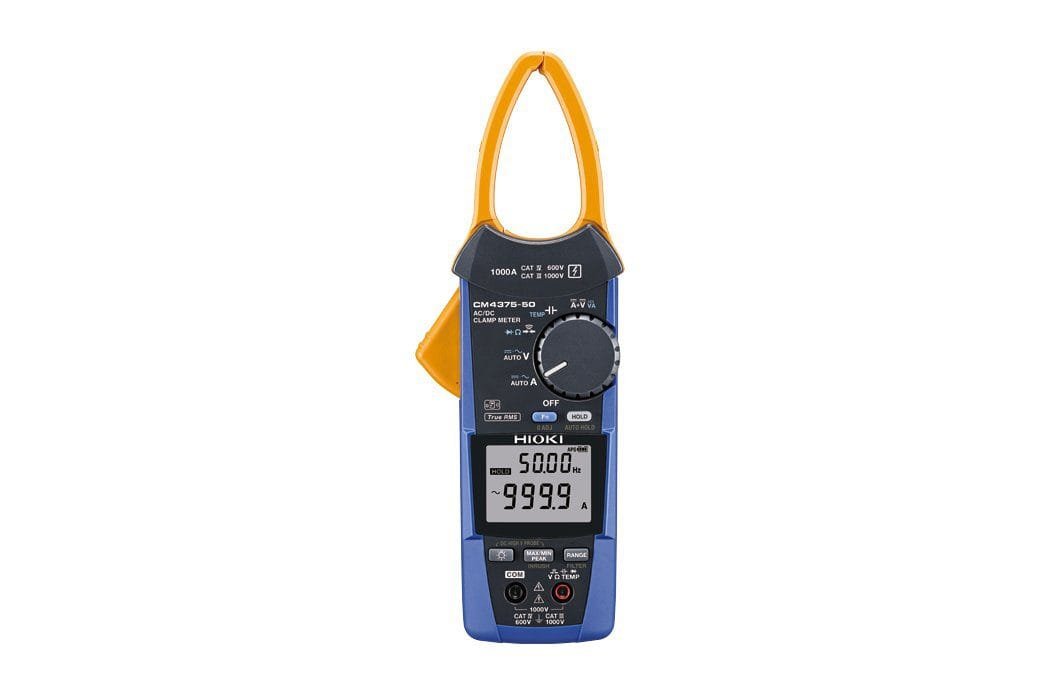

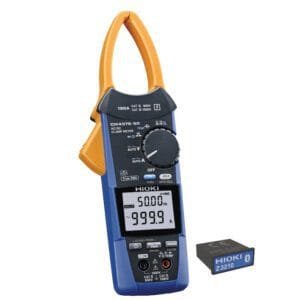

Hioki clamp-on meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The CM4375-50 is a 1000 A AC/DC True RMS clamp meter that features a uniquely designed slim jaw that lets you easily get into the narrow gaps between cables in crowded electrical distribution boxes without fear of damaging the cables or the clamp meter. The broad IP54 dustproof and waterproof enclosure enables professionals to work quickly in challenging situations, including the development, repair, and maintenance of equipment and devices such as electric vehicles. Additionally, the high-voltage DC measurement capability of up to 2000 V is ideal for the clamp maintenance inspections of electrical and solar power equipment.

• Enables high voltage measurement up to CAT III 2000 V

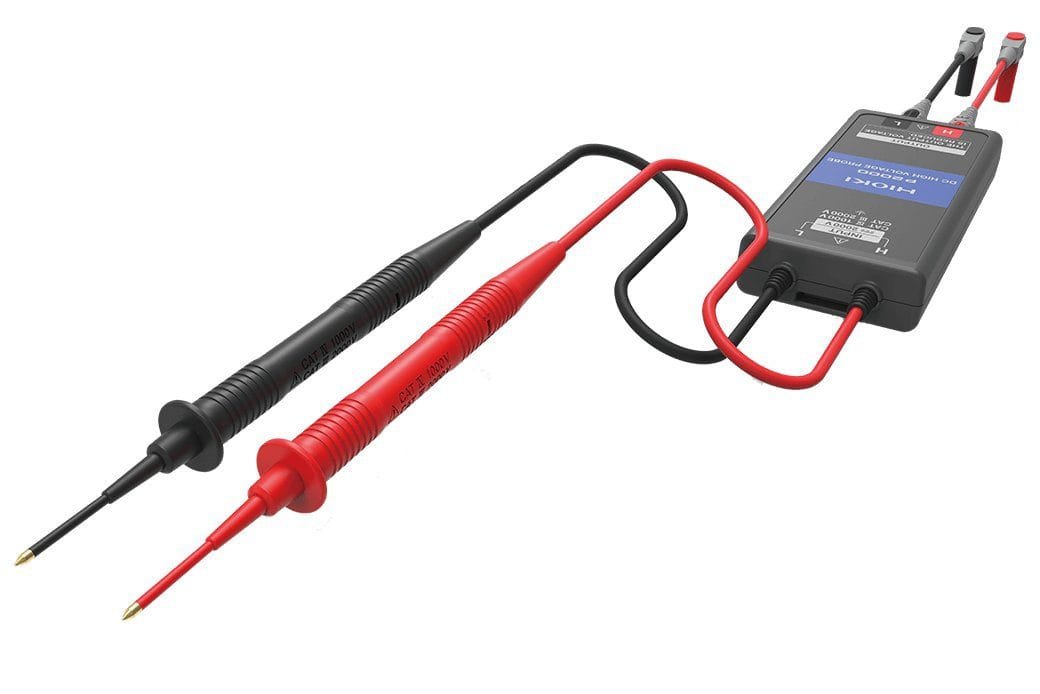

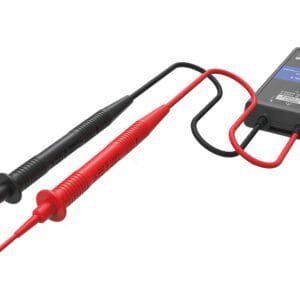

• Safely measure solar installations like the mega-solar without interrupting the grid by simply connecting the DC High Voltage Probe P2000 to compatible Hioki clamp meters and digital multimeters (DMMs)

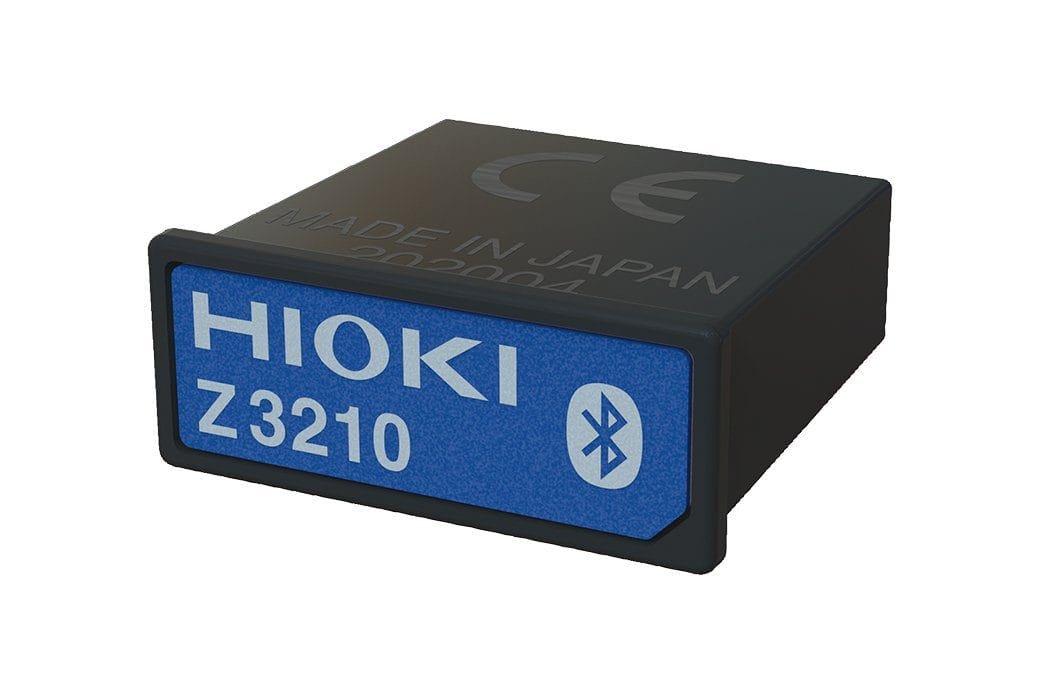

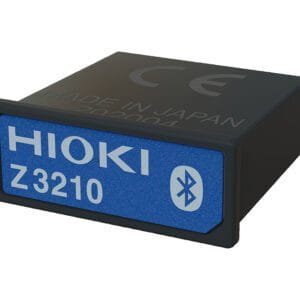

When the Wireless Adapter Z3210 is installed, Bluetooth® wireless communication is enabled. It transfers measurements to your smartphone or tablet and allows you to quickly create reports with field photos and drawings.

Excel Direct Input Function

Boost work efficiency in the field by letting you directly transfer measurement data to (i.e., enter measured values directly into) templates created as Excel.

Harmonic measurement

When combined with GENNECT Cross, you can perform a simple harmonic analysis. Applications include problem analysis of power supply systems.

Problems that can be caused by harmonics

• Equipment burn-out and destruction due to overheating
• Malfunctions of power control devices
• Increased loss along with reduced service life and efficiency for power devices

Innovative jaw provides remarkable accessibility.

Panel overcrowding is commonly found in many power distribution breakers and termination boxes. The newly designed thin sensor gets into even the most limited spaces. Eliminate the issues of trying to find the right wire or forcing the clamp around thick cables.

The new and improved design features stronger jaws (the current sensor portion of the instrument) and a dramatic boost in the duration of the warranty from 10,000 to 30,000 open-close cycles to ensure the instrument will provide even more years of reliable use. The CM4375, CM4376, CM4141, and CM4142 deliver the dual functionality of ease of clamping and resistance to damage.

The CM4000 Series can simultaneously measure inrush current in RMS as well as maximum crest values at motor startup and for welding currents.

The clamp meters automatically detect the duration of the inrush current (which can range from several dozen milliseconds to several hundred milliseconds) and measure the current during that interval, enabling them to yield more accurate measurements than standard clamp-on meters, whose measurement interval is fixed to 100 ms.

Use the inrush current feature for motor installation and maintenance to prevent circuit breakers from tripping, especially with high-efficiency motors that have an inrush current many times greater than the steady-state current of the motor.

Test Lead L9300 incorporates integrated caps for greater convenience and safety. The design lets you change the measurement category simply by sliding the test lead’s protective finger guard. You no longer have to worry about losing caps!
