Hioki CT7812 – AC/DC Current Sensor (2 Amp, 5 mm)
17 people are viewing this product right now
$1,738.00
Shipping calculated at checkout.
Estimated delivery:3 days
AC/DC CURRENT SENSOR
- Exceptional performance in a compact package
- Easy to install in confined locations with complex wiring
- Rated current: 2 A AC/DC
- Bandwidth: DC to 100 kHz
Guarantee Safe and Secure Payment Checkout
Description
Hioki CT7812
- Exceptional performance in a compact package
- Easy to install in confined locations with complex wiring
- Rated current: 2 A AC/DC
- Bandwidth: DC to 100 kHz

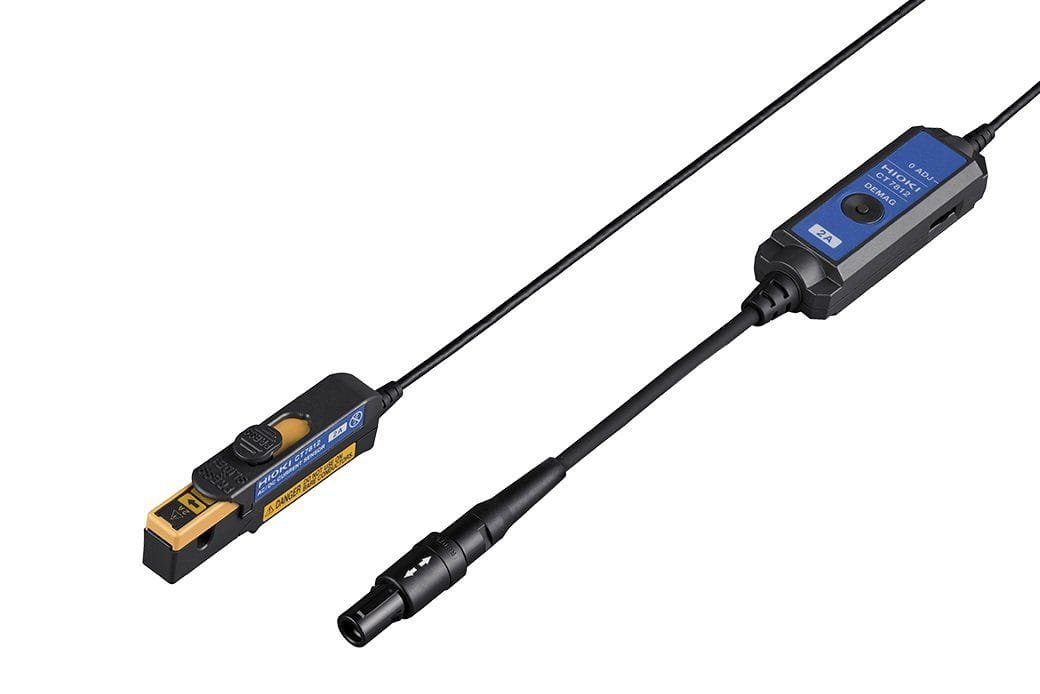

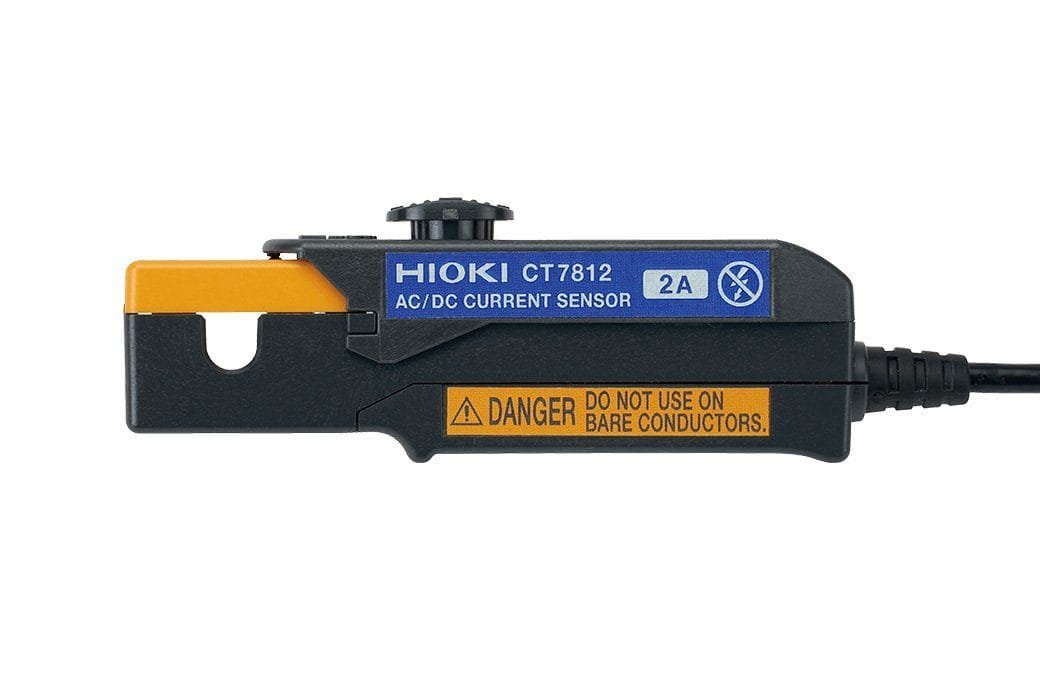

AC/DC Current Sensor (2 Amp, 5 mm)
The CT7812 is a clamp current sensor that can perform highly precise measurements of AC and DC currents of up to 2 A. It has excellent frequency (amplitude and phase) and temperature (sensitivity and offset) characteristics and can be used for current measurement and high-precision power measurement.
Several Versions Available
Please see the table below for a comparison of some of the probes and sensors available.
| Compatibility (Hioki Products Only) | Measurement Current | |
| CT6830 | Power Analyzers/HiCorder 3-Ch Current Unit | 2 Amp AC/DC |
| CT6831 | Power Analyzers/HiCorder 3-Ch Current Unit | 20 Amp AC/DC |
| CT7812 | Data Loggers | 2 Amp AC/DC |
| CT7822 | Data Loggers | 20 Amp AC/DC |
Compact, Non-Contact, and High-Accuracy
- Multiple sensors can be easily installed, even in confined spaces and locations with complex wiring.
- Compact sensor makes possible high-performance, high-accuracy measurement.
Broad Operating Temperature Range
- Operating temperature range: -40°C to 85°C
- Low-level DC current can be measured with a high degree of accuracy, even in environments where the ambient temperature varies.
Clamp Meters/Current Clamp Adaptors / Current Clamps Template | |
|---|---|
| Type (Current Clamp Adaptors | CT |
| Maximum Current AC | 3 A |
| Maximum Current DC | 3 A |
| Maximum Conductor Size | 5 MM (0.197 IN) |
Product General Attributes | |
| Warranty | 3 YEARS |
| Warranty Details | Accuracy guaranteed: 1 year |
