Hioki FT6031-50 – Earth Tester

Hioki FT6031-50 – Earth Tester

Tough and Ready for the Field IP67 Dustproof and Waterproof

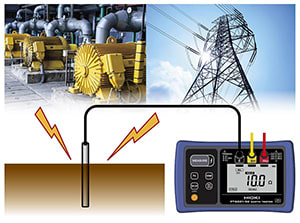

Earthing or grounding of electrical equipment is essential to maintain safety, protecting lives, as well as prevent damage to equipment. The FT6031-50 is a IP67 dustproof and waterproof two-pole or three-pole ground resistance tester with large, easy-to-read display, highly sensitive earthing rods, and innovative cable winder that significantly reduces the amount of time needed to complete earth resistance tests.

Wireless communication capability for even greater convenience

Compatible with Wireless Adapter Z3210 (optional). It transfers measurements to your smartphone or tablet and allows you to quickly create reports with field photos and drawings.

Dustproof and waterproof enclosure for robust performance in the field

IP67 dustproof and waterproof Since the FT6031-50’s enclosure is designed to keep out dust, it can be used with peace of mind in settings where it would be exposed to mud and dust. And if the instrument gets dirty, it can be rinsed clean with water.

Using a grounding resistance meter: Two-pole and three-pole methods

You can select from two grounding resistance measurement methods (two-pole or three-pole). The instrument switches the internal connection automatically when the selection key is pressed, so there is no need to connect a short bar or other fixture.

Three-pole method:
Measure grounding resistance after inserting supplemental grounding rods into the ground.

Two-pole method:
Class D ground installations can be measured by using the Class B ground of a pole-mounted transformer.

Dramatically faster measurement setup thanks to superior ease of use and digital operation

The FT6031-50’s supplemental grounding rods are thin, making it easier to insert them into, and remove them, from the ground. The rods are made of rigid, corrosion-resistance stainless steel. In addition, the allowable resistance of the supplemental grounding electrodes has been increased by a factor of 10. This enhancement eliminates the inconvenience of setting and resetting the rods over and over again when the allowable resistance is exceeded, for example in dry soil conditions.

Digital grounding resistance meter featuring easy operation

The FT6031-50 is extremely easy to operate: just press the MEASURE key. The instrument will automatically complete the following sequence of operations: ground potential check → supplemental grounding electrode check – grounding resistance measurement. Auto-range operation eliminates the need to switch ranges since the instrument automatically selects the optimal range.

Cord winders keep measurement cords from getting twisted or tangled

When measuring grounding resistance, it takes time to put away the long measurement cords. Hioki’s winders can rewind cord about twice as fast as the reels, dramatically reducing the amount of time needed to clean up after measurement.

Excellent noise resistance

Expanded allowable earth voltage range from 10 V rms to 25 V rms. Even in an environment where the earth voltage is 25 V rms, stable ground resistance can be measured.
