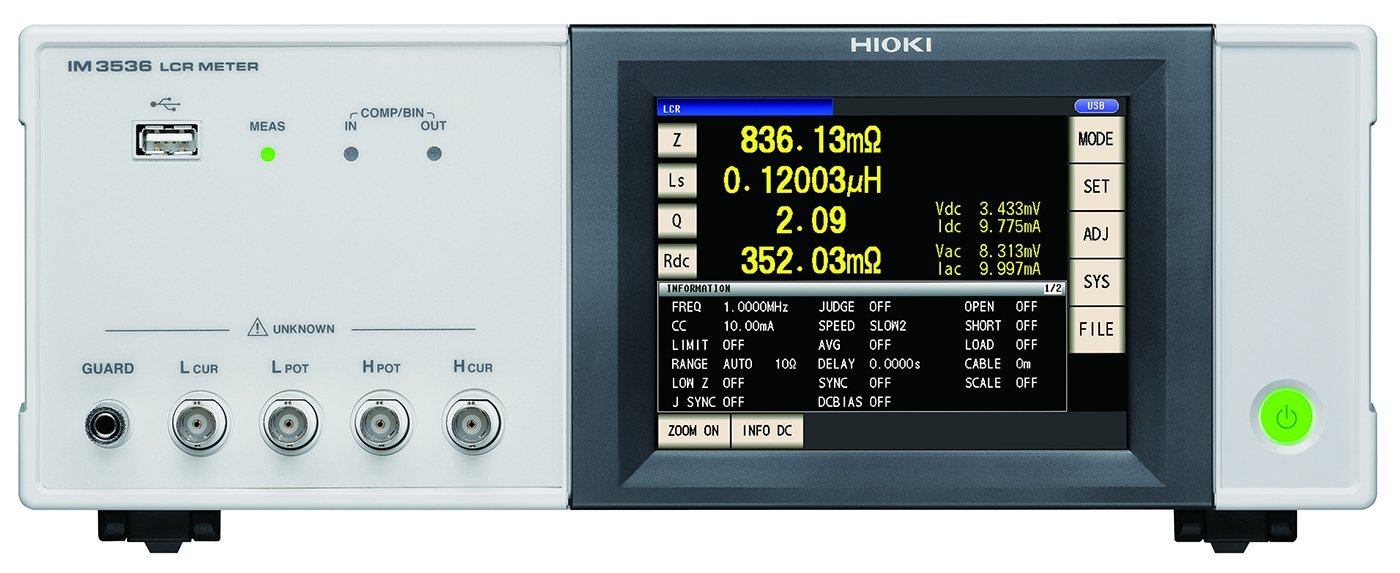

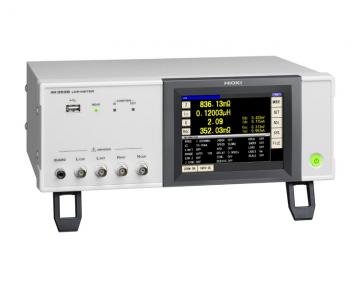

Hioki IM3536 (8MHz) LCR Meter

Hioki IM3536 (8MHz) LCR Meter

• DC, 4Hz to 8MHz measurement frequency
• High-speed measurement of 1ms (fastest time)
• High-precision measurement of ±0.05% rdg. (representative value)

The IM3536 delivers repeatability that is an order of magnitude better than that of previous products. This level of performance makes the instrument ideal for use in applications such as electrolytic capacitor low-ESR measurement and power supply coil impedance testing, the latter of which demands excellent frequency characteristics.

Hioki LCR and Impedance Analyzers range from 4Hz to 300MHz devices to suit a wide range of applications in the testing of electronic components. The IM3536 raises the industry standard for general-purpose LCR meters by offering a wide DC and 4Hz to 8MHz testing frequency while delivering 0.05% accuracy, ideal for evaluating the characteristics of next generation electronic components, including power supply inductors thanks to the instrument’s maximum measurement frequency of 8MHz.

One-eighth the precision variability and five times the measurement speed of legacy models means dramatically improved productivity.

High speed Stability

Guaranteed accuracy range from 1 mΩ

The IM3536 delivers a guaranteed accuracy range that starts at 1 mΩ. Furthermore, the frequency band has been expanded to 8 MHz, broadening the array of measurement targets with which it can be used compared to legacy products.

Low-impedance measurement with unmatched repeatability

The IM3536 delivers repeatability that is an order of magnitude better than that of previous products. This level of performance makes the instrument ideal for use in applications such as electrolytic capacitor low-ESR measurement and power supply coil impedance testing, the latter of which demands excellent frequency characteristics.

Graphs illustrate the results of measuring a resistance of 1 mΩ 200 times under the following conditions:

• Frequency: 1 kHz
• Measurement speed: FAST
• Measurement range: 100 mΩ
