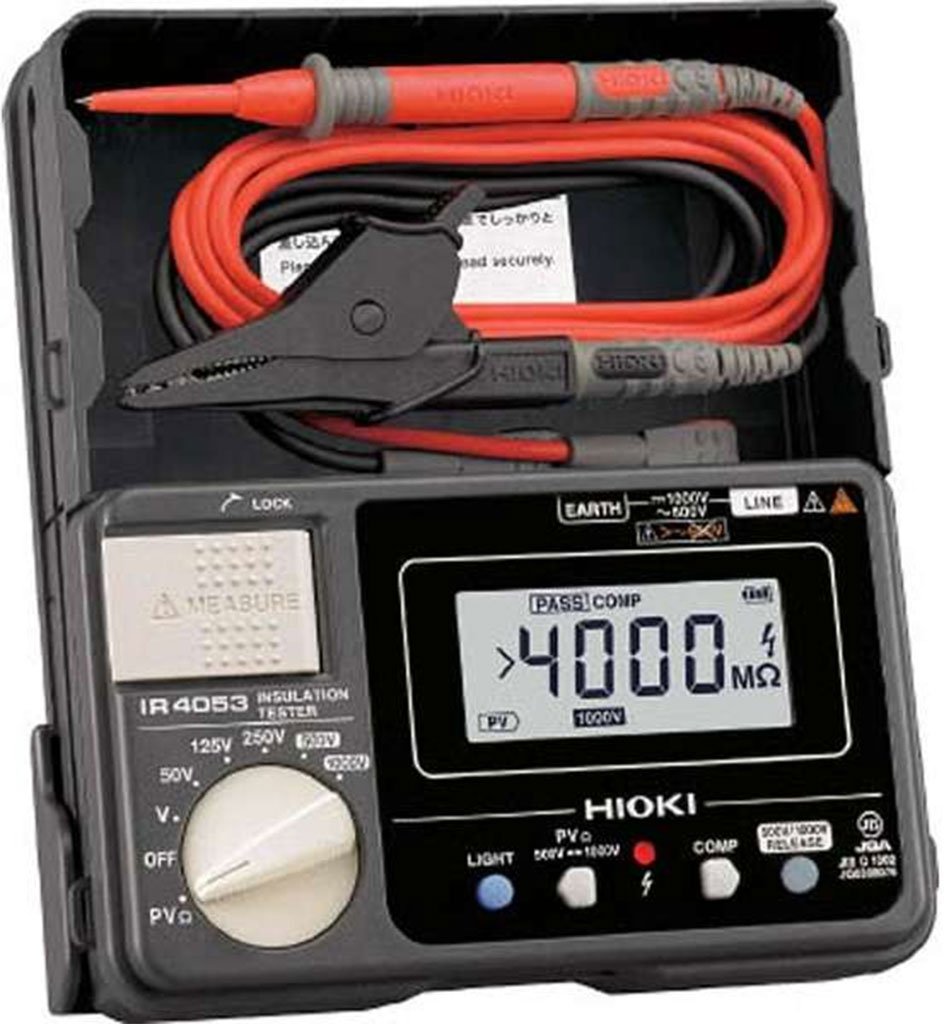

Hioki IR4053-10 Insulation Tester
25 people are viewing this product right now
$365.00
Shipping calculated at checkout.
Estimated delivery:5 days
Digital Insulation Tester for Photovoltaic Generation Systems. Bundled with standard Test Lead L9787.
- Safely and accurately measure PV insulation resistance even while generating solar power
- Built-in PV dedicated function, display measurements in 4 seconds
- Five ranges (50/125/250/500/1000V) built in for normal insulation resistance measurement
- Built-in 1000 VDC voltage measurement for open voltage tests of PV systems that support 1000 V
- Built-in comparator function
- Drop proof design withstands drop onto concrete from a height of 1 meter
Guarantee Safe and Secure Payment Checkout
Description
Hioki IR4053-10
- Safely and accurately measure PV insulation resistance even while generating solar power
- Built-in PV dedicated function, display measurements in 4 seconds
- Five ranges (50/125/250/500/1000V) built in for normal insulation resistance measurement
Digital Insulation Tester
The Hioki IR4053 is a digital insulation resistance tester for photovoltaic generation systems. Measure insulation resistance accurate and safely without being affected by generated solar power and identify the value in just 4 seconds.
Measurement not affected by generating PV
The IR4053, which was designed for PV, can accurately measure insulation resistance without being affected by the generating PV.
Accurate and safe measurement without creating shorts
Normally, to accurately measure the insulation resistance of a generating PV, one needs to short the measured circuit. That’s not necessary with the IR4053. (Left figure: Short-circuit switch).
Displays measurement in 4 seconds
The IR4053 displays the measured value just 4 seconds after starting measurement. After the first display, the displayed value is updated each second. Comfortably carry out swift measurements.
Measurement that does not involve a short-circuit

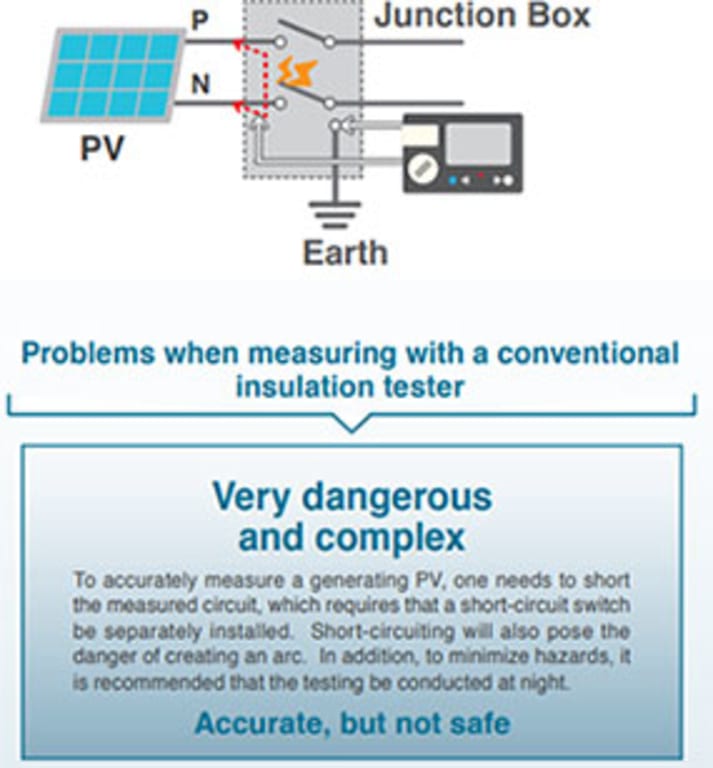

Measurement that involve a short-circuit
Micro / Milli / Meg Ohmmeters/Megohmmeter / Insulation Resistance Testers Template | |
|---|---|
| IR Test Voltage | 1,000 V, 125V, 250 V, 50 V, 500 V |
| Maximum Insulation Resistance | 4000 M Ohms (4 G Ohms) |
| Minimum Insulation Resistance | 100 M Ohms (0.1 G Ohms) |
| Display (Megohmmeter) | Digital |
| Power Supply | Battery |
Product General Attributes | |
| Warranty | 1 YEARS |
| Warranty Details | HIOKI’s product warranty extends for a period of one year from the date of purchase. (If the date of purchase is unknown, the warranty extends for a period of one year from the date of manufacture.) During this period, HIOKI will repair or replace free of charge any product suffering from a malfunction deemed to be the manufacturer’s responsibility. Products labeled as having a three-year warranty are covered for a period of three years from the date of purchase (or if the date of purchase is unknown, a period of three years from the date of manufacture). |
| Safety Approval | CE |
| Product Weight | 600 GRAMS (1.32 LBS) |
| Product Height | 177 MM (6.97 IN) |
| Product Width | 159 MM (6.26 IN) |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Japan |
| Other Information | Depth:: 53mm |
You must be logged in to post a review.
Manuals/Guides
| Weight | 600 lbs |
|---|---|
| Dimensions | 159 × 177 in |
