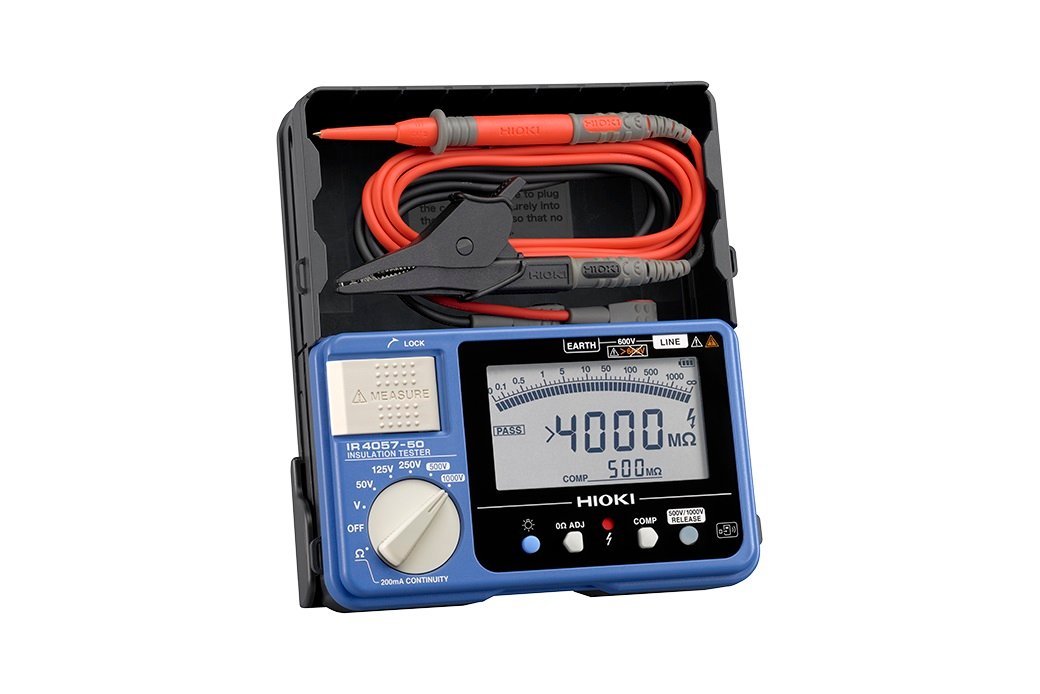

Hioki iR4057-50 – High-Speed Insulation Resistance Tester

• Wireless Adapter Z3210 sold separately
• Easily transfer measurement data to your smartphone or tablet by using our free app GENNECT Cross or to an Excel file. (Wireless Adapter Z3210 is necessary)
• 5-range testing voltage of 50 V/100 MΩ to 1000 V/4000 MΩ
• Digital bar graph
• Stable & high-speed digital readings, 0.3 second response time for PASS/FAIL decisions

Hioki insulation testers or megohmmeters feature all-in-one designs including　built-in rugged cases and test lead storage compartments. The IR4057-50 is a 5-range, 50 V to 1000 V digital insulation resistance tester with bargraph and delivers efficient functions and features to help shorten work time associated with field insulation testing.

Compare measured values to pre-set reference values to generate a pass or fail judgment with the Comparator function.

The insulation testers give you pass/ fail results using a beeping sound, LCD light, and indication right on the test lead with remote control switch*, letting you check for insulation integrity without needing to look at the instrument.

* Image shows L9788 probe. Sold separately.

The scale is lit by a white LED, ensuring that insulation resistance values are easy to read, even when using the instrument in a dim location.

The instrument’s measurement switch can be operated with just the thumb.

Press for a single measurement or lift up for continuous measurement of insulation resistance.

* Image shows model IR4016. IR4057 is a digital meter.

• Compatible with Wireless Adapter Z3210 (sold separately)
• Transfers measurements to your smartphone or tablet and allows you to quickly create reports with field photos and drawings.
• Use with free Gennect Cross mobile app available from Hioki
