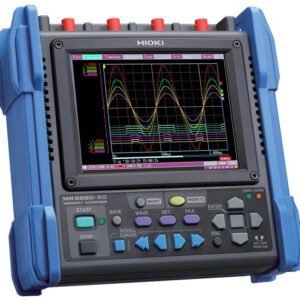

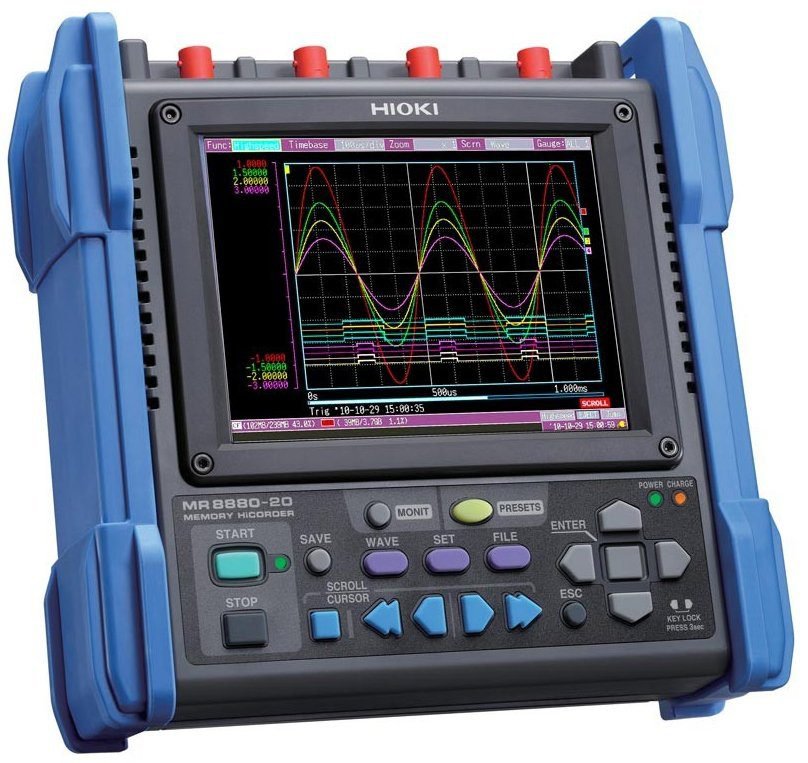

Hioki MR8880-20 Memory Recorder 4 Channel Fixed Inputs

4 Channel Analog Fixed Input Memory Recorder

Engineered for use in extreme environments

CAT III 600V class design, the Hioki MR8880-20 Memory HiCorder 4 Channel Analog Fixed Input Memory Recorder can directly measure high voltages of up to 600V at demanding plants and other facilities. The recorder also features an extended operating temperature range of -10°C to 50°C and complies with JIS automotive vibration standards, demonstrating its ability to withstand the harsh measurement environments associated with automotive development.

Measure 3-phase power lines thanks to standard 4 channels of input

The Hioki MR8880-20 Memory HiCorder can perform isolated measurement using its 4 channels of analog input, allowing it to measure 3-phase power lines.

Simple operation with the PRESETS configuration navigator function

In the past, customer feedback has indicated that electrical measuring instruments are excessively difficult to configure and operate. The Hioki MR8880-20 PRESETS configuration navigator function addresses these concerns by allowing users to simply select an application—for example, measuring a commercial power supply or monitoring a line for a voltage drop—and follow the on-screen instructions to configure the instrument.

Print measurement data on-site with the optional printer

An optional A6-size printer can be used to print waveforms in the field, making it easier to hold effective evaluations at job sites. Data can also be stored in external storage media.

The Hioki MR8880-20 4 Channel Analog Fixed Input Memory Recorder provides a turnkey solution for both high-speed measurement at 1 MS/s and long-term measurement. Its ability to measure everything from high-to-low voltage signals allows it to play an important role in a variety of measurement scenarios.
