Hioki PW3360-21/5000Pro-7in KIT – Demand Analyzer (Harmonic Analysis, 3 X CT9667-02, 9445-02, 3 In 1 AC Flex Adapter, SF1001, Z4001, PW9002, PW3360 H-CASE)
40 people are viewing this product right now
$3,932.50
Shipping calculated at checkout.
Estimated delivery:5 days

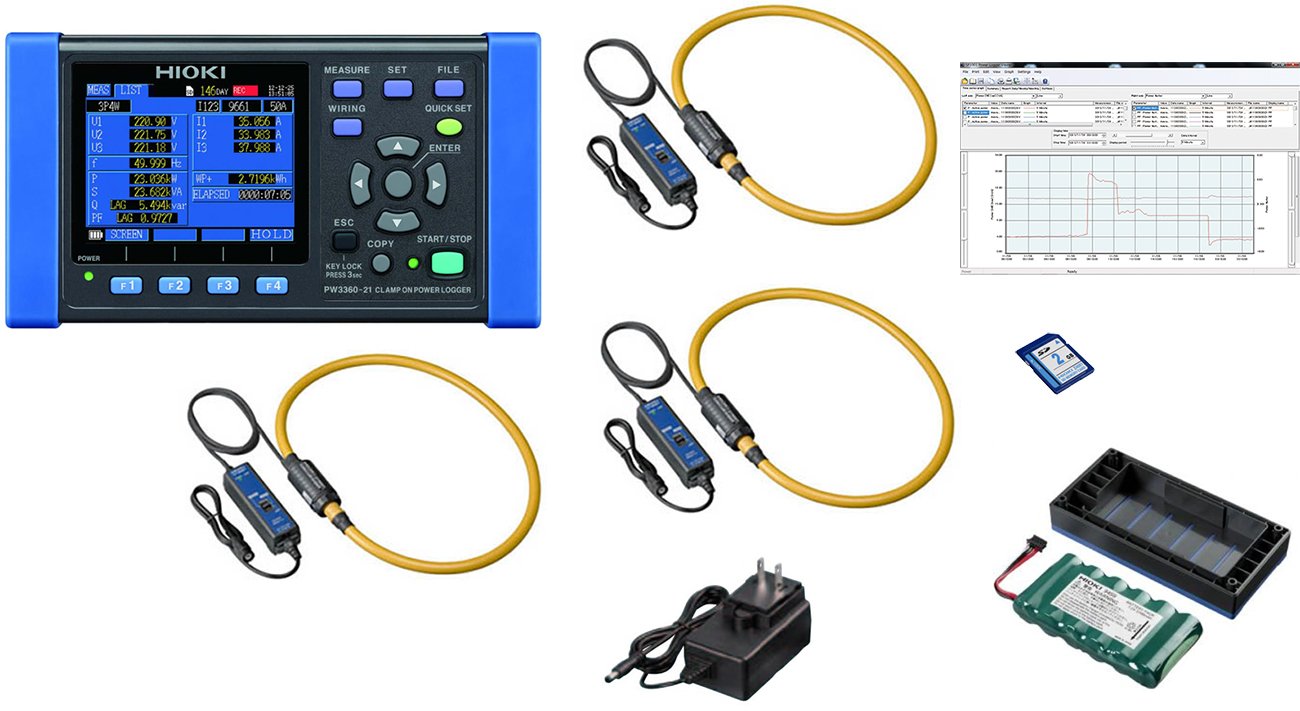

5000 A Power Demand Analyzer Kit (PW3360-21 W/ 3 X CT9667-02, 9445-02, 3 in 1 AC Flex Adapter, SF1001, Z4001, PW9002, PW3360 H-CASE)
- Supports single to three-phase, 4-wire circuits
- Measure between 90V to 780V
- Simultaneously measure up to three single-phase, 2-wire circuits (in the same power system)
- Slim, compact design that can be placed anywhere
- Store months of data on SD cards
- The QUICK SET function guides you in making the right connections
- Harmonic measurements up to the 40th order
- Kit includes 3 x AC flexible current sensors (CT9667-02)
- Image is for representation only; accessories may differ slightly from those pictured
Guarantee Safe and Secure Payment Checkout
Description
Hioki PW3360-21/5000Pro-7in KIT
- Supports single to three-phase, 4-wire circuits
- Measure between 90V to 780V
- Simultaneously measure up to three single-phase, 2-wire circuits (in the same power system)
- Slim, compact design that can be placed anywhere
- Store months of data on SD cards
Demand Analyzer (Harmonic Analysis, 3 X CT9667-02, 9445-02, 3 In 1 AC Flex Adapter, SF1001, Z4001, PW9002, PW3360 H-CASE)
The PW3360 compact 3-Phase 4-Wire energy loggers monitor power demand and other power parameters to aid in energy audits and validate energy saving measures. The PW3360-21 has a harmonic analysis function.
Navigate Clamp-On Power Logger Operation with Graphical, Easy-to-Use Displays of Wiring Procedures
The PW3360’s QUICK SET feature is an on-screen guide that walks you through the setup process, right up to starting measurement. Even if you’re unaccustomed to how clamp-on power loggers work, you’ll be able to easily configure and connect the instrument for 3-phase power measurement. In addition, by alerting you to any wiring mistakes, the device’s “wiring check” function serves to prevent measurement errors that are caused by undetected wiring mistakes.
Power Logger Functionality for Displaying Measurement Results as a Graph so You Can Review Them at a Glance
The PW3360 displays recorded measured values as a graph for convenient use in power management. In addition to instantaneous measured values, you can review maximum, minimum, and average values by moving the cursor on the demand and trend graph displays.
A Portable Power Logger that’s Small Enough to Use in a Confined Space
This power logger is an essential tool for power-saving activities. Thanks to a compact design that weighs just 550 g, it’s easy to take into the field and install in confined locations.

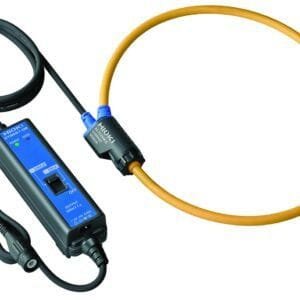

AC Flexible Current Sensors (CT9667-02)
- Thinner cables are easy to use in confined spaces and with complicated wiring
- Shaped so that it’s easy to route through complex wiring
- Easily supports large current measurements up to 5000 A
- Wide 10 Hz to 20 kHz band with excellent frequency characteristics
- Maximum 7-inch diameter conductor size
Power Measurement/Power Loggers Template | |
|---|---|
| Input(power loggers) | Single Phase, Three Phase |
| Type(Power loggers) | Digital |
| Maximum Current AC | 5000 A |
| True RMS | Yes |
| Current Input Channels | 1, 2, 3 |
| Voltage Input Channels | 1, 2, 3 |
| Measurement Frequency | 50 Hz, 60 Hz |
| Energy | Yes |
| Power Factor (Power Quality) | Yes |
| Harmonics | Yes |
| Total Harmonic Distortion | Yes |
| Current Clamps Included | Yes |
Product General Attributes | |
| Interfaces I/O | USB |
| Storage | Internal Memory, SD Card |
| Data Logging | Yes |
| Battery Type | NimH |
| Power Supply Voltage | 120V 50/60 Hz |
