Hipotronics 30HVT-DI – 30kV AC Digital Interface Portable Hipot Tester
40 people are viewing this product right now
$16,817.77
Shipping calculated at checkout.
Estimated delivery:4 days
AC Hipot, 30kV AC, 10mA, Digital Interface
- 0-30kV AC Hipot tester, digital controller
- Environmental friendly FR3 transformer oil
- Lightweight, rugged design for field use
- Recorded test results and data transfer via USB2.0
- 7″ color, touch screen display with adjustable brightness
- Safe operation with interlock, emergency stop, and battery backup for display meters if the input power is lost
- Measures output voltage, leakage current, impedance, and phase angle
- Adjustable test parameters such as target voltage, maximum leakage, ramp rate and dwell time
- Minimal setup time and simple control panel
- Most accurate current measurement and guard circuit designed to eliminate stray leakage currents
- Meets ANSI/SIA A92.2 test specifications
Guarantee Safe and Secure Payment Checkout
Description
Hipotronics 30HVT-DI 30kV AC Digital Interface Portable Hipot Tester
30kV AC Hipot Tester
- Lightweight, rugged design for field use
- Recorded test results and data transfer via USB2.0
- 7″ color, touch screen display with adjustable brightness
- Measures output voltage, leakage current, impedance, and phase angle

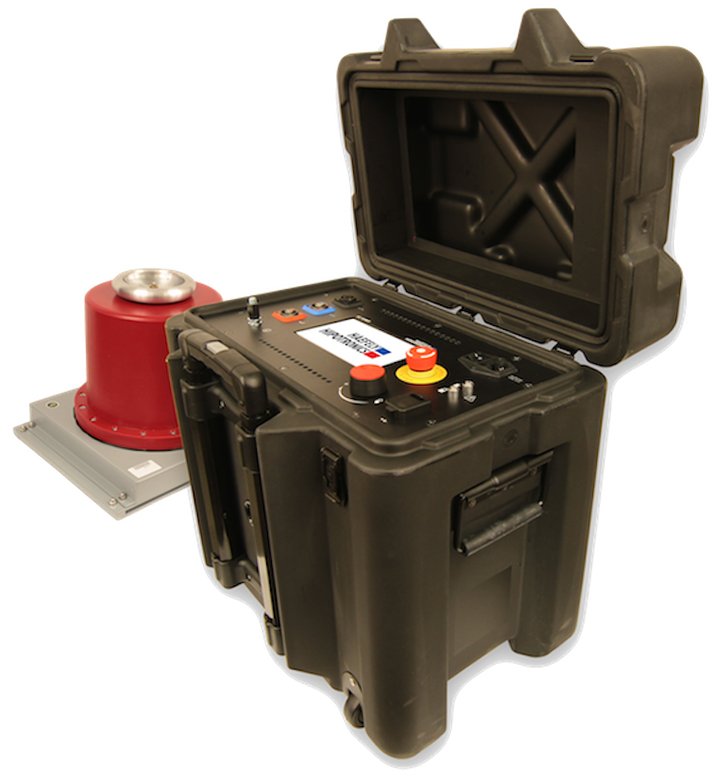

The HVT-DI Series AC Hipot Testers are the most modern digital solution to AC field-testing of bucket trucks, aerial platforms, vacuum interrupters, breakers, switchgear, and other electrical apparatus. Each model includes a portable digital controls section and bonnet and is complete with an input line cord, interconnecting cable and ground leads.
HVT-DI Series
The 120kV model is specifically designed for ANSI/SIA A92.2 specification procedures for testing insulating booms on work platforms and bucket trucks. Whereas, the 30kV and 60kV models are designed to perform quick and accurate AC dielectric tests. In addition, the 100kV model is designed for higher output current, up to 100mA at the 50kV tap.
The HVT Digital series assures accurate voltage and current measurements using a high voltage divider and double current meter in the return leg of the high voltage transformer. A guard circuit prevents stray or surface leakage from being measured by the current meter. To ensure safe operation the unit is equipped with a fast-acting fuse, an external interlock, and E-Stop.
Benefits
- Ideal for field testing applications
- Minimal setup time and simple control panel
- Most accurate current measurement and guard circuit designed to eliminate stray leakage currents
Applications
- Aerial Platform
- Bucket Truck
- Switchgear, Vacuum Bottles, and Vacuum Interrupters
- Hot Sticks, Gloves, and Ropes
- Hydraulic Hoses
Safety Testing / Surge Testing/Hipot Tester Template | |
|---|---|
| Test Type Hipot | AC |
| Max AC Test Voltage | 30 kV |
| Max Trip Current AC Test | 10 mA |
Product General Attributes | |
| Unique Features | Controller has a digital interface The 30kV and 60kV models are designed to perform quick and accurate AC dielectric tests. Safety of zero start and external interlock prevent high voltage from being energized until operator is ready. Minimal setup time and simple control panel. |
| Warranty | 1 YEARS |
| Shipping Weight | 175 LBS |
| Power Supply Voltage | 120V 50/60 Hz |
| Country of Origin | United States |
