Hipotronics HD115-A – 15kV DC, 12.5kV AC Benchtop Hipot Tester

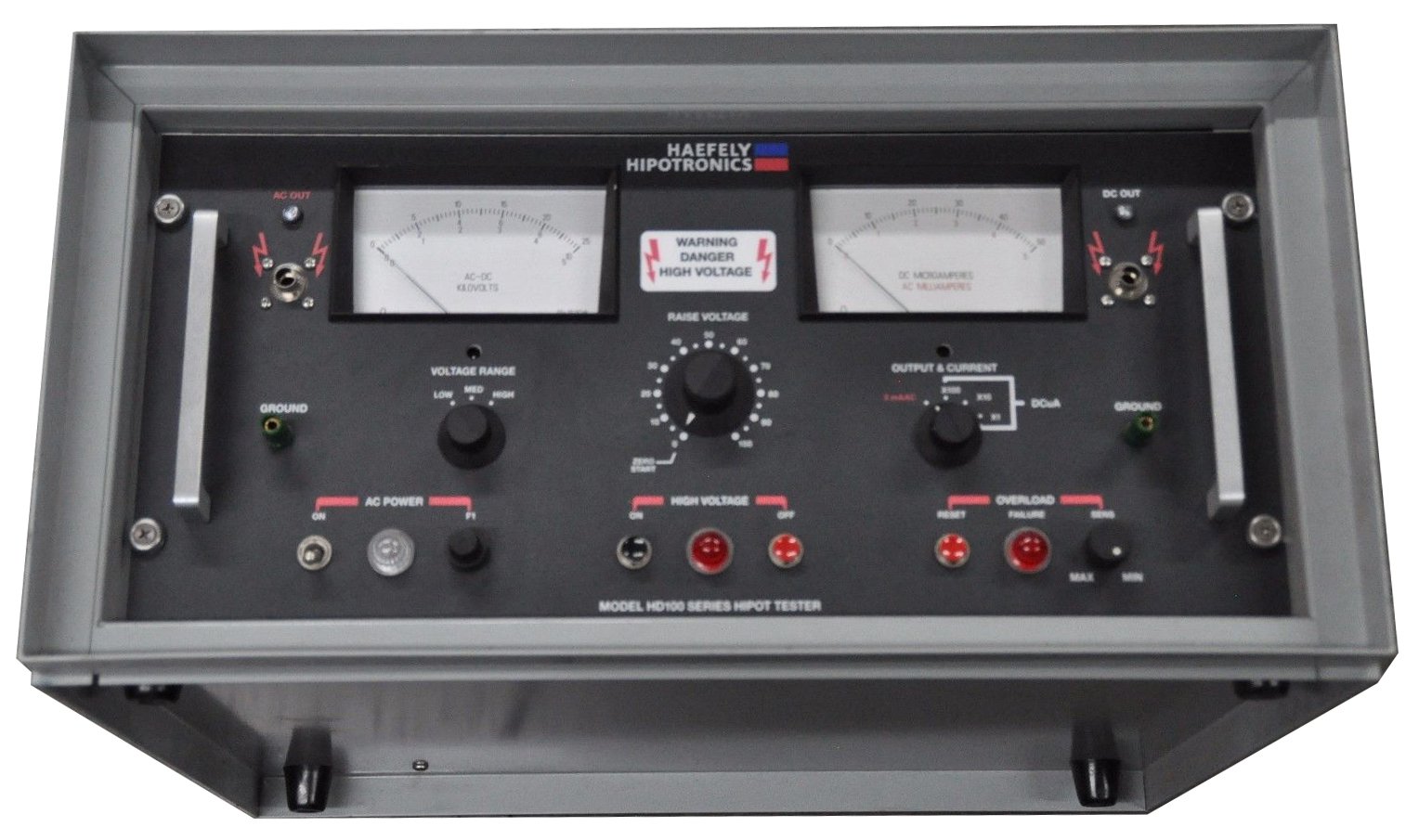

Hipotronics HD100 Series Benchtop AC & DC Hipot Tester

The HD100 Series Benchtop AC and DC [Hipot testers] are accurate and durable instruments designed to perform hipot tests on all types of electrical products, systems, and components. They are simple to operate and are designed for use by unskilled or semi-skilled personnel in production testing for AC and DC dielectric withstand testing.

The AC/DC output configuration eliminates the need for purchasing separate AC and DC hipots. Output connected voltmeter ensures accurate voltage measurements regardless of output loading. they are capable of testing to most industry specifications such as UL, CSA, VDE, IEC, and MIL for dielectric withstand testing. This product contains an environmentally-friendly natural ester-based fluid made from renewable vegetable-based oil.

Benefits

• Two Tests in One Unit: eliminates need for purchasing separate AC and DC Hipots
• Operator Safety: the power supply and test object are automatically grounded when high voltage is turned off
• Meets industry Specifications: tests to most UL, CSA, VDE, IEC, MIL for dielectric withstand testing
• Rack Mountable: easy installation into a standard 19″ rack

Applications

• Capacitors
• Wire and Cable
• Transformers
• Connectors
• Medical Devices
• Coils and Chokes
• Appliances
• Other Electrical Apparatus
