HOBO by Onset T-MAG-SCT-600 – 600 AMP Split-core AC Current Transformer
21 people are viewing this product right now
$93.50
Shipping calculated at checkout.
Estimated delivery:4 days
HOBO by Onset T-MAG-SCT-600 – 600 AMP Split-core AC Current Transformer
- Rated input from 60 to 600 AMP
- Output 0.333 Volt AC at rated current
- Linearity accuracy ± 1%
- Accuracy at 10% to 130% of rated current
- Split-core design for fast, easy installation
- 8 ft. (2.44m) 22 AWG twisted pair leads
- 2.00” Opening
Guarantee Safe and Secure Payment Checkout
Description
HOBO by Onset T-MAG-SCT-600
- Rated input from 60 to 600 AMP
- Output 0.333 Volt AC at rated current
- Linearity accuracy ± 1%
- Accuracy at 10% to 130% of rated current
- Split-core design for fast, easy installation

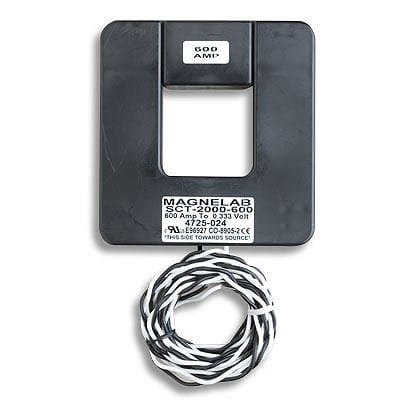

600 AMP Split-core AC Current Transformer
The Magnelab AC Current 600 Amp AC Current Transformer or CT (Magnelab part # SCT-2000-600) is mounted around a current carrying wire to measure AC Amperage. This CT provides 333mV output proportional to current and is used with the FlexSmart TRMS Module for True RMS measurement of sinusoidal and non-sinusoidal waveforms. The result is accurate current measurement for many types of equipment, including variable frequency drives and switched power sources. One or two CTs can be used with each FlexSmart TRMS Module.
Environment:
The T-MAG-SCT-600 Sensor is for use in Indoor environments.
Measurements:
The T-MAG-SCT-600 Sensor supports the following measurements: AC Current.
Current Sensors/Current Transformers Template | |
|---|---|
| Current Measured | AC |
| Maximum Current | 600 A |
| Minimum Current | 60 uA |
| Accuracy | Linearity accuracy ± 1% Accuracy at 10% to 130% of rated current. |
| Output | Voltage |
Product General Attributes | |
| Unique Features | Rated input from 60 Amp to 600 Amp |
| Safety Approval | CE, RoHS, UL |
| Product Height | 5.00 IN |
| Product Length | 1.20 IN |
| Product Width | 4.75 IN |
| Shipping Weight | 1.60 LBS |
| Country of Origin | United States |
| Shipping Height | 1.30 IN |
| Shipping Length | 5.50 IN |
| Shipping Width | 4.95 IN |
You must be logged in to post a review.
Manuals/Guides
Spec Sheets
| Weight | 1.6 lbs |
|---|---|
| Dimensions | 1.2 × 4.75 × 5 in |
