HT Instruments HT4003 AC Transducer Clamp Meter up to 400A
24 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:3 days
Transducer for AC currents 400A/0.4V – cable 2m – with banana connectors
- Field measurement: 1 ÷ 400A
- Output signal: 400mVCA
- Accuracy: 1.5% reading + 0.5A
- Overvoltage category CAT III 600V
- Cable Diameter Max: 30mm
- 2 x 4mm Safety Banana Leads
(Clamp not suitable for Power Measurements)
Guarantee Safe and Secure Payment Checkout
Description

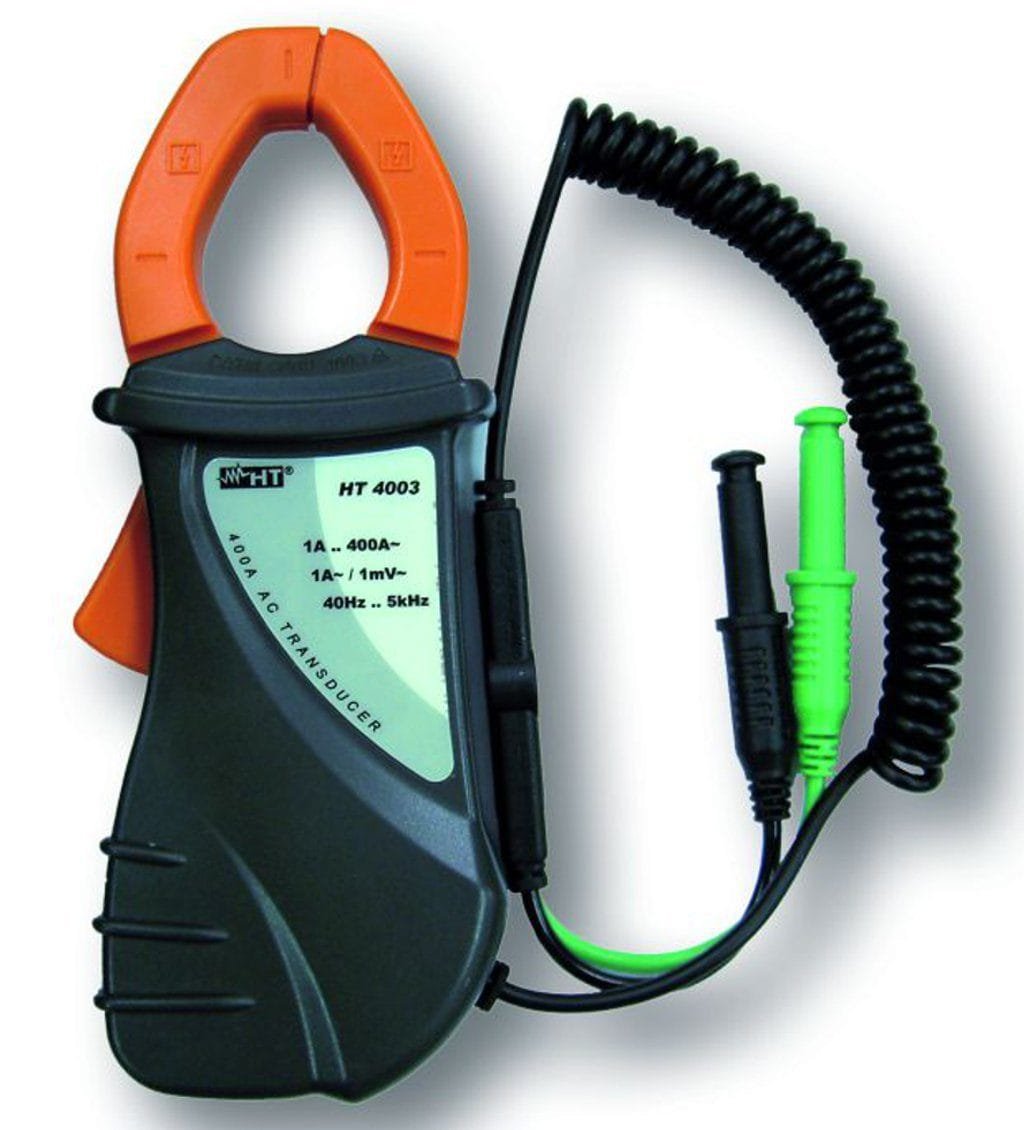

HT Instruments HT4003 AC Transducer Clamp Meter up to 400A
;) | The flexible and non-flexible clamps for the current measurement up to 3000A AC and the probes for the brightness, temperature and humidity measurement. All have a voltage output with a maximum of 1V AC. These adapters can be used with any properly designed equipment type, precision multimeter, recorder and data logger. Transducer clamp for AC currents 400A/0.4V , cable 2m – with banana connectors. Field measurement: 1 ÷ 400ACA, Accuracy: 1.5% Reading + 0.5A, Output signal: 400mVCA, Over voltage category CAT III 600V, Max Cable Diameter: 30mm. (Clamp not suitable for power measurement). <– Take care about Conventional Power Direction (see picture on side) |
Clamp Meters/Current Clamp Adaptors / Current Clamps Template | |
|---|---|
| Type (Current Clamp Adaptors | CT |
| Maximum Current AC | 400 A |
| Maximum Conductor Size | 1.18 IN |
Product General Attributes | |
| Product Weight | 195 GRAMS (0.430 LBS) |
| Product Height | 30 MM (1.18 IN) |
| Product Length | 195 MM (7.68 IN) |
| HTS/Schedule B Number | 90303330 |
| ECCN Number | 8.0331E+12 |
| Country of Origin | Taiwan |
| Other Information | |
You must be logged in to post a review.
Manuals/Guides
| Dimensions | 195 × 30 in |
|---|
