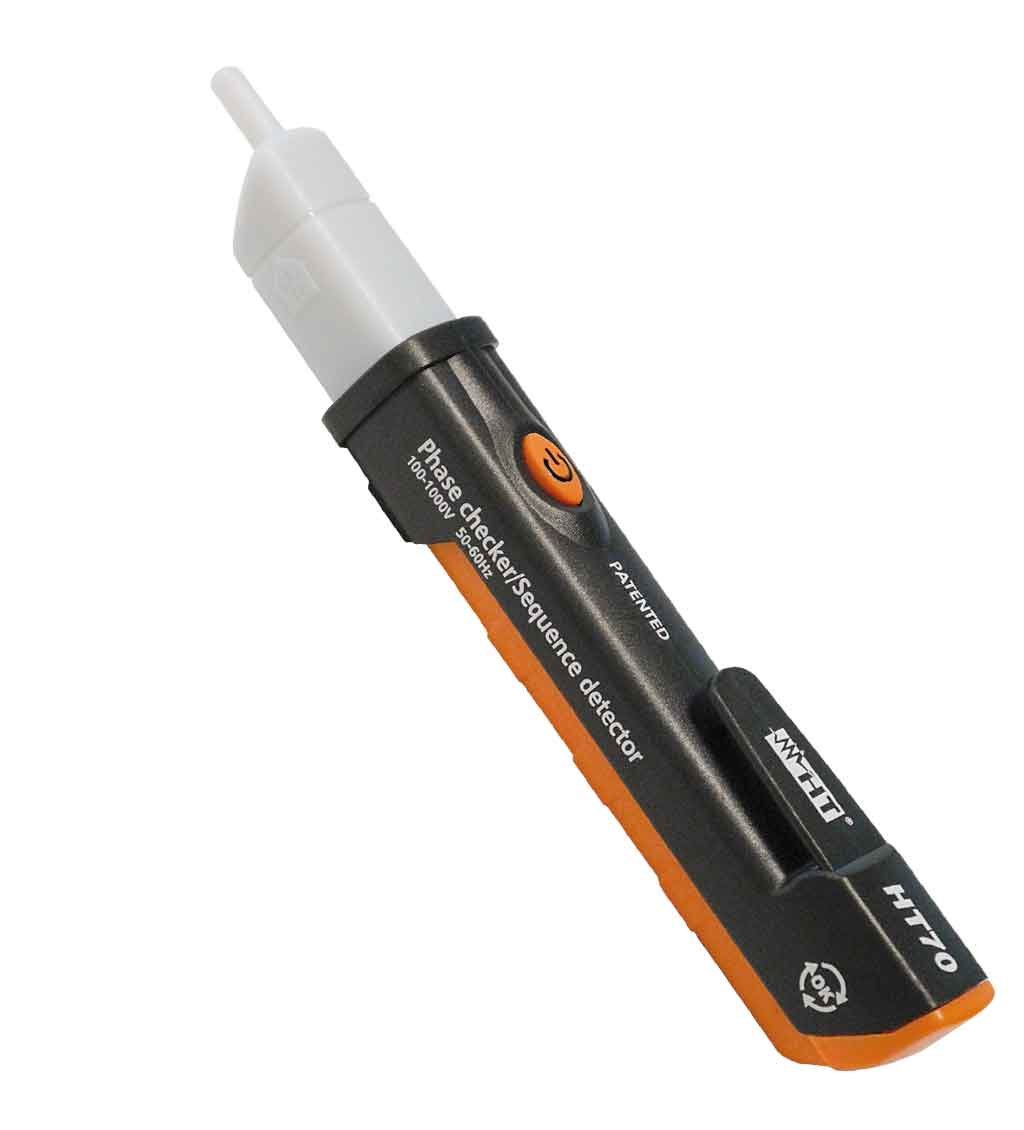

HT Instruments HT70 Sequence Indicator and Conformity Test
40 people are viewing this product right now
$53.90
Shipping calculated at checkout.
Estimated delivery:4 days
Voltage stick with phase sequence tester
- Detection AC voltage from 100V to 1000V to ground
- Phase sequence and conformity test with 1 wire method
- Working frequency: 50/60Hz
- With a without contact measurements
- LED red and buzzer indication
- Practical pen clip
- Safety: IEC/EN61010-1, CAT IV 1000V
- Rounded tip will fit European 230v outlets only
Guarantee Safe and Secure Payment Checkout
Description

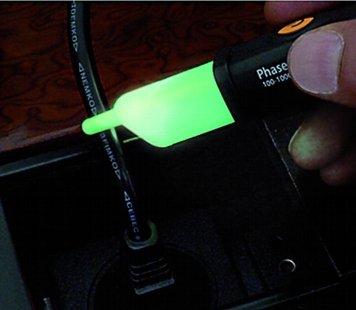

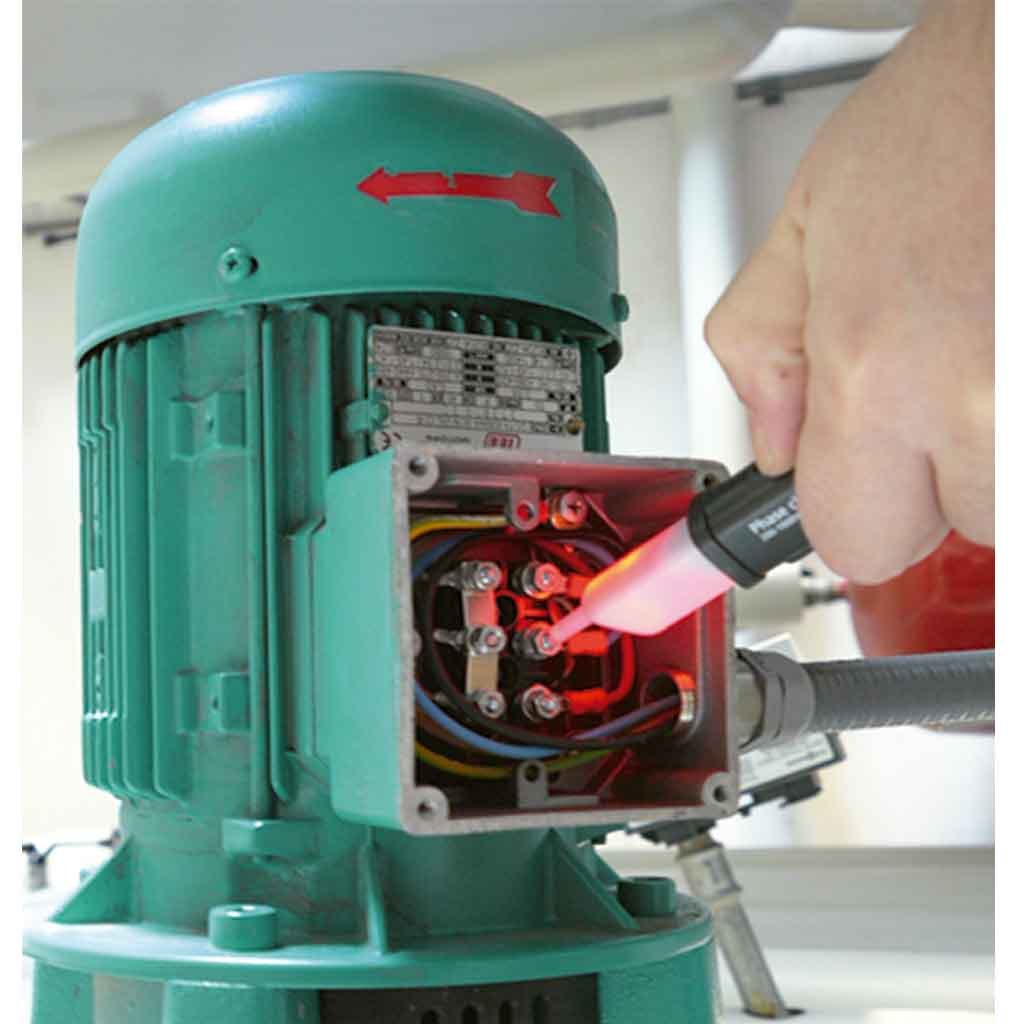

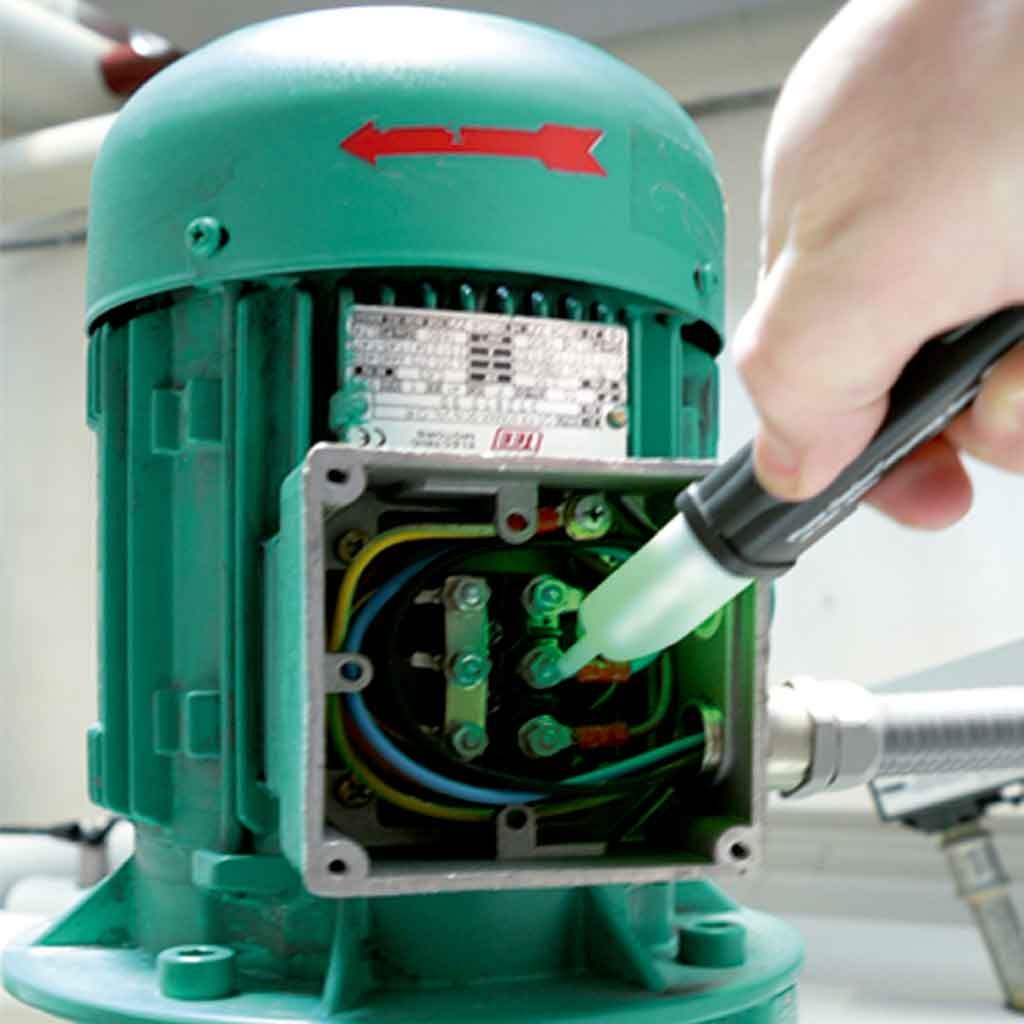

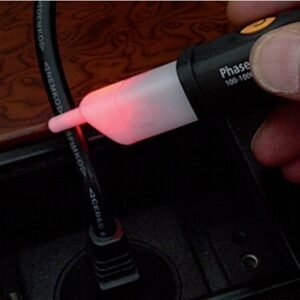

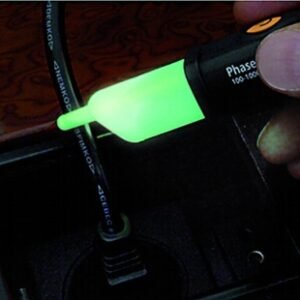

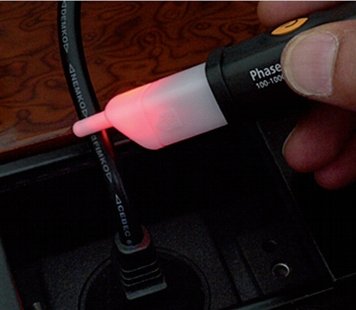

The HT70 pen voltage detector permits both to quickly verify the presence of AC voltage on any type of electrical installation (sockets, cables, fuses, switchboards, etc.) with and without direct contact and also to perform phase sequence indication and conformity test on generic three phase plants by using red and green fixed and blinking LED indications. HT70 is designed according to IEC/EN61010-1 safety standard in CAT IV 1000V. Please note, this product has a rounded tip, which will only fit inside 230v European outlets.
Product General Attributes | |
|---|---|
| Unique Features | Detection AC voltage from 100V to 1000V to ground Phase sequence and conformity test with 1 wire method Working frequency: 50/60Hz LED red and buzzer indication |
| Safety Approval | CE Safety Approval EMC 2004/108/CE Directive |
| Product Weight | 48 GRAMS (0.1058 LBS) Product Weight Included batteries |
| Product Height | 20 MM (0.787 IN) |
| Product Length | 160 MM (6.30 IN) |
| Product Width | 26 MM (1.02 IN) |
| HTS/Schedule B Number | 90303330 |
| ECCN Number | 8.03377E+12 |
| Battery Type | AAA Battery Type 2×1.5V batteries alkaline type AAA NEDA24A LR03 |
| Power Supply Voltage | Battery Powered |
| Country of Origin | China |
| Shipping Height | 1.50 IN |
| Shipping Length | 10.00 IN |
| Shipping Width | 5.50 IN |
You must be logged in to post a review.
Manuals/Guides
| Weight | 48 lbs |
|---|---|
| Dimensions | 160 × 26 × 20 in |
