HT Instruments IDM70 Laser Meter Up to 70m with Bluetooth
19 people are viewing this product right now
$395.00
Shipping calculated at checkout.
Estimated delivery:4 days
Laser meter up to 70 mt. with bluetooth
- Direct measurement of distances from 0.05m to 70m
- Measurement resolution: 0.001m
- Area and Volume calculation
- Height measurement by indirect Pythagoras method
- Tilt angle and distance measurements
- 2 points and 3 points continuous (dynamic) measurements
- Laser pointer activation on measurements
- Setting of measurement reference
- Selection of m or ft measurement units
- Management operation with internal memory
- Bluetooth connection with iOS/Android devices
- Tubular spirit level
- Tripod mount
- High contrast backlight display
- Buzzer activation on keys
- Auto Power OFF
Guarantee Safe and Secure Payment Checkout
Description
HT Instruments IDM70 Laser Meter Up to 70m with Bluetooth
Professional laser distance meter for measures up to 70m and Bluetooth connection with iOS and Android devices.
The model iDM70 is a professional laser meter designed to measure distances between two points in a simple, fast and efficient way thanks to the integrated laser pointer and small size which make it a completely portable tool for use in every situation and in any application (buildings, electricity sector, DIY, etc…) where it may be necessary to perform a measure of linear length.
The tool also allows you to perform calculations of areas and volumes and the indirect measure of heights 2 points and 3 points by using the trigonometric method and the principle of mathematical theorem of Pythagoras. The tilt angle measurement, a programmable timer and a small tubular spirit level for a perfect alignment of objects in the test are available features.

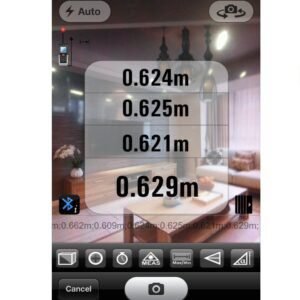

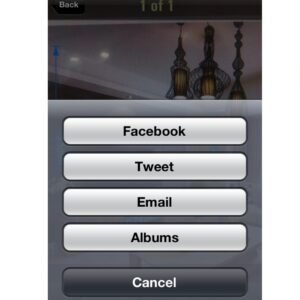

The management of simple operations with the internal memory (sums and subtractions) and a backlight display complete the features available for the instrument. A dedicated HT LaserMeter APP, free downloadable on both iOS/Android devices, allows to manage the results of measurements performed by the meter (by Bluetooth connection) in way to share information by e-mail and/or social network (Facebook, Twitter, etc).
Description of the Controls
Fig. 1: Instrument description
| Caption | Description |
| 1 | ON/MEAS key |
| 2 | Timer/Bluetooth key |
| 3 | Key for single/continuous distance measurement |
| 4 | Area/Volume key |
| 5 | Air bubble level |
| 6 | Key for saving measurement results |
| 7 | “ + ” key |
| 8 | OFF/CLR key |
| 9 | Reference setting key |
| 10 | Tilt/Dimension key |
| 11 | Key for indirect distance measurement |
| 12 | “ – ” key |
| 13 | Backlight/Measuring unit key |
| 14 | ON/MEAS key |
Display Description
Fig. 2: Description of the symbols at display
| Caption | Description |
| 1 | Active laser |
| 2/3 | Front/rear reference |
| 4 | Tripod reference |
| 5 | Instrument level + stand reference |
| 6> |  area, volume measurement |
| 7 |  indirect measures/tilt |
| 8 | Distance measurement with dimensions |
| 9 | Battery charge level |
| 10 | Distance measurement |
| 11 | Max and Min measurements in continuous mode |
| 12 | Instrument error message |
| 13 | Memory for partial data saving |
| 14 | Bluetooth symbol |
| 15 | Active timer symbol |
| 16 | Tilt symbol |
| 17 | First measurement partial value display |
| 18 | Second measurement partial value display |
| 19 | Third measurement partial value display |
| 20 | Last measurement value display and result |
Product General Attributes | |
|---|---|
| Unique Features | Direct measurement of distances from 0.05m to 70m Measurement resolution: 0.001m |
| Safety Approval | CE Safety Approval EMC 2004/108/CE Directive |
| IP Rating | IP54 |
| Product Weight | 160 GRAMS (0.353 LBS) Product Weight Included battery |
| Product Height | 30 MM (1.18 IN) |
| Product Length | 135 MM (5.31 IN) |
| Product Width | 53 MM (2.09 IN) |
| HTS/Schedule B Number | 90151090 |
| ECCN Number | 8.03377E+12 |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | China |
You must be logged in to post a review.
Manuals/Guides
| Weight | 160 lbs |
|---|---|
| Dimensions | 135 × 53 × 30 in |
