HT Instruments MERCURY – TRMS DMM with Infrared Camera
23 people are viewing this product right now
$1,754.50
Shipping calculated at checkout.
Estimated delivery:3 days
TRMS DMM with infrared camera
- Data logger function and real-time display of graphs of measured data
- DC, AC TRMS, AC+DC TRMS voltage up to 1000V
- DC, AC TRMS, AC+DC TRMS current up to 10A
- DC, AC TRMS, AC+DC TRMS current by means of external clamp transducer
- Measurement of frequency and duty cycle
- Resistance and buzzer for continuity test
- Measurement of capacitance
- Diode test
- Temperature measurement by means of external K-type probe
- MAX/MIN/PEAK/HOLD/REL functions
- Selectable sampling rate: from 1s to 15min
- Built-in white-light torch
- TFT high-contrast colour display (320x240pxl)
- 6000 measuring spots
- Measured data saving on micro SD card
- IP65 protection (dust-tight and washdown protection)
- Auto power OFF
Guarantee Safe and Secure Payment Checkout
Description
HT Instruments MERCURY – TRMS DMM with Infrared Camera
- Built-in white-light torch
- TFT high-contrast colour display (320x240pxl)
- 6000 measuring spots
- Measured data saving on micro SD card
- IP65 protection (dust-tight and washdown protection)
- Auto power OFF
HT Instrument MERCURY is a TRMS digital multimeter capable of measuring AC/DC voltage up to 1000V, AC/DC current up to 10A as well as resistance, continuity test, diode test, frequency, capacitance and temperature with K-type probe. Other major functions include AC+DC mode taking into account DC components overlapping AC signals and current measurement with standard and flexible transducer clamps (provided accessory F3000U). A camera with 80x80pxl resolution is built inside to get simultaneous readings of thermal and electrical values for the item under test. MERCURY is provided with Data Logger function capable of carrying out and saving recordings of every parameter as well as displaying the values’ diagram. Snapshots can be saved into BMP format inside a micro SD card supplied as accessory and Bluetooth permits connection with mobile devices (tablet/smartphone) through HTMercury APP creating reports to share measuring results. The instrument was designed in compliance with safety standards IEC/EN61010-1 with double insulation protection according to CAT IV 600V or CAT III 1000V. MERCURY is equipped with analogue bargraph LCD and each function can be selected by rotary switch. Additional functions include HOLD to keep displayed data, MAX/MIN, PEAK and Auto Power OFF to save the internal rechargeable battery.
App HTMercury
With HTMercury APP you can connect through Bluetooth to the MERCURY instrument in order to save Multimeter and IR image snapshots, perform recordings, advanced analysis and create and share PDF reports.
Function Data Logger
Advance Analysis
Image Gallery
Report CreationWhy Choose Mercury?
- As a single device, I carry out all measurements normally performed with multimeters and IR cameras.
- My built-in IR camera allows me to simply and quickly detect hot spots caused by electrical problems or malfunctions. Once repair works are completed, I can check whether the problem was solved or not

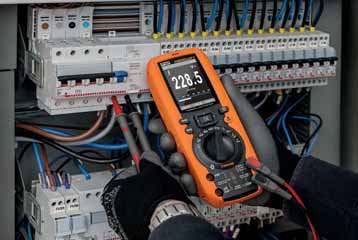

- My multimeter function allows me to troubleshoot installations, measuring voltage and current.

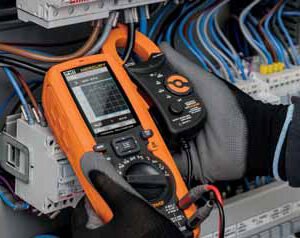

- I log to my internal memory the trend of voltage and current with selectable sampling rate.
- I save and download onto the PC IR images, measures and data recordings to generate professional reports.
- I connect Bluetooth to mobile devices. In this way, the operator can set the instrument on the measuring spot, move away from a possible dangerous area and read measures on the tablet/smartphone through the App HT MERCURY.
- CAT IV 600V/CAT III 1000V allows me to be used in industrial and domestic applications.

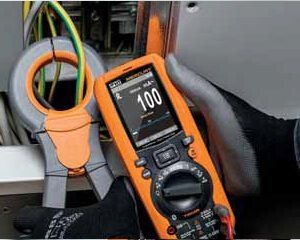

- I can be connected to a wide range of (rigid and flexible) clamp transducers for measuring AC TRMS, DC, AC+DC current.
- I can be connected to a wide range of external K-type probes to measure temperature.
- Thanks to my colour display, detecting possible problems through a thermographic image will be very easy and quick.
- The two rechargeable Li-ION batteries provided allow for a long continuous working duration.
- I am portable, compact and resistant. I am dust-tight and protected against water jets (IP65).
Description Of The Instrument
Multimeters Template | |
|---|---|
| Style | Hand-Held |
| Measures AC V | Yes |
| Measures DC V | Yes |
| True RMS | Yes |
| Basic Accuracy V DC | ±(0.2%reading + 5digits) |
| Backlight | Yes |
| Frequency | Yes |
| Temperature | Yes |
| CAT Rating | III |
| CAT Voltage | 1,000 V, 600 V |
| Duty Cycle % | Measuring range: 0.1% ÷ 99.9% Resolution: 0.1% Accuracy: ±(1.2%reading +2digits) |
Product General Attributes | |
| Unique Features | Built in 80×80 thermal imager |
| Safety Approval | CE |
| Interfaces I/O | Bluetooth |
| Storage | Internal Memory |
| IP Rating | IP65 |
| Product Weight | 1.2 LBS Product Weight Batteries Included |
| Product Height | 2.2 IN |
| Product Length | 7.3 IN |
| Product Width | 3 IN |
| HTS/Schedule B Number | 90275000 |
| ECCN Number | 8.03377E+12 |
| Battery Type | Li-ion Battery Type 1×7.4V rechargeable Li-ION battery, 2300mAh |
| Power Supply Voltage | Battery Powered Power Supply Voltage 1×7.4V rechargeable Li-ION battery, 2300mAh |
You must be logged in to post a review.
| Weight | 1.2 lbs |
|---|---|
| Dimensions | 7.3 × 3 × 2.2 in |
