HT Instruments PQA820 Power Quality Analyzer
14 people are viewing this product right now
$3,294.50
Shipping calculated at checkout.
Estimated delivery:5 days

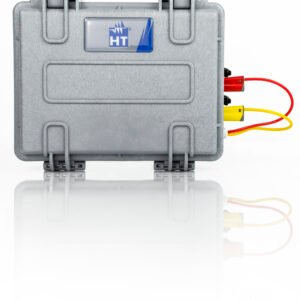

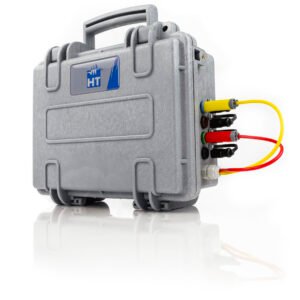

Waterproof, self-powered three-phase power quality analyser with USB and Wi-Fi communication interfaces
- DC voltage
- TRMS voltage with 4 inputs for line(s) and neutral (if any)
- DC current
- TRMS current with 4 inputs for line(s) and neutral (if any)
- DC power
- Active, reactive and apparent power
- Active, reactive and apparent energy
- Power factor and cos-phi
- Frequency
- Up to 383 parameters to be recorded at once
- Integration period selectable from 5 seconds to 60 minutes
- Voltage and current harmonic analysis up to the 49th order
- Voltage anomalies (sags, swells) with 10ms resolution
- Numerical data analysis (DMM function)
- Graphical display of voltage and current (scope)
- Harmonic histogram
- Vectorial diagram of voltages and currents
- Voltage unbalance
- Predefined recording settings
- Built-in memory for data logging
- Wi-Fi and USB interfaces
- Android/iOS/Windows software
- Rechargeable Li-Ion battery with built-in power supply
- Waterproof IP65 hard carrying case
Guarantee Safe and Secure Payment Checkout
Description
HT Instruments PQA820 Waterproof, Self-Powered Three-Phase Power Quality Analyser with USB and Wi-Fi Communication Interfaces
PQA820 is a power quality analyzer performing an easy and wide analysis of the most significant parameters of the electrical system. Thanks to an innovative project, the instrument can be interfaced to smart phones, tablets and PDAs (iOS and/or Android) meeting the requests of the most demanding professionals. All the electrical parameters can be displayed in both numerical and graphical mode, by waveforms, histograms and phasors. The vector diagram shows the phase angle between any voltage and the related current, revealing the inductive or capacitive nature of the loads connected.
The large built-in memory allows to log up to 383 parameters, granting a recording lasting more than one month with an integration period of 10 minutes.
PQA820 records all parameters by default so avoiding any failure. The user will never miss recording the parameters he needs, since PQA820 records everything while selecting one of the three predefined settings (single phase, 3-phase without neutral, 3-phase with neutral).
PQA820 is powered by an internal rechargeable Li-Ion battery with a built-in user-selectable L-N or L-L power supply. The Wi-Fi and the USB interfaces grant connection to smart phones, tablets, PDAs and PCs for instrument setting, recording start and stop, data downloading, and data analysis. Its IP65 waterproof hard carrying case allows PQA820 to work outdoors under critical environmental conditions.
Power Measurement/Power Quality Analyzer Template | |
|---|---|
| Type (Power Quality) | 3 Phase, Single Phase |
| Maximum Current AC | 1000 A |
| Maximum Current DC | 1000 A |
| Maximum Voltage AC | 460 V |
| Maximum Voltage DC | 265 V |
| Apparent Power (VA) | Yes |
| Reactive Power (VAR) | Yes |
| Current Input Channels | 4 |
| Voltage Input Channels | 4 |
| Measurement Frequency (Power Quality) | 50 Hz, 60 Hz Measurement Frequency (Power Quality) 69 Hz |
| Display (Power Quality) | Digital, Graphical, Oscilloscope Display (Power Quality) With HTANALYSIS App |
| Alarms | Yes |
| Transient Capture | No |
| Minimum Transient Duration | micro-seconds |
| Displays Waveform | Yes |
| Energy | Yes |
| Power Factor (Power Quality) | Yes |
| Harmonics | Yes |
| Maximum Harmonics Range | 49 |
| Current Clamps Included | Yes |
| Class A Compliant | No |
| Crest Factor | No |
| CAT Rating | IV |
| CAT Voltage Rating (V) | 300V |
| GPS Location | No |
Product General Attributes | |
| Unique Features | PQA820 don’t needs any setting, is selfpowered from voltages inputs, is IP65 and allow you to use the app HTANALYSIS which is the most advanced power quality analyzer interface that you can find on the market. PQA820 can show you trough HTANALYSIS everything that you need in real time, and also you can analyze your TOTAL recording on your phone, tablet or PC. Made in Italy |
| Warranty | 3 YEARS |
| Safety Approval | CE Safety Approval EMC 2004/108/CE Directive |
| Interfaces I/O | Wifi, USB |
| IP Rating | IP65 |
| Product Weight | 1.5 KILOS (3.31 LBS) |
| Product Height | 110 MM (4.33 IN) |
| Product Length | 245 MM (9.65 IN) |
| Product Width | 210 MM (8.27 IN) |
| Data Logging | Yes |
| HTS/Schedule B Number | 90318080 |
| ECCN Number | 8.03377E+12 |
| Calibration Included | Factory Calibration |
| Battery Type | Li-ion |
| Power Supply Voltage | 120V 50/60 Hz, 220V Only, 240V Only, Battery Powered |
| Country of Origin | Italy |
You must be logged in to post a review.
Manuals/Guides
| Weight | 1.5 lbs |
|---|---|
| Dimensions | 245 × 210 × 110 in |
