Ideal 61-535 – Circuit Breaker Finder, 120V AC

• 120V AC circuit breaker finder consists of transmitter and receiver
• Quickly and easily identify circuit breakers/fuses without disrupting power
• Clear visual and audible indicators – audible signal can be muted
• NCVT in receiver tip indicates presence of AC voltage from 80-300V AC
• Transmitter tests outlet wiring configurations and tests GFCIs

The IDEAL 61-535 is a 120V AC Circuit Breaker Finder that automatically identifies a circuit breaker/fuse protecting a live branch circuit. It consists of a transmitter and a receiver.

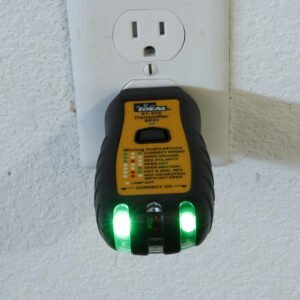

The Transmitter sends a signal over the conductors when connected to an energized circuit. It also identifies the presence of power and indicates correct or incorrect wiring conditions via illuminated Green and Red LED’s and contains a GFCI Trip Tester.

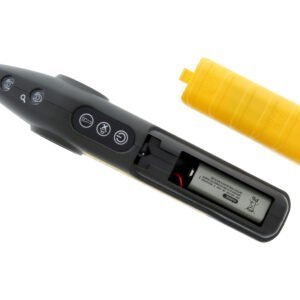

The receiver reads the transmitter’s signal and identifies the breaker/fuse energizing the circuit by illuminating a flashing green LED and emitting beeps once it determines the breaker/fuse with the strongest signal. The receiver also senses the presence of AC voltage (60 – 600 V AC) via a non-contact voltage (NCV) sensor in the tip. The receiver indicates the presence of AC voltage by illuminating a red flashing LED and emitting a beeping sound.

The audible tone for both the breaker finding mode and the NCV mode can be easily muted for working in noise sensitive areas. The receiver is equipped with a flashlight that can be operated independently from testing functions for work in poorly lit conditions.
