Instek GPS-3030D 0-30V, 0-3A Digital Power Supply
31 people are viewing this product right now
Original price was: $244.20.$214.89Current price is: $214.89.
Shipping calculated at checkout.
Estimated delivery:5 days
90W DC Linear Power Supply 0-30V, 0-3A DIGITAL Display
- 0-3A DIGITAL
- Light and Compact Design
- 0.01% High Regulation
- Constant Voltage and Constant Current Operation
- Remote Control for External Programmability
- Internal Select for Continuous or Dynamic Load
- Low Ripple and Noise
- Overload and Reverse Polarity Protection
- Series or Parallel Operation
Guarantee Safe and Secure Payment Checkout
Description

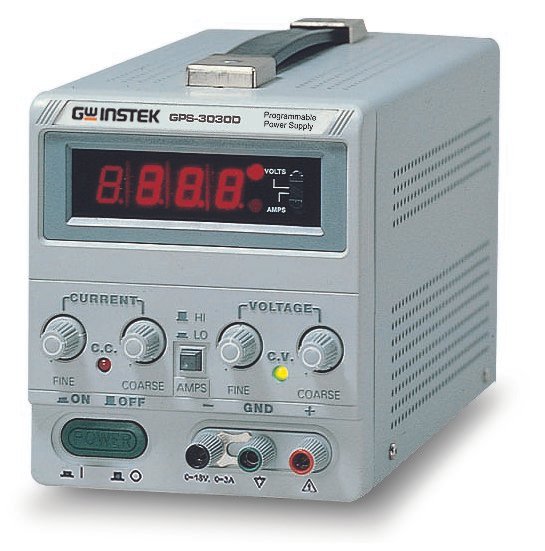

Instek GPS-3030D – 0-30V, 0-3A Digital Power Supply
- The GPS-Series includes both analog and digital display meters with varying power outputs.
- Features overload and reverse polarity protection as well as high regulation and low ripple/noise that are maintained at 0.01% and < 1mVrms, respectively.
- Continuous or dynamic internal load selection accommodates applications such as pulsed current. Remote control terminals offer programming and operation from an external device.
The regulated DC power supply has been designed to provide the most often required in the laboratory, schools, and production lines. The output voltage is continuously adjustable between 0 to rating voltage in one range by means of a coarse and fine potentiometer, the load current may have any value from 0 to rating current and adjusted by means of a coarse and fine potentiometer. Both outputs can accurately read in voltmeter and ammeter.
Both stability and ripple are extremely good to meet the requirements of modern circuit design. The unit can be used as either a constant voltage or a current source.
- For applications when output greater than V or A is a need, the unit can be connected up in a series or parallel.
- For applications in audio production lines, the continuous or dynamic load internal selectable.
Power Supplies/DC Power Supplies Template | |
|---|---|
| Outputs | Single |
| Voltage Output 1 | Variable |
| Max Voltage Output 1 | 30 V |
| Programmable | Yes Programmable Remote Control for External Programmability |
| Current Output 1 | Variable |
| Max Current Output 1 | 3 A |
| Meter Type | Digital Meter Type 3½ Digit 0.5″ LED Display Switchable Between Voltage and Current |
| Switching | No |
| Linear/Switching | Linear |
| Constant current/voltage | Yes Constant current/voltage Constant Current: Constant Voltage: |
Product General Attributes | |
| Unique Features | Optional European Type Jack Terminal for GPS-3030/GPS-3030D/GPS-3030DD |
| Warranty | 2 YEARS |
| Product Weight | 5 KILOS (11.02 LBS) |
| Product Height | 285 MM (11.22 IN) |
| Product Length | 128 MM (5.04 IN) |
| Product Width | 145 MM (5.71 IN) |
| Data Logging | No |
| ECCN Number | EAR99 |
| Calibration Included | Factory Calibration |
| Power Supply Voltage | 120V/220V Universal Power Supply Voltage Optional European Type Jack Terminal for GPS-3030/GPS-3030D/GPS-3030DD |
| Country of Origin | China |
| Shipping Height | 8.50 IN |
| Shipping Length | 14.50 IN |
| Shipping Width | 7.25 IN |
You must be logged in to post a review.
Manuals/Guides
| Weight | 5 lbs |
|---|---|
| Dimensions | 128 × 145 × 285 in |
