Instek SPS-3610 0-36V 0-10A DC Power Supply Switch Mode
39 people are viewing this product right now
Original price was: $448.80.$426.36Current price is: $426.36.
Shipping calculated at checkout.
Estimated delivery:4 days
360W DC Switching Power Supply 0-36V, 0-10A
- 0-36V, 0-10A
- Dual Measurement Display
- 0.01 % High Regulation
- Constant Voltage and Constant Current Operation
- High Efficiency
- High Power Density
- Over Voltage Protection
- Remote Output ON/OFF Control
Guarantee Safe and Secure Payment Checkout
Description

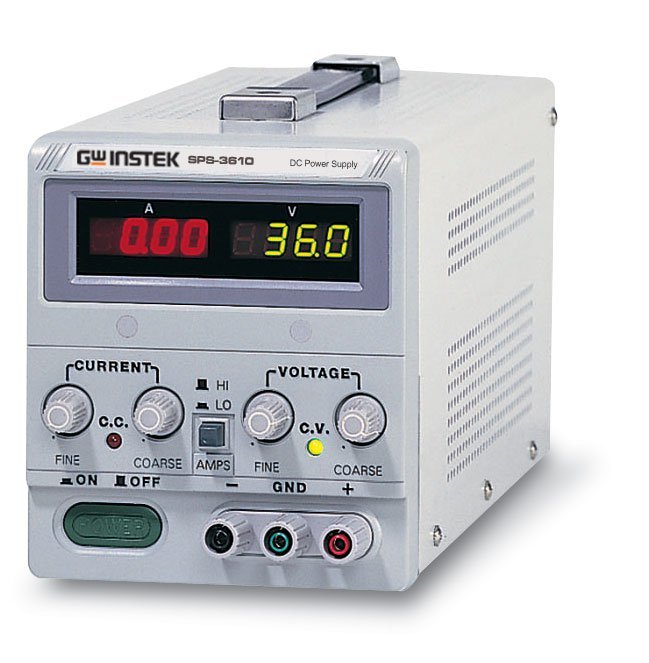

Instek SPS-3610 – 0-36V 0-10A DC Power Supply
- With more extensive range of input voltage
- With high frequency operation can reduce the size of power transformer
- With small size, light weight and high density power
- Entire efficiency rate higher up to 70%.
- Auto control the voltage and current mode.
- 3 outputs with full Voltage control
- Zero adjustment for the output of voltage and current
The SPS-Series are single output, 360W, switching DC power supply. OVP protects the SPS-Series and their load from unexpected conditions. High regulation is maintained at 0.01%. Remote sensing adds an extra level of precision by compensating cable losses between loads. Turning the output On/Off from the external device is available through Remote control terminals. The GPS-Series are an ideal solution for power-efficient bench-top or portable applications requiring high regulation.
- The series of switching power supplies for measuring instrument has ruled out the inconvenience of big volume and heavyweight of a traditional power supply possess.
- The output voltage and current are controlled by two variable resistors with coarse and fine regulation for more handy and precise adjustment.
Power Supplies/DC Power Supplies Template | |
|---|---|
| Outputs | Single |
| Voltage Output 1 | Variable |
| Max Voltage Output 1 | 36 V |
| Programmable | No |
| Current Output 1 | Variable |
| Max Current Output 1 | 10 A |
| Meter Type | Digital |
| Switching | Yes |
| Constant current/voltage | Yes |
| Remote Sensing | Yes |
Product General Attributes | |
| Unique Features | Compact, light weight, economic. |
| Product Weight | 3 KILOS (6.61 LBS) Product Weight Approx. 3.2kg |
| Product Height | 145 MM (5.71 IN) |
| Product Length | 285 MM (11.22 IN) |
| Product Width | 128 MM (5.04 IN) |
| HTS/Schedule B Number | 8504.40.9580 |
| ECCN Number | EAR99 |
| Calibration Included | Factory Calibration |
| Power Supply Voltage | 120V 50/60 Hz, 220V Only Power Supply Voltage AC 115V/ 230V 15 %, 50/60Hz |
| Country of Origin | China |
You must be logged in to post a review.
Manuals/Guides
| Weight | 3 lbs |
|---|---|
| Dimensions | 285 × 128 × 145 in |
