ITech IT9121E – Quality Analyzer Power Meter
45 people are viewing this product right now
$1,919.61
Shipping calculated at checkout.
Estimated delivery:4 days
Quality Analyzer Power Meter
- Input range: 600Vrms/20Arms

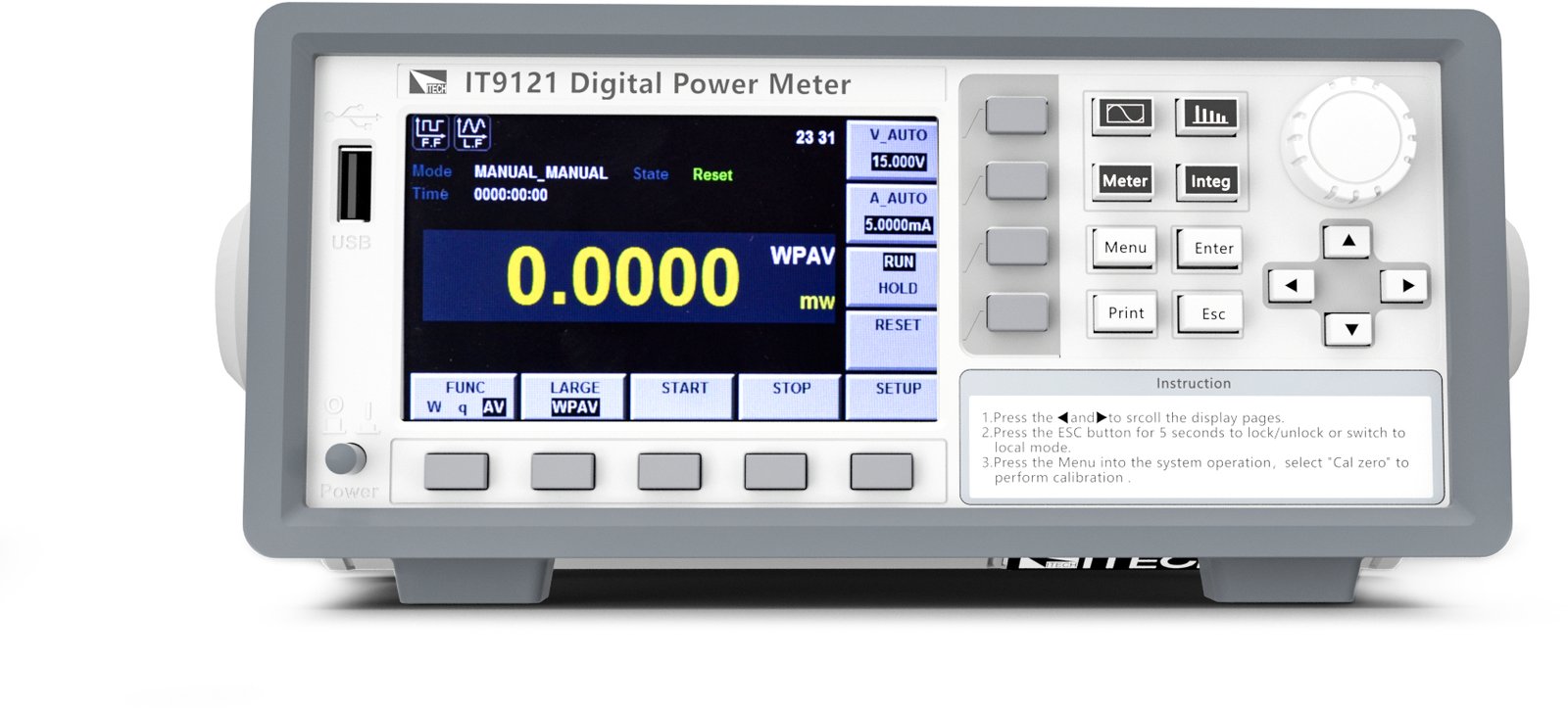

- 4.3-inch color LCD screen(TFT)
- Settable displayed matrix row number and common measurement parameters
- The accuracy of voltage and current measurement is up to 0.1%.
- The voltage, current, power, harmonics and other parameters can be measured at the same time.
- Measures THD(V) up to 50th harmonic*1
- Rich and powerful integrating functions, and can be used for measuring electric energy which is bought or sold.
- Frequency measurement.

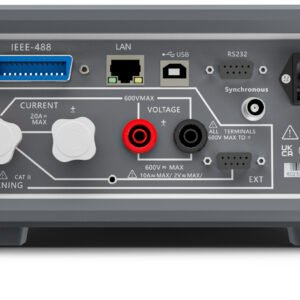

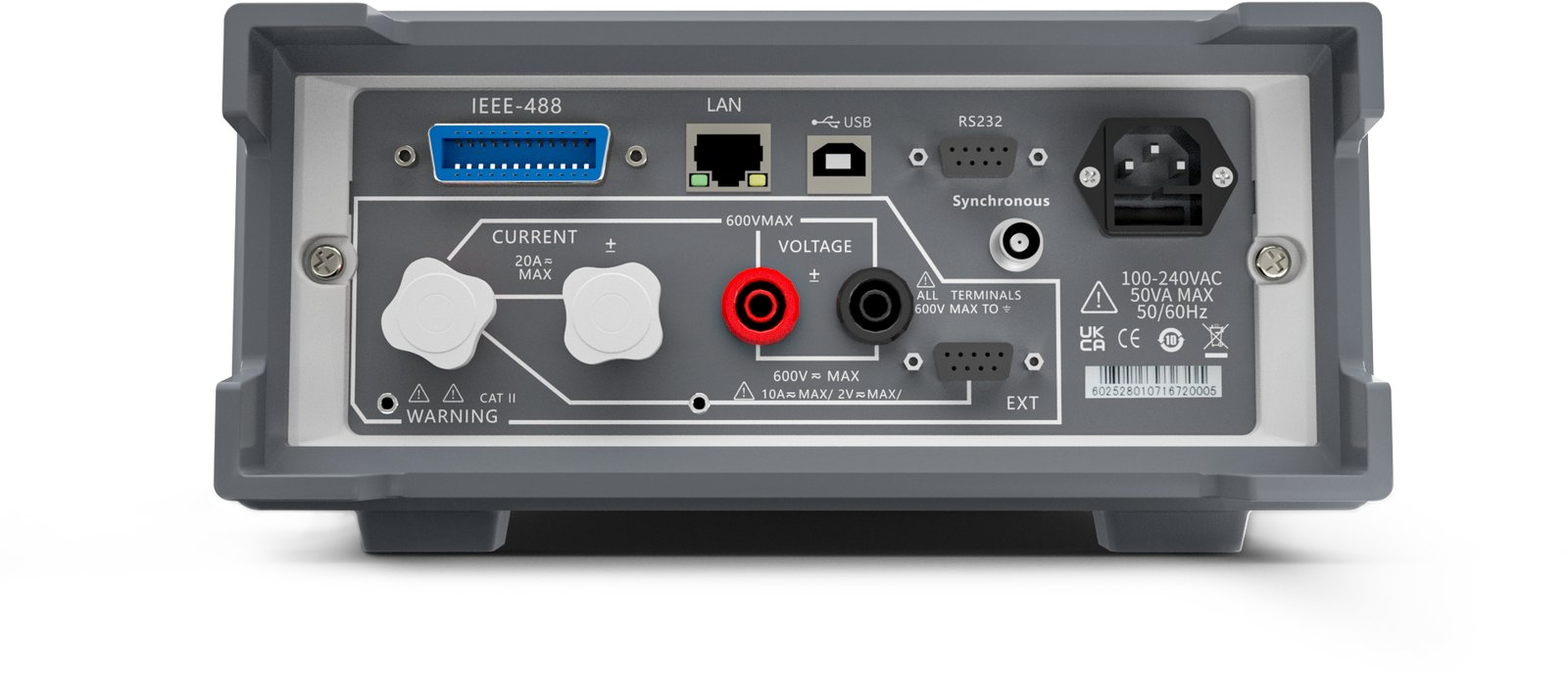

- Built-in USB, RS232 and LAN interfaces
- The function for IT9121 is built-in, but for IT9121E it is optional.
Guarantee Safe and Secure Payment Checkout
Description
ITech IT9121E
- Built-in USB, RS232 and LAN interfaces
- 4.3-inch color LCD screen (TFT)
- The accuracy of voltage and current measurement is up to 0.1%.
- The voltage, current, power, harmonics and other parameters can be measured at the same time.
Quality Analyzer Power Meter
ITech IT9121 power meter can provide the maximum input of 600Vrms and 20Arms and a measurement bandwidth of 100KHZ and can be easily used for measuring the voltage, current, power, frequency, harmonics, and other parameters. Through its built-in USB, RS232, and LAN interfaces, IT9121 can help users to realize remote control. With the interfaces of USB-based peripheral devices, users can save the measured parameters into the external storage medium. The basic voltage and current accuracy of the IT9100 series is 0.1%. Moreover, the power meter has rich active power integrating functions. Widely applied in tests of motors, household appliances, UPS, etc.
Product General Attributes | |
|---|---|
| Unique Features | 4.3-inch color LCD (TFT) The row number of matrix displayed on the screen can be set freely and common measurement parameters can be displayed. Input range: 600Vrms / 20Arms The voltage, current, power, harmonics and other parameters can be measured at the same time. The accuracy of voltage and current measurement is up to 0.1%. The power analyzer has a function of harmonic measurement, and can be used for measuring up to 50th harmonics. The interfaces for USB-based peripheral devices are provided, and the user can save data into the external storage medium. The power analyzer has rich and powerful integrating functions, and can be used for measuring electric energy which is bought or sold. The power analyzer also has a function of frequency measurement. Standard built-in USB |
| Warranty | 2 YEARS |
| Safety Approval | CE |
| Interfaces I/O | LAN / Ethernet, RS-232, USB |
| Product Weight | 6.6 LBS |
| Product Height | 3.5 IN |
| Product Length | 14 IN |
| Product Width | 8.4 IN |
| Shipping Weight | 12.8 LBS |
| Data Logging | Yes |
| Calibration Included | Factory Calibration |
| Power Supply Voltage | 120V/220V Universal |
| Country of Origin | China |
| Shipping Height | 9.4 IN |
| UPC | 6970341180980 |
| Shipping Length | 20.5 IN |
| Shipping Width | 12.6 IN |
You must be logged in to post a review.
Manuals/Guides
| Weight | 6.6 lbs |
|---|---|
| Dimensions | 14 × 8.4 × 3.5 in |
