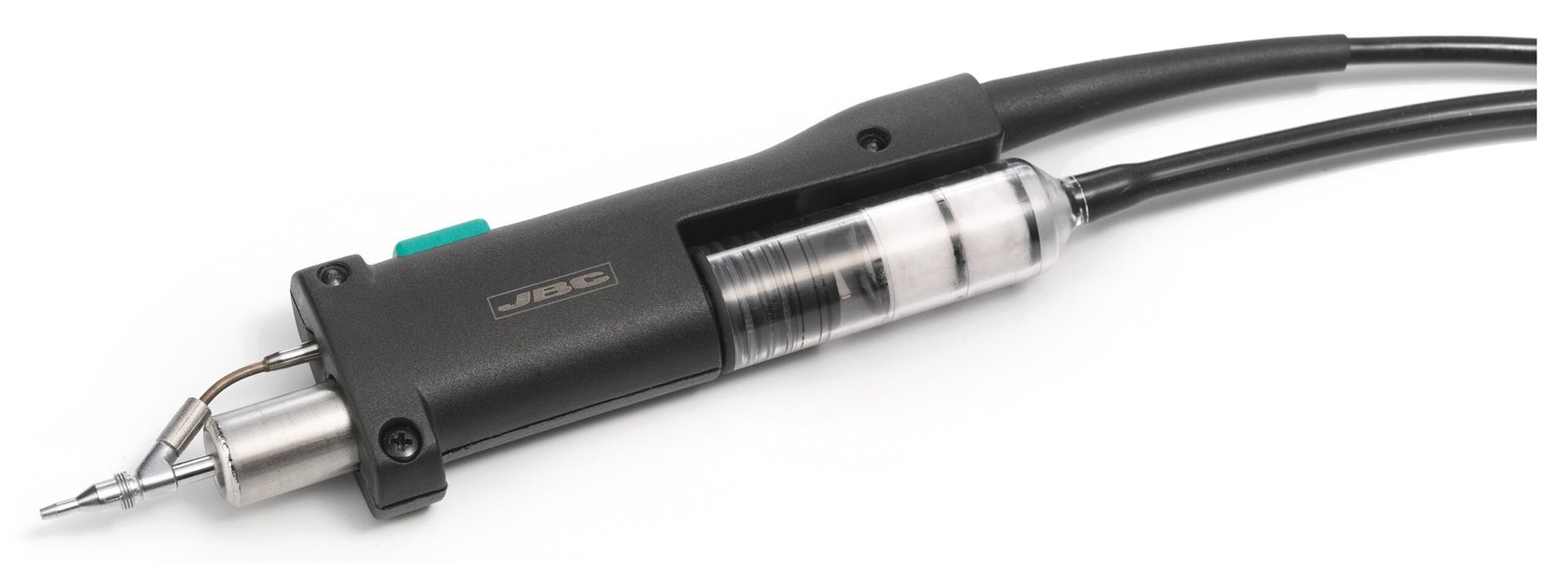

JBC DS360-A – Micro Desoldering Iron

The JBC DS360-A is a micro-desoldering iron that provides up to 40 watts of power. With nozzles ranging from 0.6 to 1.5 mm in diameter, the DS360-A is usable for both surface mount and through-hole components.

The DS360-A is lightweight, as well as simple to clean and maintain. Consumable parts are easily accessed and changed, making the iron function and user-friendly.

This iron is compatible with the following stations and control units:

• CS Compact station
• CV Compact station
• DI – 1 tool control unit
• DDE – 2 tool control unit
• DME – 4 tool control unit

The DS360-A requires a pump module to operate. JBC offers two main types. 1) Self-contained modules which have electric pumps, and 2) pneumatic models, which require an external source of compressed air. The module you need depends on which control unit you are using it with.

MS-A – has an electric pump

• DI – 1 tool control unit

MV-A – has a pneumatic pump (requires an external compressed air source)

• DI – 1 tool control unit

MSE-A – has an electric pump

• DDE – 2 tool control unit
• DME – 4 tool control unit

MVE-A – has a pneumatic pump (requires an external compressed air source)

• DDE – 2 tool control unit
• DME – 4 tool control unit
