JBC PHSE-1B – Pre-Heater for PCBs up to 5×5”
35 people are viewing this product right now
Original price was: $2,255.00.$2,029.50Current price is: $2,029.50.
Shipping calculated at checkout.
Estimated delivery:5 days
Small Preheater Set 120V no Stand
- Designed for rework on small / medium PCBAs
- Heating area of 130 mm x 135 mm / 5.12″ x 5.31″
- Four thermocouple connections
- Three work modes: power, temperature, profile
- 600 watts maximum power
- Two heating zones
- Two heating zonesCan be synchronized with JBC hot air and soldering stations, as well as fume extractors
- Matchless reliability in temperature accuracy and control so that no component is damaged
- This model does not include the PHSS PCB support (for model with PHSS, please see PHSE-1KB)
Guarantee Safe and Secure Payment Checkout
Description
JBC PHSE-1B
- Designed for rework on small/medium PCBAs
- Heating area of 130 mm x 135 mm / 5.12″ x 5.31″
- Four thermocouple connections
- Three work modes: power, temperature, profile
- 600 watts maximum power
Pre-Heater for PCBs up to 5×5”

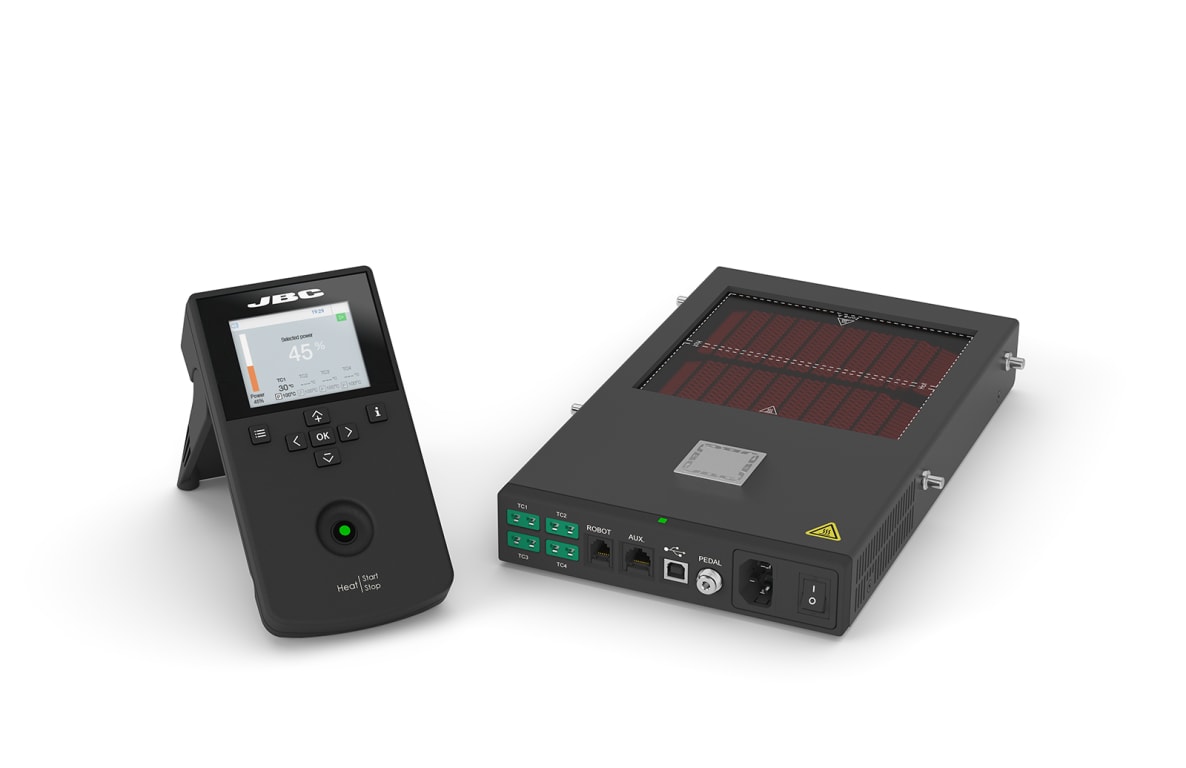

The PHSE Small Preheater is the best solution for rework on small/medium PCBAs. It features a heating area of 130 mm x 135 mm / 5.12″ x 5.31″ and four TC connections, offering matchless reliability in temperature accuracy and control so that no component is damaged.
Features and connections
Preheater Unit
1. Heating Areas
2. Thermocouple Connectors x4 (Type K)
3. RJ12 Connector to Robot
4. RJ45 Connector to Console
5. USB-B Connector
6. Pedal Connector
7. Power Socket
8. Power
9. Fixing Brackets for Small PCB Support
Console
1. USB-A Connector
2. Start / Stop
3. RJ45 Connector to Preheater Unit
4. USB-B Connector
1. 2.8″ Color TFT Screen
2. Button for Foot Folding and Unfolding
3. Foot for Vertical Set Up
Three work modes
The JBC PHSE offers three unique work modes – temperature, power, and profile. Up to four thermocouples can be connected in any of the three work modes.
Temperature Mode keeps the PCBA at a selected temperature, using the regulation thermocouple and, optionally, protection thermocouples.
1. Status Bar
2. Instant Power Supplied to Heater
3. Thermocouple Current Temperature
4. Status Indicator
5. TC1 Current and Selected Temperature
6. Thermocouple Selected Temperature and Mode
2. Instant Power Supplied to Heater
3. Thermocouple Current Temperature
4. Status Indicator
5. TC1 Current and Selected Temperature
6. Thermocouple Selected Temperature and Mode
- Control (C)
- Protection (P)
- Info
Power Mode maintains the selected power as long as the thermocouples do not reach the control/protection temperature limit.
1. Status Bar
2. Instant Power Supplied to Heater
3. Thermocouple Current Temperature
4. Status Indicator
5. TC1 Current and Selected Temperature
6. Thermocouple Selected Temperature and Mode
2. Instant Power Supplied to Heater
3. Thermocouple Current Temperature
4. Status Indicator
5. TC1 Current and Selected Temperature
6. Thermocouple Selected Temperature and Mode
- Control (C)
- Protection (P)
- Info
Profile Mode
allows control of the heating rate of the PCBA by the use of a control and protection thermocouple, without exceeding the recommended limit levels in each application. It features 22 customizable profiles.

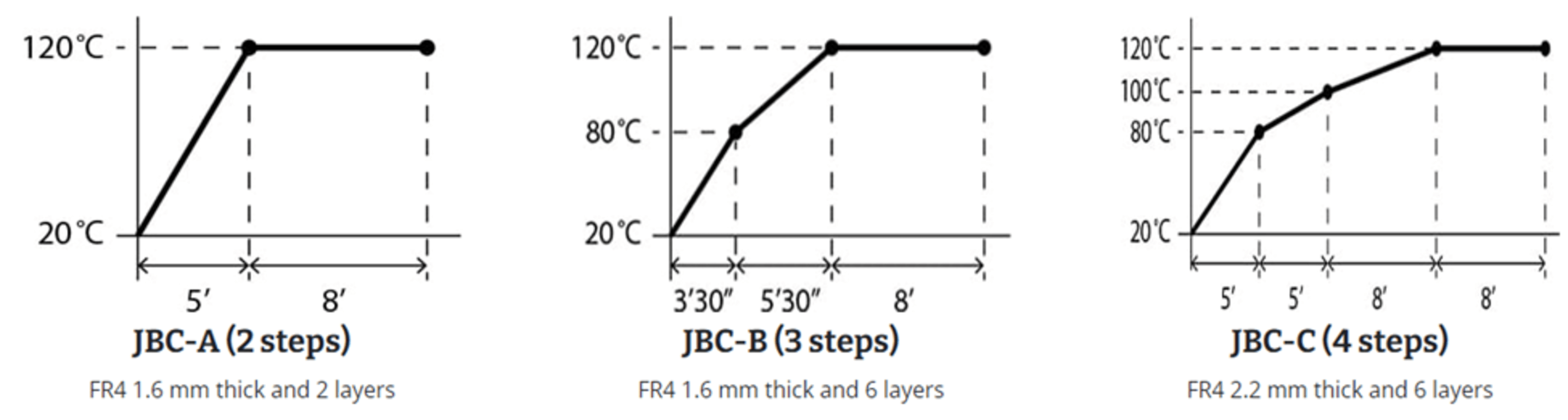

Built-in profiles
The preheater also comes with three built-in profiles, pre-named as A, B, and C. The difference between them is the number of steps: 2, 3, or 4. The thicker your PCB is and the more layers it contains, the more steps are needed to obtain gradual warming.
These profiles are not modifiable but can be used as a template to create your own profiles.
Product General Attributes | |
|---|---|
| Warranty | 2 YEARS |
| Safety Approval | CE |
| Interfaces I/O | USB |
| Product Weight | 6.11 LBS |
| Product Height | 1.65 IN |
| Product Length | 7.68 IN |
| Product Width | 11.34 IN |
| Shipping Weight | 7.72 LBS |
| Shipping Height | 7.68 IN |
| Shipping Length | 14.45 IN |
| Shipping Width | 14.45 IN |
