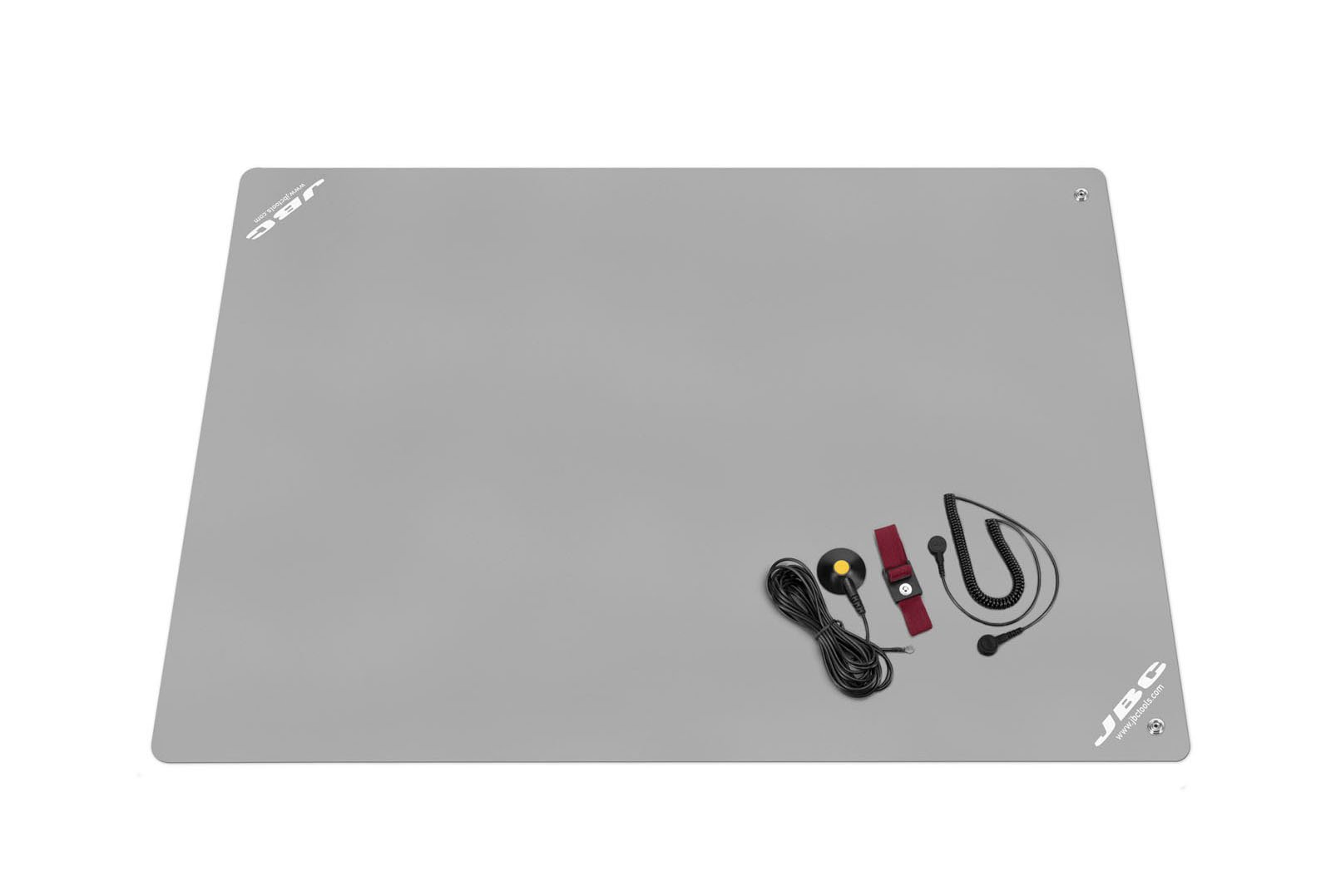

JBC TMB-KA – ESD Table Mat Set (900x600mm) with Wristband, Grounding Cords

• ESD table mat set with wristband, spiral wristband cable, and grounding cable
• Two layer mat with dissipative top and conductive bottom layer
• ESD earthing wristband with adjustable strap to dissipate static electricity
• ESD spiral earthing cable protects static-sensitive components from electrostatic discharge
• ESD earthing cable protects static-sensitive components from electrostatic discharge

The JBC ESD Table Mat is essential in environments where sensitive electronic components are handled. This mat is designed to safely dissipate static electricity, thereby preventing discharges that could damage integrated circuits and other sensitive electronic devices

Each table mat is equipped with (2) 10mm press studs. One of them should be connected to an earthing connection or a grounded common point (available separately) and the other one to the wrist band (available separately) of the person who works at this workplace. It comes with an anti-reflective grey surface, a non-slipping bottom-side and rounded corners.

The JBC TM50 ESD earthing wristband has a length of 220mm/8.66in and comes with a clasp that allows to adjust the length of the strap and incorporates a 3mm press stud. The wristband is antiallergic and is made out of silver and carbon. The fabric strap comes in red and can be washed. The JBC TM50 ESD Earthing Wristband is tested according to BGI 818: 2001.

The JBC TM20 ESD Spiral Earthing Cable is a component in personal grounding to protect electronic equipment and components from electrostatic discharge. The cable has a resistance of 1 Megohm. The length of the cable of 2.4 meters allows flexible working without restricting the freedom of movement. The JBC ESD Spiral Cable has 3mm and 10mm press studs.

The JBC TM21 ESD Earthing Cable is designed to work with TMS and TMB Table Mats ESD and floor coverings. It comes with a press stud that has a 10mm diameter and a 4mm eyelet. The press stud itself is of the female type and earthing cable with 4 meters long. Additionally, a pair of 10mm press stud (male) is included.
