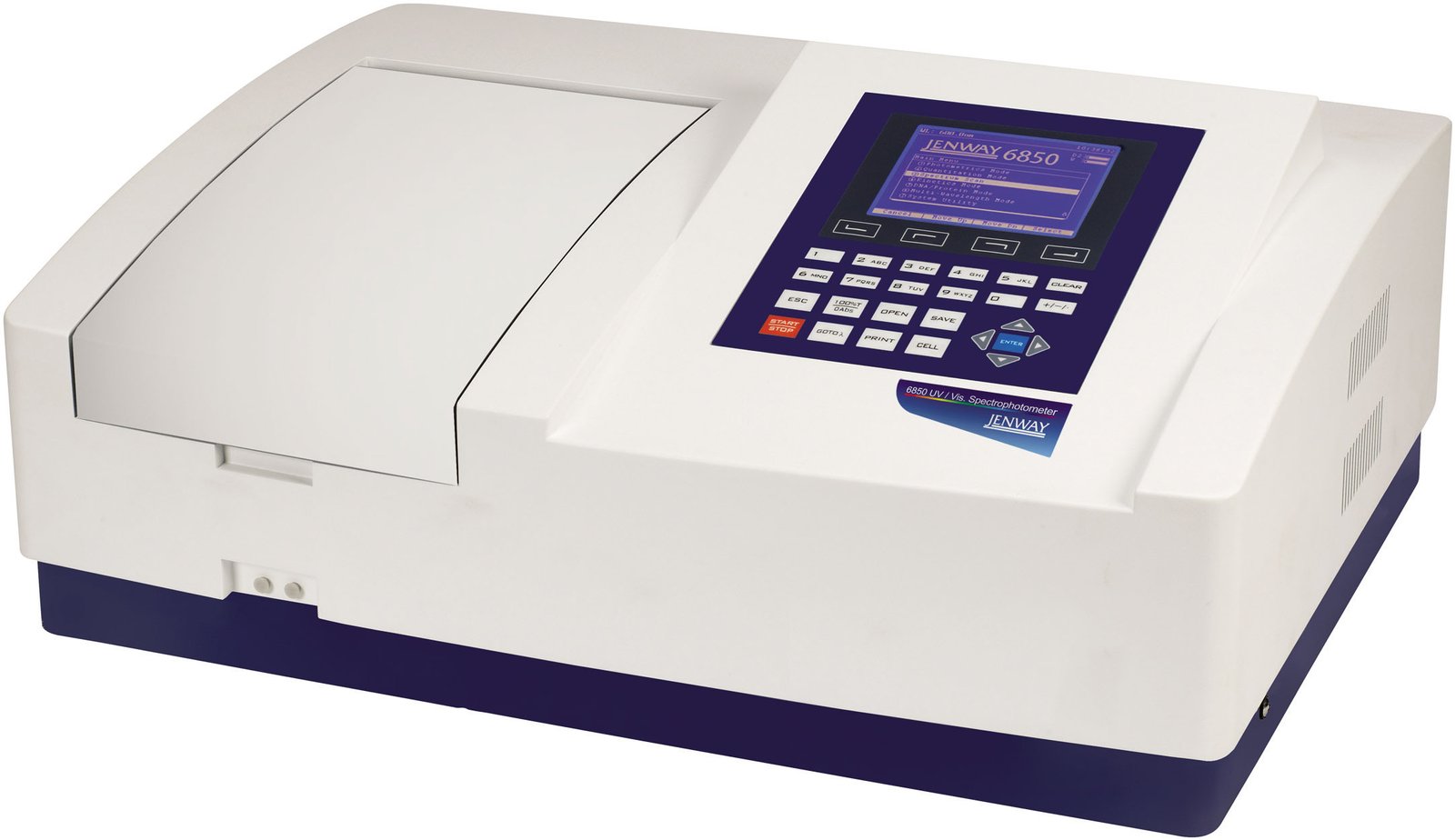

Jenway 6850/230V/IQOQ – UV/Visible Double Beam Spectrophotometer, 230V with IQ/OQ Documentation

• Double beam spectrophotometer with highly stable optics
• Variable spectral bandwidth 0.5, 1, 2, 4, 5nm
• Integrated user interface
• USB port for data storage
• Conforms to European Pharmacopeia requirements

The new 6850 introduces the first double beam spectrophotometer with a variable spectral bandwidth into the Jenway range. The highly stable optics and two detectors measure the sample and reference simultaneously optimizing measurement accuracy. The 6850 has measurement modes for photometrics, concentration, multi-wavelength, spectrum scanning, kinetics, quantitation, DNA/RNA and protein analysis.

Jenway Prism PC software is supplied as standard and offers additional functionality with preloaded methods for DNA/RNA and protein analysis, as well as extensive post-measurement tools, unlimited results saving and easy export of data.

The 6850 double beam spectrophotometer is ideal for quality control, general research, pharmaceutical, biochemical and clinical laboratory applications.

Improved Optics

Model 6850 covers the UV/visible wavelength range from 190 to 1100nm, with a variable spectral bandwidth, ranging from 5nm down to 0.5nm, using tungsten halogen and deuterium light sources. The range of bandwidths available allows a balance between resolution, accuracy and data precision to be maximized depending on the application; therefore providing a flexible platform to conform to multiple regulatory agencies for a variety of applications, all with one spectrophotometer.

Model 6850 has three scan speeds available enabling scan speeds of 100 to 2000nm/min to be achieved. With wavelength scan intervals of 0.1, 0.2, 0.5, 1, 2 or 5nm the 6850 can be configured to meet your exact requirements.

Instrument Design

Model 6850 has an integrated user interface providing local control of the spectrophotometer. With no PC required this saves expense and valuable bench space. The large graphical display is easy to read and enables more information to be displayed including spectrum and kinetics curves. The user interface can be navigated using soft key navigation, arrow keys or shortcut keys.

This spectrophotometer utilizes a research grade monochromator for excellent energy throughput and a silicone photodiode detector. All of this comes packaged in a small footprint double beam spectrophotometer whilst still offering a large sample chamber that enables an 8 position cuvette changer to be fitted.
