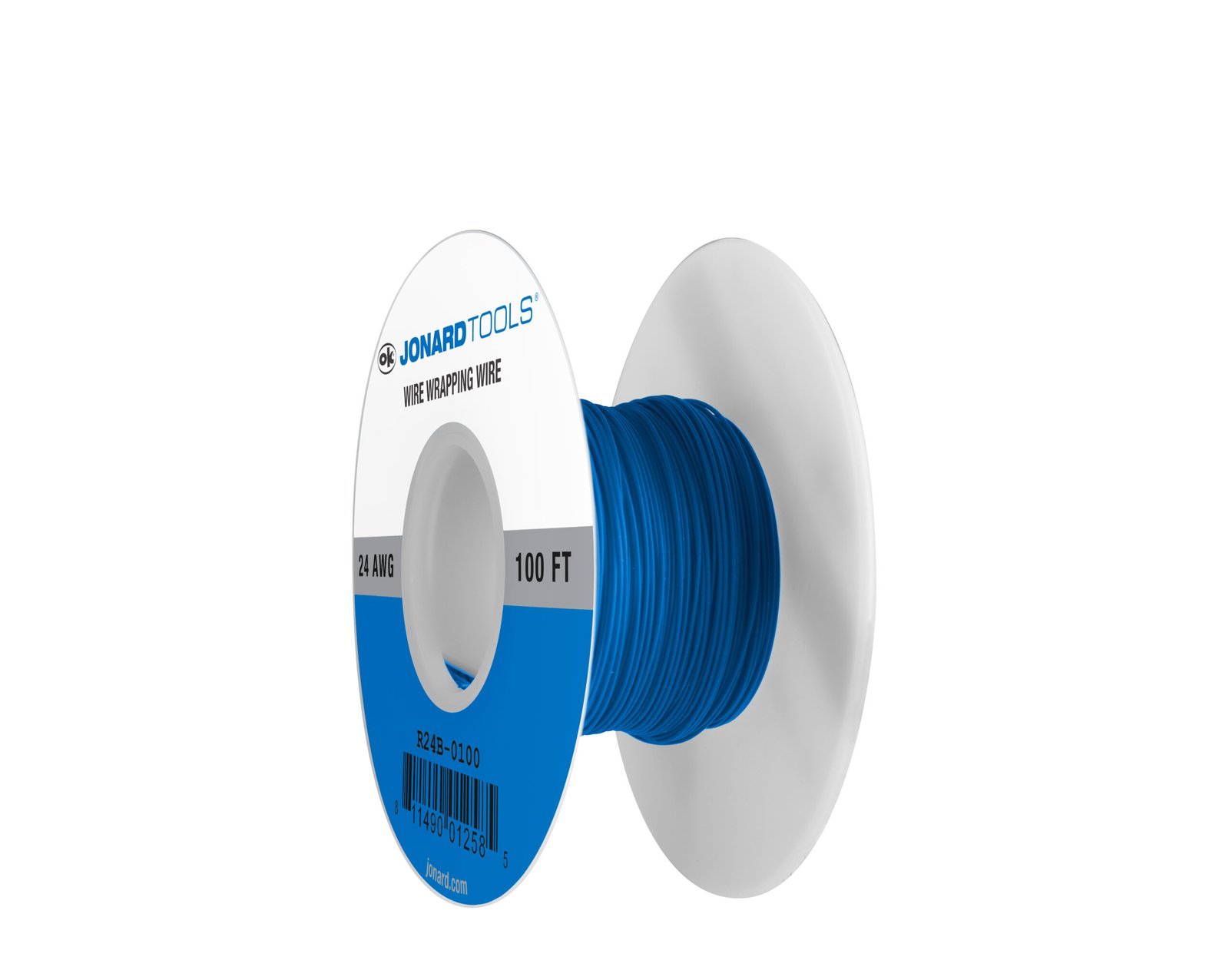

Jonard Tools R24B-0100 – 24 AWG Kynar Wire, Blue, 100 ft

• 24 AWG (0.5 mm) wire gauge
• Blue color
• 100ft length
• Kynar normal insulation type
• 0.004″ (0.102 mm) insulation thickness

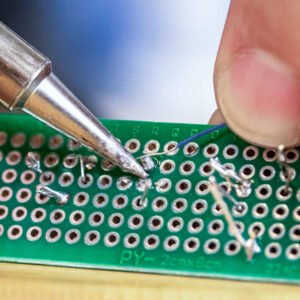

Typically used where flexibility, strength, and low weight are required, Kynar wire is ideally suited in wire wrap, power supply, medical, and aerospace applications. It is also commonly used for circuit board prototyping because of its lighter weight and smaller overall diameter. Additionally, Kynar insulation provides excellent mechanical properties over a large temperature range and is resistant to an extensive range of chemicals including most inorganic and organic acids, bases, alcohols, halogenated solvents, and aliphatic & aromatic hydrocarbons. These properties make Kynar® wire an excellent choice when working in even the harshest environmental applications. This wire also features the following:

• OHFC (oxygen-free high conductivity) silver-plated copper conductor provides exceptional electrical conductivity and flexibility
• Kynar insulation provides high-temperature resistance (up to 105°C) and excellent abrasion resistance
• Meets or exceeds UL 1422 standards
