Julabo HT60-M3 – Programmable Recipe High Temperature Circulator Forte HT with Pump, +70 to +400 deg C, 6 kW Heating, 208V/3PH/60Hz
41 people are viewing this product right now
Original price was: $26,075.00.$25,284.85Current price is: $25,284.85.
Shipping calculated at checkout.
Estimated delivery:5 days
Programmable Recipe High Temperature Circulator Forte HT with pump, +70 to +400 deg C, 6 kW heating, 208V/3PH/60Hz
- Working temperature range up to 400 °C
- Self-optimizing ICC temperature controller
- Strong pumping capacity 18 l/min – 1.2 bar max
- Automatic air-purge allows easy filling
- Automated heat-up feature adjusts to external systems
- Bright MULTI-DISPLAY (LED) with display resolution 0.01 °C
- Backlit interactive 4-line LCD display
- On-line communication via built-in RS232 interface
- Stand-by input for external emergency switch-off
- Integrated programmer stores up to 6 profiles (60 sections each)
- Electronic level indication
- ATC function for simple correction of temperature variations
- ATC function allows use as testing instrument according to ISO 9000
- Tap water cooling for temperatures from 40 to 400 °C and rapid cooling
- Cooling capacity up to 15 kW (with tap water 20°C)
Guarantee Safe and Secure Payment Checkout
Description

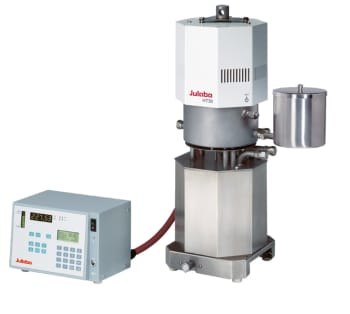

Julabo HT60-M3 – Programmable Recipe High Temperature Circulator Forte HT with Pump
- +70 to +400 deg C
- 6 kW heating
- 208V/3PH/60Hz
JULABO high-temperature circulators: The response to present requirements in the market. Peak performance, rapid heating, and cooling, fast action in case of exotherm reactions – these are only a few of the features of our high-temperature circulators. The self-optimizing controller (ICC – Intelligent Cascade Control) ensures high-temperature stability. The classic PID control parameters are available at the touch of a button for modification at any time. MULTI-DISPLAY (LED) and interactive LCD display offer convenient operation. The implemented heating automation, strong pump, and controlled cooling produce rapid and precise results for temperature applications to +4 00 °C. The instruments are completely sealed. This prevents the release of oil fumes and results in a long lifetime of the heat transfer liquid. Automatic air-purge allows for easy filling. Electrical connections and the optional Profibus permit future-oriented automation technology. JULABO high-temperature circulators are recommended for applications using jacketed reactors and autoclaves, distillation columns as well as laboratory, mini plant, and process-scale applications.
Characteristics
Display
![]()
Easy to read – Large LED temperature display for actual value and setpoint (resolution 0.1 °C).![]()
Additional plain text information – Comfortable LCD dialog display for interactive operation with plain text display.![]()
Pump stage and liquid level – Backlit indicator for selected pump stages and filling volume on Presto® PLUS, Magnum 91 & Forte HT.
Easy to read – Large LED temperature display for actual value and setpoint (resolution 0.1 °C).
Additional plain text information – Comfortable LCD dialog display for interactive operation with plain text display.
Pump stage and liquid level – Backlit indicator for selected pump stages and filling volume on Presto® PLUS, Magnum 91 & Forte HT.Operation
![]()
Clearly structured – Comfortable, splash-proof keypad for setpoint adjustment, high/low temperatures, timer and shaking frequency (SW models).
Clearly structured – Comfortable, splash-proof keypad for setpoint adjustment, high/low temperatures, timer and shaking frequency (SW models).Temperature Control
![]()
For perfect results – ‘Intelligent Cascade Control’, automatic & self optimizing adjustment of PID control parameters, temperature stability ±0.005 °C internal, <±0.05 °C external.![]()
Full control – ‘Temperature Control Features’ for individual optimization, access to all important control parameters, additional settings for band limit, limits, Co-Speed factor etc.![]()
High measuring accuracy – ‘Absolute Temperature Calibration’ for manual compensation of a temperature difference, 1-point calibration.
For perfect results – ‘Intelligent Cascade Control’, automatic & self optimizing adjustment of PID control parameters, temperature stability ±0.005 °C internal, <±0.05 °C external.
Full control – ‘Temperature Control Features’ for individual optimization, access to all important control parameters, additional settings for band limit, limits, Co-Speed factor etc.
High measuring accuracy – ‘Absolute Temperature Calibration’ for manual compensation of a temperature difference, 1-point calibration.Technical Features
![]()
Control from the external application – External Pt100 sensor connection for precise measurement and control directly in the external application.![]()
Connection compliant to standard – RS232/RS485 dual-interface for serial data transmission according to EIA-485 industry standard (2-wire bus technology), upgradable with Profibus DP.![]()
Optimal program control – For the execution of time and temperature dependant profiles, 6 temperature profiles with 60 steps max., with real time clock.
Control from the external application – External Pt100 sensor connection for precise measurement and control directly in the external application.
Connection compliant to standard – RS232/RS485 dual-interface for serial data transmission according to EIA-485 industry standard (2-wire bus technology), upgradable with Profibus DP.
Optimal program control – For the execution of time and temperature dependant profiles, 6 temperature profiles with 60 steps max., with real time clock.Warning & Safety Functions
![]()
Early warning system for high/low temperature limits – Maximum safety for applications, optical and audible alarm, convertible to automated cut-off function.![]()
Enhanced protective functions – Maximum safety, adjustable high temperature cut-off or dry-running protection, additional display of setpoints permits easy and precise adjustments.![]()
For flammable bath fluids – Classification III (FL) according to DIN 12876-1.
Early warning system for high/low temperature limits – Maximum safety for applications, optical and audible alarm, convertible to automated cut-off function.
Enhanced protective functions – Maximum safety, adjustable high temperature cut-off or dry-running protection, additional display of setpoints permits easy and precise adjustments.
For flammable bath fluids – Classification III (FL) according to DIN 12876-1.Other characteristics
Permissible cooling water pressure 4.5 bar max, pressure difference between IN and OUT: 2 to 4.5 bar.
Water Baths Recirculating Heating Chillers Coolers | |
|---|---|
| Heating Capacity (Baths) | 6000 Watts |
| Type (Chillers/Baths) | Heating Circulator |
| Max Temp (Chillers/Baths) | 400 C |
| Min Temp (Chillers/Baths) | 70 C |
| Reservoir Capacity (Baths) | 2 L |
Product General Attributes | |
| Interfaces I/O | RS-232, RS-485, Profibus |
| Product Weight | 64 LBS |
| HTS/Schedule B Number | 8419.89.9585 |
| ECCN Number | EAR99 |
| Country of Origin | Germany |
You must be logged in to post a review.
Manuals/Guides
ManualsSpec Sheets
| Weight | 64 lbs |
|---|
