Julabo SW23 Water Baths, 115V/60Hz
37 people are viewing this product right now
Original price was: $5,942.00.$4,321.45Current price is: $4,321.45.
Shipping calculated at checkout.
Estimated delivery:5 days
20L Shaking Water bath, to 99 deg C; 0.02 deg C stability; 1 kW heater; 20-200 rpm 115V/60Hz
20L Shaking Water bath, to 99 deg C; 0.02 deg C stability; 1 kW heater; 20-200 rpm 115V/60Hz
- MICROPROCESSOR technology with PID temperature control
- Bright MULTI-DISPLAY (LED)
- Seamless, splash-proof keypad
- Splash-proof mains switch
- Electronic timer for setting the running time (0:01 to 9:59 h:min)
- On-line communication via built-in RS232 interface
- Early warning system with high and low temperature limits
- Drain screw for conveniently emptying the bath
- Dry-running protection / safety temperature fixed at 130 °C
- Wide range of accessories including lift-up Makrolon bath cover available
- EasyTemp control software is available free of charge
- Removable shaking carriage
- Shaking frequency adjustable from 20 to 200 rpm
- Shaking frequency indicated on MULTI-DISPLAY (LED)
- Shaking stroke 15 mm
- With integrated circulation pump
Guarantee Safe and Secure Payment Checkout
Description

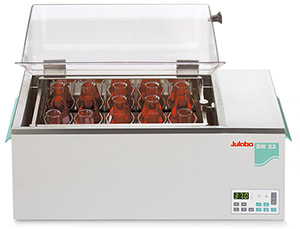

Julabo SW23 – Shaking Water Bath
- Seamless, splash-proof keypad
- Splash-proof mains switch
- On-line communication via built-in RS232 interface
- With integrated circulation pump
JULABO shaking water baths with seamless, splash-water protected keypad offer a high operating comfort. The bright MULTI-DISPLAY (LED) indicating up to 6 temperature values is visible from across the lab. Advanced MICROPROCESSOR technology with PID temperature control eliminates temperature overshoot and provides high temperature stability. The built-in timer simplifies time-dependent applications.
The RS232 interface allows on-line communication with PC. Sensitive samples in the bath are well protected: As soon as the high and low temperature limits are reached an interval tone sounds. If the liquid in the bath reaches a minimum, a complete shut-down is effected and a permanent signal tone sounds. Instruments are conceived for unsupervised continuous operation. Bath tanks and all parts in contact with the bath liquid are made of high-grade stainless steel.
Characteristics
Display
Several values at a glance
Large Multi-Display (LED), easy to read across the room, for actual value and up to 3 setpoints, warning functions, high temperature cut-off, selected pump stages (resolution 0.01/0.1 °C)
Easy to read
Large LED temperature display for actual value and setpoint (resolution 0.1 °C)
Temperature Control
Precise
PID Temperature control with drift compensation and adjustable control parameters, temperature stability ±0.01…±0.02 °C
Highest measuring accuracy
‘Absolute Temperature Calibration’ for manual compensation of a temperature difference, 1-point calibration
Operation
Clearly structured
Comfortable, splash-proof keypad for setpoint adjustment, high/low temperatures, timer and shaking frequeny (SW models)
Technical Features
Serial connection
RS232 interface for PC connection, e.g. for data communication and recording of measured values
Warning & Safety Functions
Early warning system for high/low temperature limits
Maximum safety for applications, optical and audible alarm, convertible to automated cut-off function
Only for non-flammable bath fluids
Classification I (NFL) according to DIN 12876-1
Water Baths Recirculating Heating Chillers Coolers | |
|---|---|
| Heating Capacity (Baths) | 2000 Watts |
| Voltage (Life Science) | 100-120 VAC Only Voltage (Life Science) 60 Hz |
| Type (Chillers/Baths) | Shaking Water Bath |
| Special Features (Chillers/Baths) | Pump Included, Temperature Controller |
| Max Temp (Chillers/Baths) | 100 C |
| Min Temp (Chillers/Baths) | 20 C |
| Reservoir Capacity (Baths) | 20 L Reservoir Capacity (Baths) 8-20 L |
Product General Attributes | |
| Unique Features | Shaking Water Bath (20-200 RPM with 15 mm stroke). Bath cover optionally available |
| Interfaces I/O | RS-485 |
| Product Weight | 23 KILOS (50.71 LBS) |
| HTS/Schedule B Number | 8419.19.0060 |
| ECCN Number | EAR99 |
| Country of Origin | Germany |
You must be logged in to post a review.
Manuals/Guides
| Weight | 23 lbs |
|---|
