Keithley 2380-500-15 – Programmable DC Electronic Load (500V/15A/200W)
25 people are viewing this product right now
$3,290.00
Shipping calculated at checkout.
Estimated delivery:5 days
Keithley 2380-500-15 Programmable DC Electronic Load with GPIB, USB, And RS-232, 500V/15A/200W
- Maximum voltage: 500V
- Maximum current: 15A
- Input power: 200W
- Constant current (CC),constant voltage (CV), constant resistance (CR), and constant power (CP) operating modes
- LED simulated load test mode
- Readback voltage and current resolution down to 0.1mV/0.01mA
- Dynamic mode with cycle rate up to 25kHz
- Voltage rise and fall time measurement
- Current monitor function, List mode, Battery test mode
- Built-in GPIB,USB, and RS-232 interfaces
Guarantee Safe and Secure Payment Checkout
Description
Keithley 2380-500-15
- Maximum voltage: 500V
- Maximum current: 15A
- Input power: 200W
- Constant current (CC),constant voltage (CV), constant resistance (CR), and constant power (CP) operating modes
- LED simulated load test mode
Programmable DC Electronic Load (500V/15A/200W)
Series 2380 programmable DC Electronic Loads are single output, standalone loads with 200W, 250W and 750W models. Multiple operation modes with up to 25 kHz of dynamic cycling, superior voltage/current resolution and readback accuracy together with multiple interface choices make the Series 2380 ideal for testing a power source in your bench.
Multiple Operating Modes
These DC electronic loads can operate in constant current (CC), constant voltage (CV), constant resistance (CR), or constant power (CP) mode. They can also be configured to provide a dynamically changing load to the DC source with load switching times as fast as 25kHz. Versatile internal, external, and remote triggering options allow synchronizing the dynamic load behavior with other events.
Comprehensive Protection
Protection functions built into Series 2380 DC electronic loads ensure the reliability and safety of all tests. These functions include over temperature protection (OTP), over voltage protection (OVP), over current protection (OCP), over power protection (OPP), and local/remote reverse voltage (LRV/RRV) protection. A power-on system self-test ensures the instrument is operating properly.
​
Full Complement of Settings and Controls

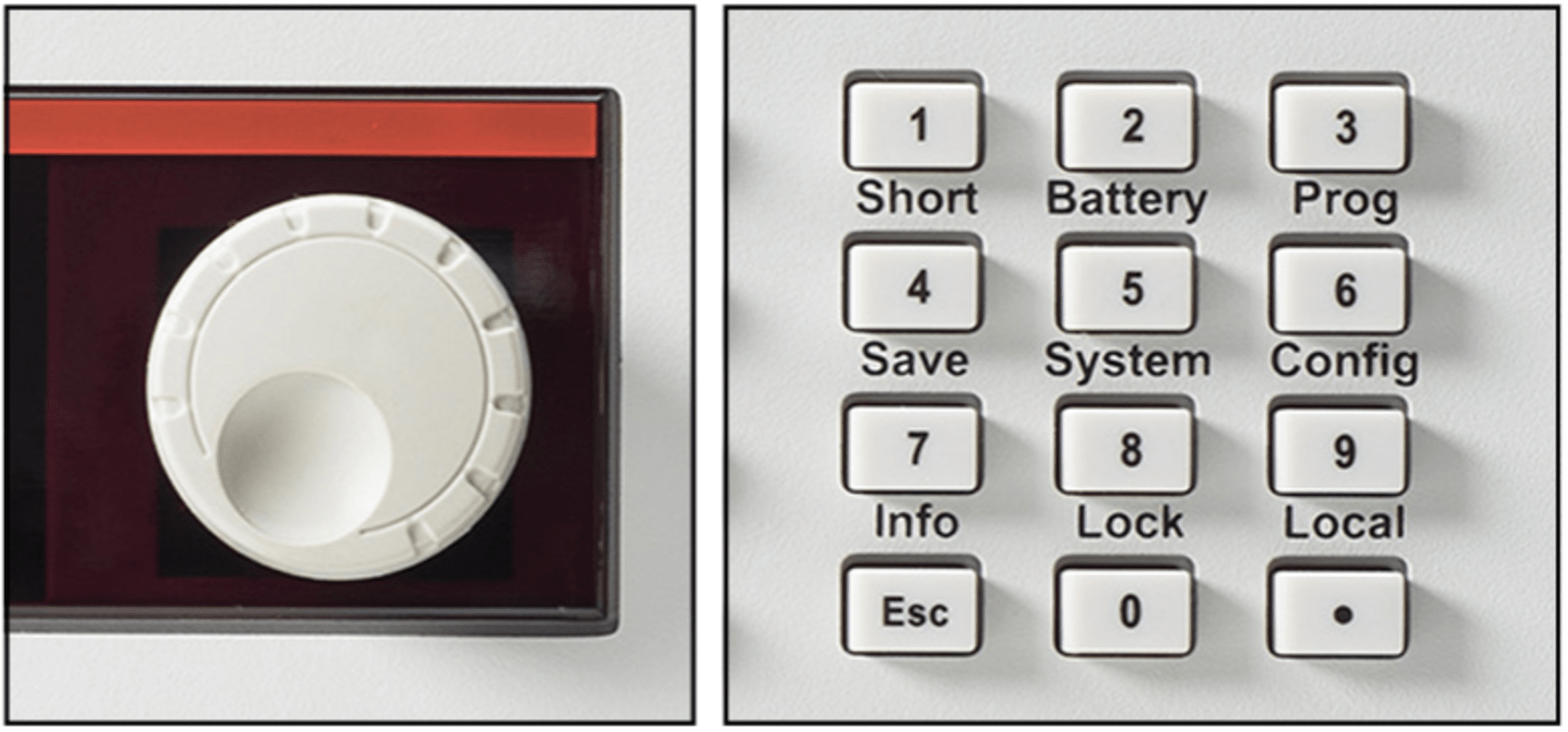

To maximize testing efficiency, you can save test parameters into any one of 100 memory locations for quick recall. All load parameters, such as voltage, current, slew rate, and dynamic mode time intervals, can be set using the front panel controls or programmed remotely. A numeric keypad and rotary knob allow entering settings quickly and setting parameters to their full resolution easily. USB-TMC, GPIB and RS-232 interfaces are built in for remote control and communication. A current monitor interface simplifies monitoring input current waveforms by providing a connection for an oscilloscope.
Power Supplies/Electronic Loads Template | |
|---|---|
| Watts | 200 Watts |
| Max Current | 15 A |
| Max Voltage | 500 V |
| Min Current | 0 A |
| Min Voltage | 0 V |
| Programable | Yes |
| Triggering | Yes |
| Battery Test | Yes |
| Remote Sensing | Yes |
Product General Attributes | |
| Warranty | 3 YEARS |
| Interfaces I/O | GPIB, RS-232, USB |
| Storage | Internal Memory |
| Product Weight | 4.56 KILOS (10.05 LBS) |
| Product Height | 131.4 MM (5.17 IN) |
| Product Length | 482 MM (18.98 IN) |
| Product Width | 580 MM (22.83 IN) |
| Shipping Weight | 7 KILOS (15.43 LBS) |
You must be logged in to post a review.
| Weight | 4.56 lbs |
|---|---|
| Dimensions | 482 × 580 × 131.4 in |
