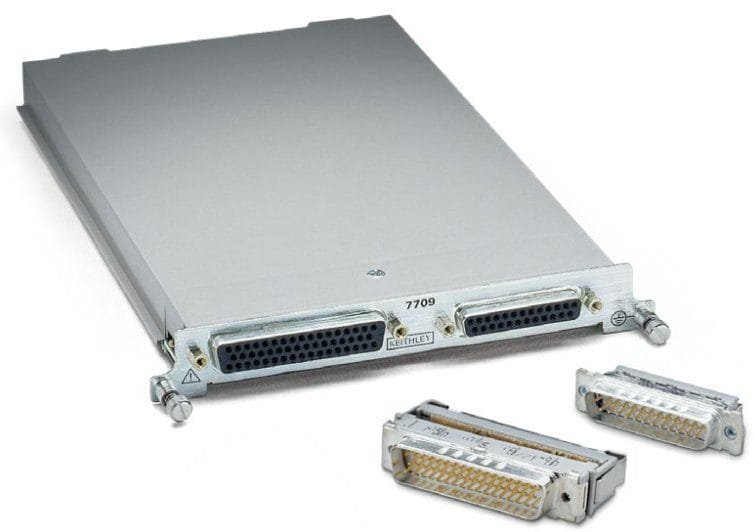

Keithley 7709 – 6×8 Matrix Module

• Automatic two- or four-wire connection to DMM
• 6 row × 8 column matrix
• Expandable to larger switch configurations by daisy-chaining or cascading multiple modules
• Two female D-sub connectors are standard for secure hook-up and quick teardown
• 300V, 1A capacity

The Keithley 7709 plug-in module is a two-pole, 6×8 matrix module. It can connect any combination of six differential channels of instrumentation to any combination of eight differential device under-test channels. The instrumentation can be AC and DC sources, internal or external meters, oscilloscopes, etc. This matrix configuration allows wide flexibility for complex test systems.
